Welded Unit Estate Rail

Verified by manufacturer 4 months ago

Alpha Rail Ltd Third party certifications:
  • ISO 14001 Environmental Management Systems

    Certificate type

  • ISO 9001 Quality Management

    Certificate type

Welded unit estate rails.

Jump to:
+44 (0)1623 750214 Website

Application

Suitable for:

  • Housing developments.
  • Parks.
  • Country estate.
  • Farmland.

Description

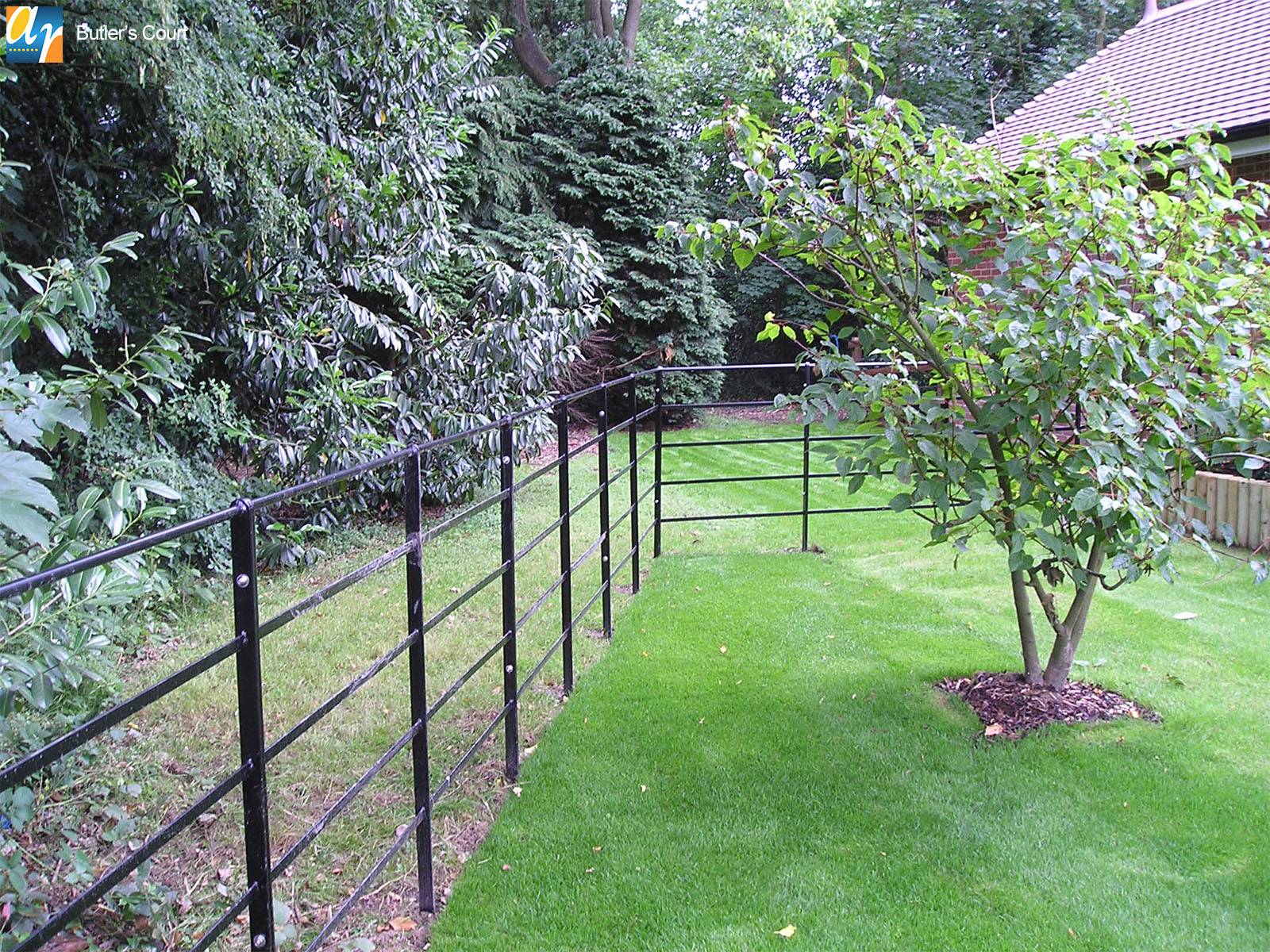

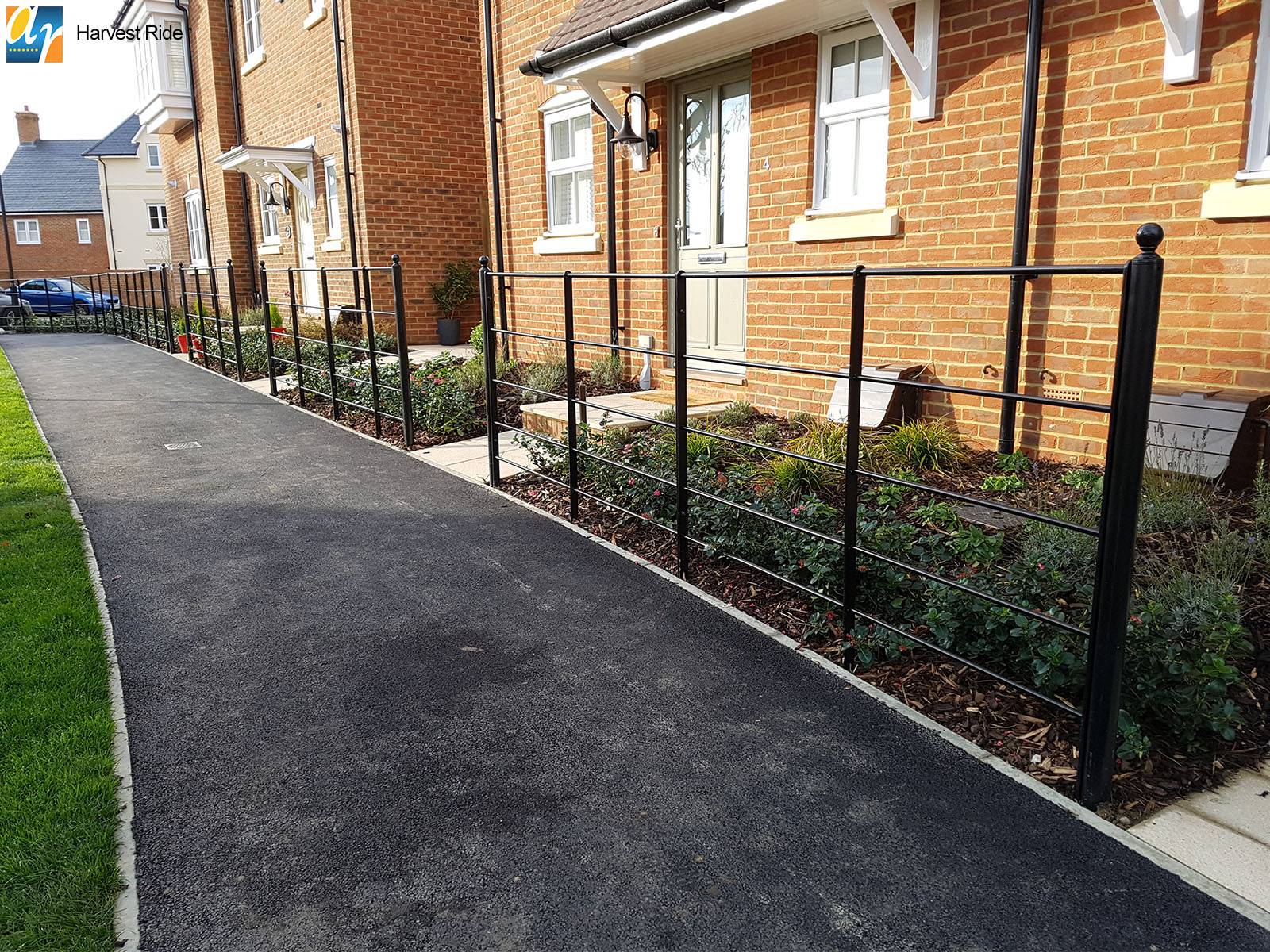

Estate Rail is commonly known as 'deer' or 'park' fencing, supplied as a welded unit which bolts together easily. It is a popular for use around large country estates and new build housing estates.


Features and benefits:

  • Comes as a welded unit.
  • Manufactured from steel.
  • Solid sections S275JR.
  • Supplied hot dipped galvanized.
  • Optional polyester powder-coating to a RAL colour.
  • Panel to post fixings included.
  • Manufactured and compliant with BS 1722 part 8.

General information

Color

Finish

Galvanized

Powder-coated

Material

Steel

Shape

Rectangle

Length

2000 mm

Width

Bespoke

Height

900 mm

1000 mm

1200 mm

Bespoke

Uniclass

Ss_25_14_63_11 Carbon steel continuous bar fencing systemsPrimary

CAWS

Q40/30 Proprietary fencing

Q40/430 Proprietary fencing

Specification data - Carbon steel continuous bar fencing systems

Standard

To BS 1722-8.

Designation

Guidance for specification option:

Consult manufacturer for details and insert requirements or omit.

Posts

Steel 40 x 10 mm RSF posts.

Post foundations

Ground fixed into concrete foundation.

Base plated fixing.

Rooted into pockets.

Manufacturer guidance

Consult manufacturer for details.

Rails

Top rail, Ø20 mm bar; mid rail, Ø16 mm bar.

Top rail, Ø20 mm bar; mid rail, 25 x 6 mm RSF.

System accessories

Not required.

Single leaf gate to suit.

Double-leaf gates to suit.

Panel height

900 mm.

1000 mm.

1200 mm.

Bespoke.

Guidance for specification option:

Consult manufacturer and insert requirements.

Panel length

2000 mm

Finish

Hot dip galvanized to BS EN ISO 1461.

Factory applied coating

Not required.

Polyester powder-coated.

Guidance for specification option:

  • Powder-coated to any RAL or BS colour.
  • Insert requirements.

Fixings

Panel to post fixings.

Sustainability data

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Material

Steel

Third party certifications

Third party certifications

ISO 14001 Environmental Management Systems

ISO 14001 Environmental Management Systems

ISO 14001:2015 Environmental Management System

ISO 9001 Quality Management

ISO 9001 Quality Management

ISO 9001:2015 Quality Management System
