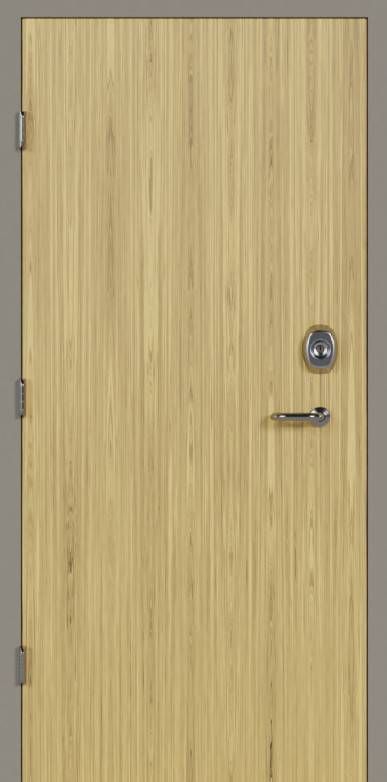

Wilton D10 (SR4) - Doorset

Verified by manufacturer 6 months ago

Wilton SR4 - Single Leaf

Stafford Bridge Doors Ltd Variant:
Third party certifications:
  • BRE Certificate

    BRE Certificate

    Certificate type

The Wilton SR4 doorset is developed to resist experienced attempts at forced entry of commercial premises.

Jump to:
BOS
 +44 (0)1234 826 316 Website

Application

Commercial premises.

Description

The doorset has been developed to resist experienced attempts at forced entry of commercial premises, with no regard to noise. LPCB test tools include: felling axe, sledge hammer, disc grinder, hole saw, hooligan bar and scissor jack. External doorsets are CE and UKCA marked to EN 14351-1. Internal non-fire-rated doorset third-party certified. LPS 1175 Issue 8 and FSC certified.


Wilton doorsets are fully certified with single and double outward opening leaves, or single inward opening, complete with fixed or removable overpanels and sidepanels.

General information

Color

Beige

Black

Blue

Brown

Cream

Show more

Finish

Primed

Painted

Stained

Other

Veneered

Show more

Material

Timber

Shape

Rectangle

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

One year

Uniclass

Pr_30_59_24_97 Wood doorsetsPrimary

CAWS

L20/410 Wood doorsets

L20/55 Doorsets

Specification data - Wood doorsets

Standard

To EN 14351-1, BS EN 1634-1.

Configuration

Single-leaf, single-action.

Manufacturer guidance

Inward or outward opening. Insert requirements.

Doorset size

1400 x 3200 mm (inward opening).

Guidance for specification option:

Maximum structural opening.

Minimum: 600 x 1468 mm.

1400 x 3200 mm (outward opening).

Guidance for specification option:

Maximum structural opening.

Minimum: 600 x 1000 mm.

Manufacturer guidance

Width x height. Consult technical literature for maximum allowable sizes, depending on configuration.

Performance

-

Acoustic performance

To BS EN ISO 10140-2: 2010 sound reduction in Rw 35dB.

To BS EN ISO 10140-2: 2010 sound reduction in Rw 40dB.

Intruder resistance

-

Minimum requirement

To LPS 1175, SR4. Secured by Design certification.

Application

Both sides (hinge side – outward opening / non-hinge side – inward opening).

Conformity

All security testing was carried out by BRE to LPS 1175.

Bullet resistance

-

Manufacturer guidance

BS EN 1522: FB1 to FB7 available for certain configurations. Please contact Stafford Bridge for further details.

Explosion resistance

-

Blast duration

-

Manufacturer guidance

'People In Protected Spaces' C25 available for certain configurations. Please contact Stafford Bridge for further details.

Frame

-

Material

Solid hardwood.

Species

-

Manufacturer guidance

  • If painted, Utile hardwood is used as standard.
  • If veneered finished is specified, match species to the veneer type.
  • If FD30 Fire Rating, Ash Hardwood can be used but cannot if FD60 fire rating.
  • If any fire rating, Beach Hardwood cannot be used.

Appearance class

-

Manufacturer guidance

Contact Stafford bridge for further information if required.


Threshold

No threshold.

6 mm Stainless steel 304/ 316 soleplate (threshold).

Exitex CDT100 low level aluminium threshold on top of the 6mm stainless steel Soleplate only (threshold).

6 mm Stainless steel 304/ 316 soleplate with 15 mm upstand (threshold).

Perimeter seals or inserts

Acoustic seal.

Guidance for specification option:

Seals to be specific to type of acoustic rating specified.

Weather seals.

Guidance for specification option:

If external.

Fire intumescent seals.

Guidance for specification option:

If fire rated.

Finish

Full paint finish.

Primed ready for site finish.

Lacquered.

Factory stain and lacquered.

Colour

-

Manufacturer guidance

Any BS colour code or RAL colour available.

External

-

Manufacturer guidance

Any BS colour code or RAL colour available. Insert requirements.

Internal

-

Manufacturer guidance

Any BS colour code or RAL colour available. Insert requirements.

Installation fasteners

M10 x 100 Coach screws.

Guidance for specification option:

Fixing into timber.


M10 x 100 Hex head set screws.

Guidance for specification option:

Fixing into steel.


Hilti HRD-UGS 14x140/70 U Plastic frame anchor.

Guidance for specification option:

Fixing into concrete, brick, or block work.

Frame accessories

Door contacts.

Door leaf

-

Thickness

Minimum 56 mm.

Guidance for specification option:

Non-fire rated Doors

Core

Solid hardwood.

Appearance class

-

Manufacturer guidance

Contact Stafford bridge for further information if required.

Facings

Formica laminated – Internal – MDF sheets under laminate.

Formica laminated – External – Ply sheets under laminate.

Acrovyn laminated – Internal – MDF sheets under laminate.

Acrovyn laminated – External – MDF sheets under laminate.

Hardwood veneered – Internal – MDF sheets under Veneer.

Hardwood veneered – External – Ply sheets under Veneer.

If painted and internal – MDF sheets to both faces of door leaf.

If painted and external – Ply sheets to both faces of door leaf.

Cut

Crown cut veneer.

Quarter cut veneer.

Lippings

Painted.

Veneered.

Laminated.

Manufacturer guidance

Non-Fire rated:

  • Painted: 8 mm Hardwood Lipping’s
  • Veneered: 8 mm Exposed Hardwood lipping all round, species to be specified to match veneer and/or stain.
  • Laminated: 8 mm Hardwood Lipping, Species to be determined by customer.

Perimeter seals

Acoustic seal.

Guidance for specification option:

Seals to be specific to type of acoustic rating specified.

Weather seals.

Guidance for specification option:

If external.

Fire intumescent seals.

Guidance for specification option:

If fire rated.

Finish

Factory stain.

Full paint finish.

Laminated.

Primed ready for site finish.

Sealed.

Veneered.

Manufacturer guidance

Doors can be supplied in a variety of finishes to match existing or other new doors on a project, including full gloss paint finish to BS or RAL colour specification, veneered or laminated finishes are available with a variety of staining options.

Colour

-

External

-

Manufacturer guidance

Any BS colour code or RAL colour available. Insert requirements.

Internal

-

Manufacturer guidance

Any BS colour code or RAL colour available. Insert requirements.

Glazing

-

Type

Surelock McGill vision panels with a clear vision of 170 x 370 mm. Minimum to EN 356 Class P8B.

Guidance for specification option:

  • Painted steel beading as standard.
  • Optional to have hardwood cloaking to match door leaf finish (if veneered), this reduces clear vision to 150 x 350 mm.

None.

Manufacturer guidance

Options for either a single or double vision panel configurations per leaf for non-fire rated doors. Please note that vision panels are not allowed on fire-rated doors.

Manifestation

Non-fire rated vision panels are unmarked.
Fire rated vision panels are only marked for Fire resistance.

Beading

-

Type

External.

Internal.

Hardwood cloaked.

Steel beading (manufacturer's standard).

Material

Steel.

Hardwood.

Guidance for specification option:

If cloaked, then will be hardwood over the steel beading to match the door leaf finish.


Fixing

Manufacturers standard (steel beading) machine screws.

Guidance for specification option:

If cloaked, then this will be fixed to the vision panel using machine screws in a brass screw cup.

Door accessories

Door contacts

Guidance for specification option:

Surface or concealed.

Fabric alarm to the inside of the door leaf.

Hardware

Access control.

Cable conduits.

Cable loops.

Closers.

Cylinder guards.

Door Actuators

Door selectors.

Door stays.

Drop seals.

Guidance for specification option:

Enhance functionality with optional drop seals for improved sound insulation and environmental control.

Frame head drips.

Handles.

Hinges.

Intumescent strips (if fire rated).

Kick plates.

Guidance for specification option:

Incorporate kickplates to protect the lower part of the door from wear and tear, adding durability to the doorset.

Locking system.

Guidance for specification option:

Choose from a selection of single-point or multi-point locking systems provided by Surelock McGill Ltd. Refer to full certification for complete approved locking systems listed on Redbook live.

Meeting stile T-bars.

Spy holes.

Vision panels.

Weather boards.

Architraves

-

Material

MDF.

Guidance for specification option:

If frame is painted and internal, MDF.

Hardwood.

Guidance for specification option:

If frame is painted and external, Hardwood.


To match frame.

Guidance for specification option:

If frame is exposed hardwood with lacquer, and internal or external, species of architrave to match frame

Wood appearance class

-

Manufacturer guidance

Contact Stafford bridge for further information if required.


Finish

Primed ready for site finish.

Sealed.

Factory stain.

Full paint finish.

Colour

-

External

-

Manufacturer guidance

Any BS colour code or RAL colour available. Insert requirements.

Internal

-

Manufacturer guidance

Any BS colour code or RAL colour available. Insert requirements.

Accessories

Over panel, fixed.

Side panel, fixed.

Over panel, removable.

Side panel, removable.

Manufacturer guidance

Contact Stafford bridge for further information if required.


Sustainability data

Contains Red List materials

No

Country of product manufacture

United Kingdom

Material

Timber

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
 -

2

IFC
 -

2

Third party certifications

BRE Certificate

BRE Certificate

Wilton Doorset LPS 1175 Certificate
