Window Acoustic Trickle Ventilator Sonovent
Verified by manufacturer 2 months ago
Sonovent® XSmall
Sonovent® XSmall
Self-regulating flap ventilator with a superior sound absorption.
Application

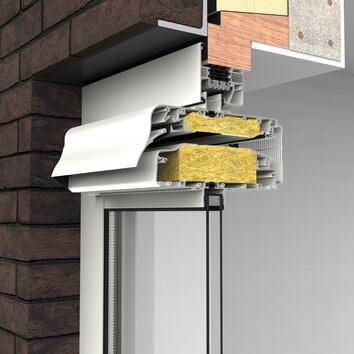

- Glazed in, at transom or roof installations.
- Integrated into curtain walls (Sonovent®).
Description

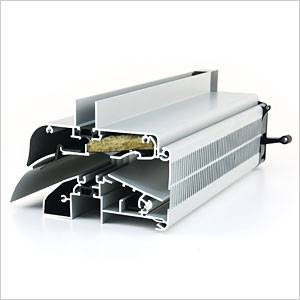

Standard Sonovent® and Sonovent® Compact are self-regulating acoustic flap ventilators with a superior air sound insulation.
Renson® developed the Sonovent range to meet with two aspects of living comfort: physical comfort, providing fresh and healthy air without draughts and acoustic comfort, providing up to 48 dB sound reduction.
Features and benefits:
- Self-regulating - ensures the supply of fresh and healthy air without draughts.
- Sound absorption - various sound reduction levels (depending on the type).
- Thermally broken - no cold air can transfer from outside to inside.
- The perforated inside profile acts as an insect mesh.
- Sonovent has four different air slot possibilities (10, 15, 20 or 25 mm).
- Sonovent Compact has three different air slot possibilities (10, 13 or 15 mm).
General information
Color | White Black Other |
Finish | Powder-coated |
Material | Aluminium PVC PVC-U Mineral wool |
Shape | Other |
Length | 1000 mm 2000 mm 2500 mm |
Width | 145 mm 165 mm 205 mm 245 mm 285 mm |
Height | 75 mm 95 mm 105 mm 155 mm |
Uniclass | |
CAWS | L10/400 Composite windows L20/430 Wood doorsets L20/330 Wood door frames L10/33 Proprietary windows L10/31 PVC-U windows L10/30 PVC-U windows L10/25 Aluminium windows L10/20 Steel windows L10/15 Wood windows L10/10 Wood windows L10/650 Metal louvres L10/390 Proprietary windows L10/350 PVC-U windows L10/330 Aluminium windows L10/310 Steel windows L10/210 Wood windows H11/110 Curtain walling L20/52 Wood door frames |
Product range |
Specification data - Overhead ventilators
Installation type | Glazed-in.At transom.Roof installtion.Guidance for specification option:
|
Thermal performance | Thermally broken. |
Acoustic performance | 31 up to 35 dB.Guidance for specification option:
Manufacturer guidanceSound reduction Dn,e,w (C;Ctr) in open position. |
Watertightness | Up to 650 Pa (closed position). |
Wind resistance (minimum) | Guidance for specification option: Consult manufacturer for details and insert requirements. |
Ventilation rate (minimum) | 14.1–25.8 l/s/m at 2 Pa.Guidance for specification option: 28.0 l/s/m (roof installation). |
Air slot | 10 mm.15 mm.20 mm.25 mm. |
Design aperture | |
Height | 105 mm (box height). |
Depth | 165 mm. |
Length | Guidance for specification option: Insert requirements.
|
Finish | Polyester powder coating. |
Colour | RAL colour.Guidance for specification option:
|
Operation | Handle.Cord.Rod.Motor. |
Accessories | Self-regulating ventilation flap. |
U-value | 2.8 W/m²K. |
Air leakage | <15% (in closed position). |
Glass thickness | 20 mm. 24 mm. 28 mm. 32 mm. 36 mm. |
Sustainability data
Material | Aluminium PVC PVC-U Mineral wool |
