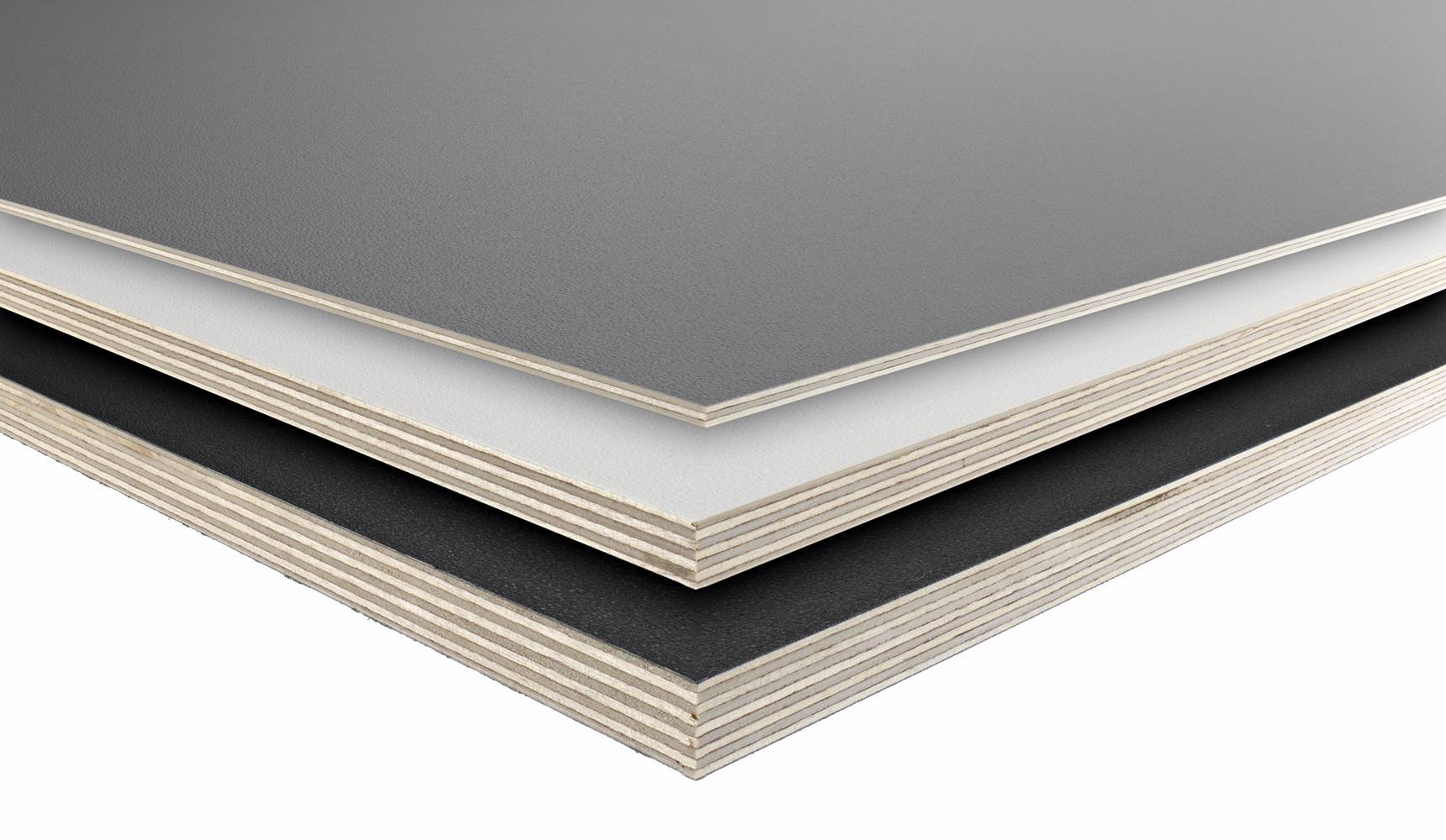

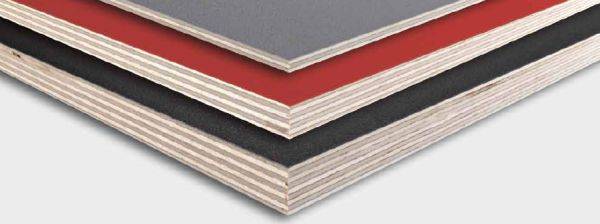

WISA®-Multiwall - Elastic lining panel

Name: WISA®-Multiwall - Elastic lining panel
Brand: UPM Plywood
SKU: sHbJ6XGmTEoCR2fpF9GApa

Verified by manufacturer 21 days ago

6.5 mm thick

High quality and elastic lining panel for end uses where a good looking surface material with high resistance is needed.

Jump to:

BOS

+44(0)20 3530 4433 Website

Application

Developed for sidewalls of vehicles such as horse trailers and linings of vans but also shop fittings and interior linings.
Ideal decorative material for the varied needs of the transport and construction industries.

Description

Polypropylene overlay coated plywood wall panel for interior and exterior use. Suitable for applications where a good looking and wear resistant wall finish is needed, e.g. external cladding, shop fitting.

Features and benefits:

Chemical resistance.
Decorative plastic coated panel.
Easy to clean with water and detergent.
Wear resistant, crack resistant surface.
Plies are bonded using a phenolic resin, cross-bonded, weather resistant glue to EN 314-2, Class 3 'Exterior'. Coating is bonded using adhesive to EN 204, Class 4.
For strength values see 'Handbook of Finnish plywood' on manufacturer's website for details.
UV-resistance, coating supplier’s guarantee for colour resistance, colour stability (6–7 according to EN ISO 105-B02).
Shapes, profiles and drillings according to specifier’s drawings available on request.
Forest Stewardship Council (FSC) certified.

General information

Color	Red Grey Black White Green Manufacturer guidance Same both faces. Other colours available subject to a minimum order size.
Finish	Textured
Material	Plywood
Shape	Rectangle
Length	1200 mm 1220 mm 1500 mm 1525 mm
Width	2440 mm 2500 mm 3050 mm 3660 mm
Height	6.5 mm 9 mm 12 mm 15 mm 18 mm 21 mm 24 mm 27 mm Show more

Uniclass	Pr_25_71_97_85 Specialist veneer plywoodsPrimary
CAWS	K11/40 Plywood roof decking K11/815 Plywood

Product range	Coated smooth plywood

Specification data - Specialist veneer plywoods

Standards	To EN 314-2.
Material	-
Type	Birch plywood.
Face grain direction	Perpendicular to long edges of boards.
Service class	To BS EN 636, (EN 636-3).
Use class	To BS EN 335, use class 1. To BS EN 335, use class 2. To BS EN 335, use class 3.
Bonding quality	To BS EN 314-2, Class 3.
VOC emissions	E1 low formaldehyde emission class.
Number of plies	5.
Nominal thickness	6.5 mm.
Sheet size	1200 x 2400 mm. 1200 x 2440 mm. 1200 x 2500 mm. 1200 x 3000 mm. 1200 x 3050 mm. 1200 x 3600 mm. 1220 x 2400 mm. 1220 x 2440 mm. 1220 x 2500 mm. 1220 x 3000 mm. 1220 x 3050 mm. 1220 x 3600 mm. 1250 x 2400 mm. 1250 x 2440 mm. 1250 x 2500 mm. 1250 x 3000 mm. 1250 x 3050 mm. 1250 x 3600 mm. 1500 x 2400 mm. 1500 x 2440 mm. 1500 x 2500 mm. 1500 x 3000 mm. 1500 x 3050 mm. 1500 x 3600 mm. 1525 x 2400 mm. 1525 x 2440 mm. 1525 x 2500 mm. 1525 x 3000 mm. 1525 x 3050 mm. 1525 x 3600 mm. Manufacturer guidance Other dimensions on request.
Edges	Square.
Finish as delivered	-
Worked finish	Slightly embossed, about 2 mm polypropylene coating with lacquered surface. Manufacturer guidance Surface finish. Same both faces.

Colour	Yellow. Brown. Light Brown. Red (RAL 3002). Blue (RAL 5003). Grey (RAL 7001). Black (RAL 9005). White (RAL 9010). Moss Green (RAL 6005). Show more Manufacturer guidance Same both faces. Other colours available subject to a minimum order size.
UV resistance	Colour stability 6–7.
Wear resistance	Taber Abraser 1800 r.
Weight	4.8 kg/m².

Sustainability data

Contains Red List materials	No
Country of material origin	Estonia
Country of product manufacture	Estonia
Embodied carbon A1-A3 (production stage) as defined in BS EN 15804	-792 kg CO₂ eq/kg Self declared
Recyclability	Re-use or Biomass
Recycled content As defined in clause 7.8 of BS EN ISO 14021	0 %

BIM objects

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform	Compatible	Version
Revit	Revit 2016	2
IFC	IFC2X3	1
