WISA®-Paintply - Ready-to-paint Plywood Panel

Verified by manufacturer 21 days ago

12 mm thick

UPM Plywood Variant:
Third party certifications:
  • EPD

    EPD

    Certificate type

  • Chain of Custody Certification

    Chain of Custody Certification

    Certificate type

  • DoP

    DoP

    Certificate type

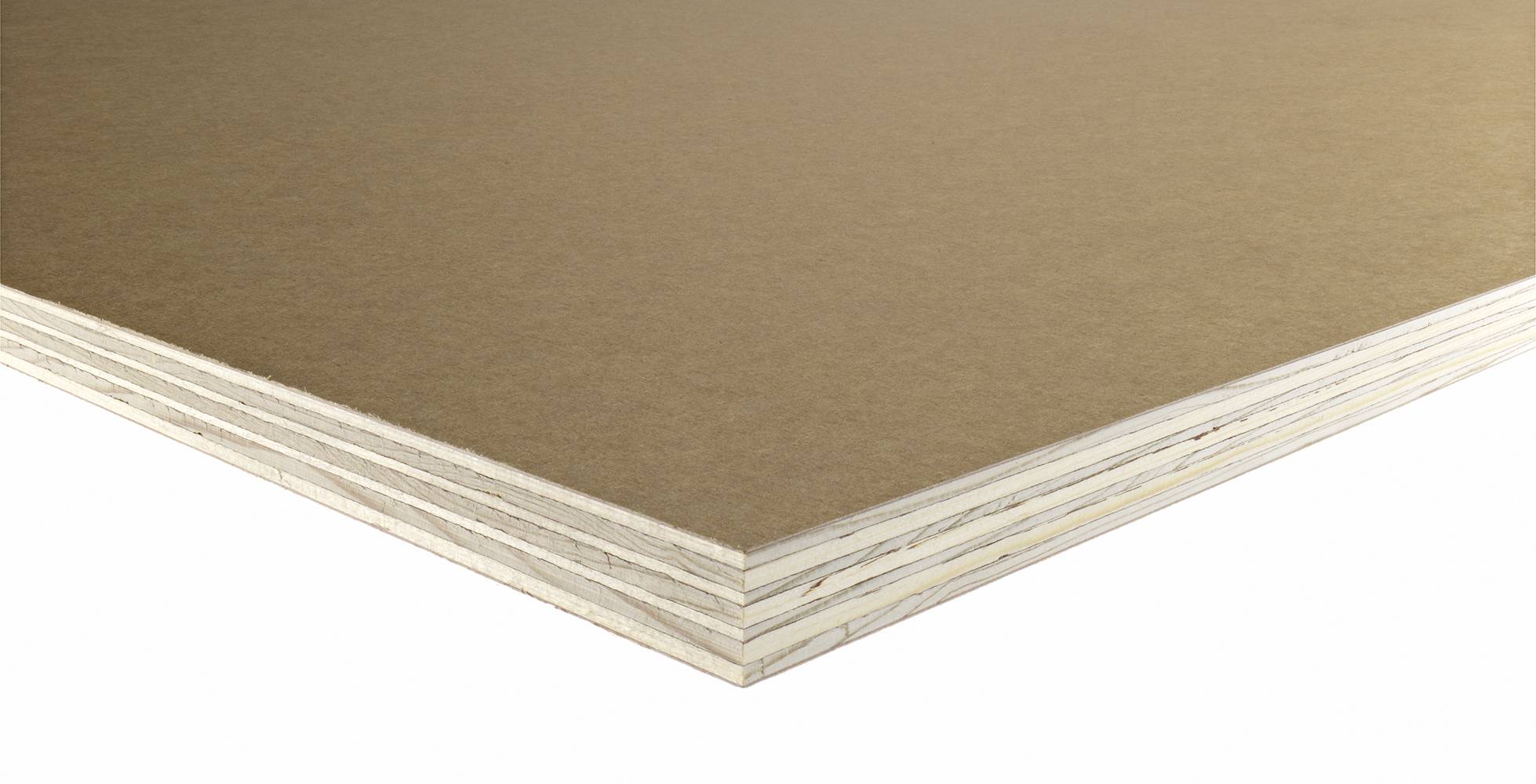

Ready-to-paint smooth plywood made from Nordic spruce.

Jump to:
BOS
+44(0)20 3530 4433 Website

Application

Suitable for various painted applications in both indoor and outdoor use.

Description

Spruce veneer plywood with a phenolic impregnated paper overlay, suitable for painting. Most paints are compatible with the overlay, but confirmation should be obtained from the paint manufacturer.


Features and benefits:

  • Easy to work with.
  • Ready-to-paint face.
  • Dimensionally stable.
  • Light weight and easy to handle.
  • Edge sealing using a transparent, moisture resistant, acrylic resin is available on request.
  • Plies are bonded using a phenolic resin, cross-bonded, weather resistant glue to EN 314-2, Class 3 'Exterior'.
  • For structural properties see 'Handbook of Finnish plywood' on manufacturer's website for details.
  • Shapes, profiles and drillings can be machined to specifier's drawings.
  • Forest Stewardship Council (FSC) and Programme for the Endorsement of Forest Certification (PEFC) certified.


Durability (unpainted):


  • Suitable for use in humid conditions (see EN 636-2).
  • Service class 2 to EN 1995-1-1.
  • Biological hazard class 2 to EN 335-3.

General information

Color

Brown

Finish

Smooth

Material

Plywood

Shape

Rectangle

Length

2440 mm

2500 mm

Width

1220 mm

1250 mm

Height

12 mm

15 mm

18 mm

21 mm

24 mm

Uniclass

Pr_25_71_97_86 Structural veneer plywoodsPrimary

CAWS

G20/15 Plywood

G20/310 Structural plywood

G20/311 Non-structural plywood

H20/150 Sheet cladding (attached to metal support systems)

H20/155 Sheet cladding (attached to timber battens)

K11/40 Plywood roof decking

K11/815 Plywood

N10/160 Shelving systems

N10/30 Shelving systems

P20/240 Plywood

P20/40 Plywood

Product range

Coated smooth plywood

Specification data - Structural veneer plywoods

Standards

To EN 314-2, EN 13986.

Material

-

Type

Spruce plywood.

Face grain direction

Parallel to long edges of boards.

Service class

To BS EN 636, (EN 636-3).

Use class

To BS EN 335, use class 1.

To BS EN 335, use class 2.

To BS EN 335, use class 3.

Bonding quality

To BS EN 314-2, Class 3.

VOC emissions

E1 low formaldehyde emission class.

Sheet size

1220 x 2440 mm.

Nominal thickness

12 mm.

Guidance for specification option:

Weight: 6 kg/m².

Number of plies

5–9.

Guidance for specification option:

Dependent on thickness; consult manufacturer for details.

Edges

Square.

Finish as delivered

-

Surface finish

Phenolic impregnated paper overlay suitable for painting.

Reverse finish

Phenolic film moisture barrier.

Phenolic impregnated paper overlay.

Edge sealing

Required.

Not required.

Colour

Dark Brown.

Manufacturer guidance

Reverse side finish.

Sustainability data

Contains Red List materials

No

Country of material origin

Finland

Country of product manufacture

Finland

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

-702 kg CO₂ eq/kg

Recyclability

Re-use or Biomass

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

0 %

Third party certifications

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit

Revit 2016

2

IFC

IFC2X3

1

Third party certifications

EPD

EPD

Environmental Product Declaration S-P-04168

Chain of Custody Certification

Chain of Custody Certification

FSC Chain of Custody

DoP

DoP

Declaration of Conformity UPM024 WISA-spruce FR

Literature

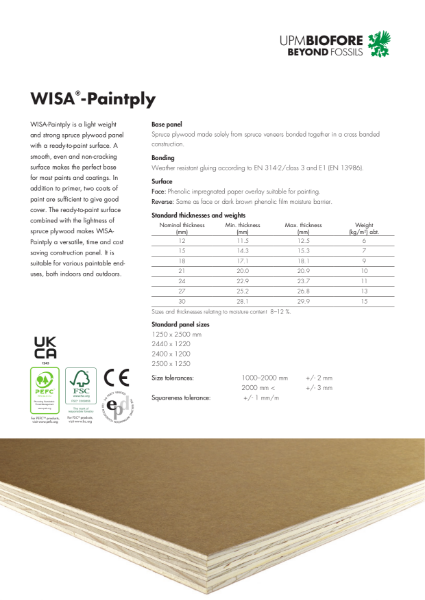

WISA-Paintply

WISA-Paintply
