95000BK

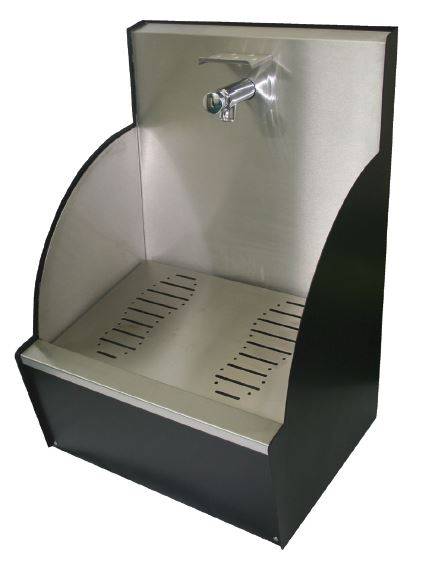

Wudu wash station allows ablution to be performed whilst you to stand comfortably.
Suitable for multi-faith facilities and places of worship.
Wudu wash station which supports the ritual washing of feet, arms, hands and face before prayer. It is simple to install as the unit is freestanding and simply requires a mains water feed and connection to wastewater drainage. The automatic tap helps to save water and the foot grate lifts for ease of cleaning.
Features and benefits:
Color | Black White |
Finish | Brushed Powder-coated |
Material | Stainless steel Steel |
Length | 450 mm |
Width | 510 mm |
Height | 760 mm |
Warranty description | Ten year |
Uniclass | |
CAWS | N13/346 Washing troughs |
Product range |
Form | Free standing. |
Stations | One. |
Materials | |
Body | Stainless steel type 1.4301 (304) to BS EN 10088-1. |
Finish and colour | Stainless steel, black. |
Size | 510 x 760 x 450 mm. |
Water supply, overflow and waste holes | |
Water supply | One tap hole in backplate at each user position. |
Overflow | Central outlet. |
Waste | Central outlet. |
Product Reference | 95000BK Guidance for specification option: Black. 95000WH Guidance for specification option: White. |
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
Platform | Compatible | Version |
---|---|---|
- | 1 | |
Revit 2016 | 2 |
