Wythenshawe Bench

Verified by manufacturer 27 days ago

Stainless steel frame

Broxap Street Furniture Variant:

A steel framed, Iroko timber slatted curved bench

Jump to:
BOS
+44 (0)1782 571700 Website

Application

Suitable for any external seating area.

Description

A curved bench with galvanised and polyester power-coated mild steel frame, armrests and hardwood Iroko timber slats. Alternative specification available on request.


Features and benefits:

  • Contemporary design.
  • The steel frame is available in a range of colours.
  • FSC treated softwood slats and stainless steel frame also available.
  • Available with or without armrests.
  • Can be made to bespoke dimensions.

General information

Color

Manufacturer guidance

Coating to a non standard BS/RAL colour is also available.

Finish

Galvanized

Matt

Satin

Powder-coated

Material

Stainless steel

Steel

Timber

Shape

Circle

Width

400 mm

Height

535 mm

Warranty description

One year

Uniclass

Pr_40_30_29_85 Street and site seatsPrimary

CAWS

Q50/33 Benches

Q50/220 Benches

Specification data - Street and site seats

Length

3.0 m external diameter.

Bespoke.

Guidance for specification option:

Bespoke dimensions are available. Consult manufacturer and insert requirements or refer to a drawing.

Base

Base plated.

Root fixed.

Material

Grade 304 stainless steel and iroko hardwood.

Grade 304 stainless steel and softwood.

Guidance for specification option:

FSC-C122338.

Grade 316 stainless steel and iroko hardwood.

Grade 316 stainless steel and softwood.

Guidance for specification option:

FSC-C122338.

Finish as delivered

240 grit matt satin polished.

Colours

None.

Accessories

None.

Without armrests.

With armrests.

Sustainability data

Country of product manufacture

United Kingdom

Material

Stainless steel

Steel

Timber

Manufacturing plant location

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

1

IFC
-

1

Literature

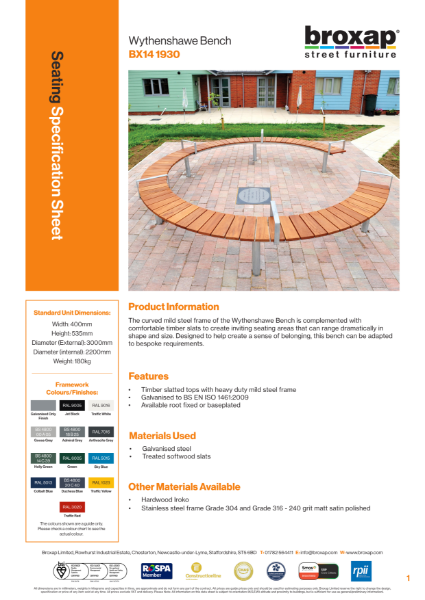

Wythenshawe Bench Specification Sheet

Wythenshawe Bench Specification Sheet

Broxap Street Furniture Showcase Brochure 2023

Broxap Street Furniture Showcase Brochure 2023
