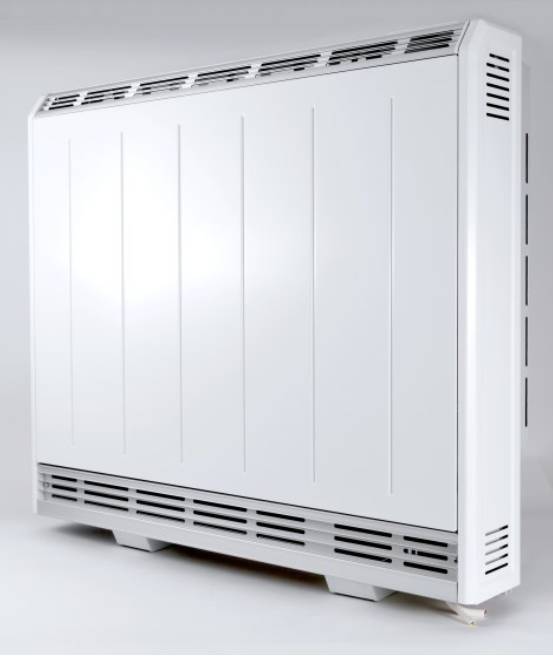

XLE Storage Heater Range
Verified by manufacturer 9 months ago
XLE050
XLE050
A range of slimline electric storage heaters.
Application
Suitable for modern replacement for older storage heaters.
Description
An advanced electric storage heater with a clean look and reliable performance. XLE storage heaters provide an upgraded and compliant replacement for older storage heaters.
Features and benefits:
- Complies with Lot 20 of ERP Directive.
- Programmable room temperatures with a seven-day timer.
- Efficient heating system with low running costs delivered by maximising the use of off-peak tariffs.
- Dynamically stores the right amount of energy to heat a room.
- Controllable electronic heat output to match user lifestyle.
- Fan assisted to quickly, quietly and more effectively distribute heat.
- Supplied with 40 mm feet for weight distribution when secured to wall. Two feet positions available.
- Slimline design that covers traditional storage heater fixing marks.
- Requires Energy Cell Packs to function Item: 047243 (included with purchase).
General information
Color | White |
Shape | Rectangle |
Width | 581 mm 703 mm 825 mm 947 mm 1069 mm |
Height | 749 mm |
Warranty description | Two year |
Uniclass | |
CAWS | T90/465 Radiators T90/465 Radiators |
Specification data - Thermal storage heaters
Third party certification | UKCA, CE and BEAB certified. |
Output | 500 W. |
Finish | White (RAL 9016) Traffic White. |
Controls | Digitally controlled, electronic thermostat. Guidance for specification option: Accurate to (±0.2°C). Setpoint range (7-26°C). Timer modes: 7 day programmable user timer, out all day, holiday. continuous heat modes: Setback. |
EnergySource | 4 Energy cell packs required. |
Safety features | Electronic overheat protection. Guidance for specification option: Additional electromechanical overheat protection. LVD and EMC compliance. |
StorageType | High-density bonded magnetite energy cells. Manufacturer guidance(Storage core). |
Battery back-up | CR2032 Lithium manganese dioxide 3V coin cell battery. Guidance for specification option: To backup real time clock. Battery life >5 years. |
Supply | 1/N/1/N/PE (peak and off peak) 230–240 V/ Hz. |
Width | 581 mm. |
Input | 1020 W. |
Storage | 7140 Wh. Guidance for specification option: With 340 W boost mode rating. Manufacturer guidanceCapacity (maximum). |
Ingress protection | IPX4. |
Sustainability data
Country of product manufacture | United Kingdom |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Literature
XLE Spec Sheet
