YewdaleDefiant® C20 Cassetted roller blind with sidewinder mechanism - Blind
Verified by manufacturer 4 months ago

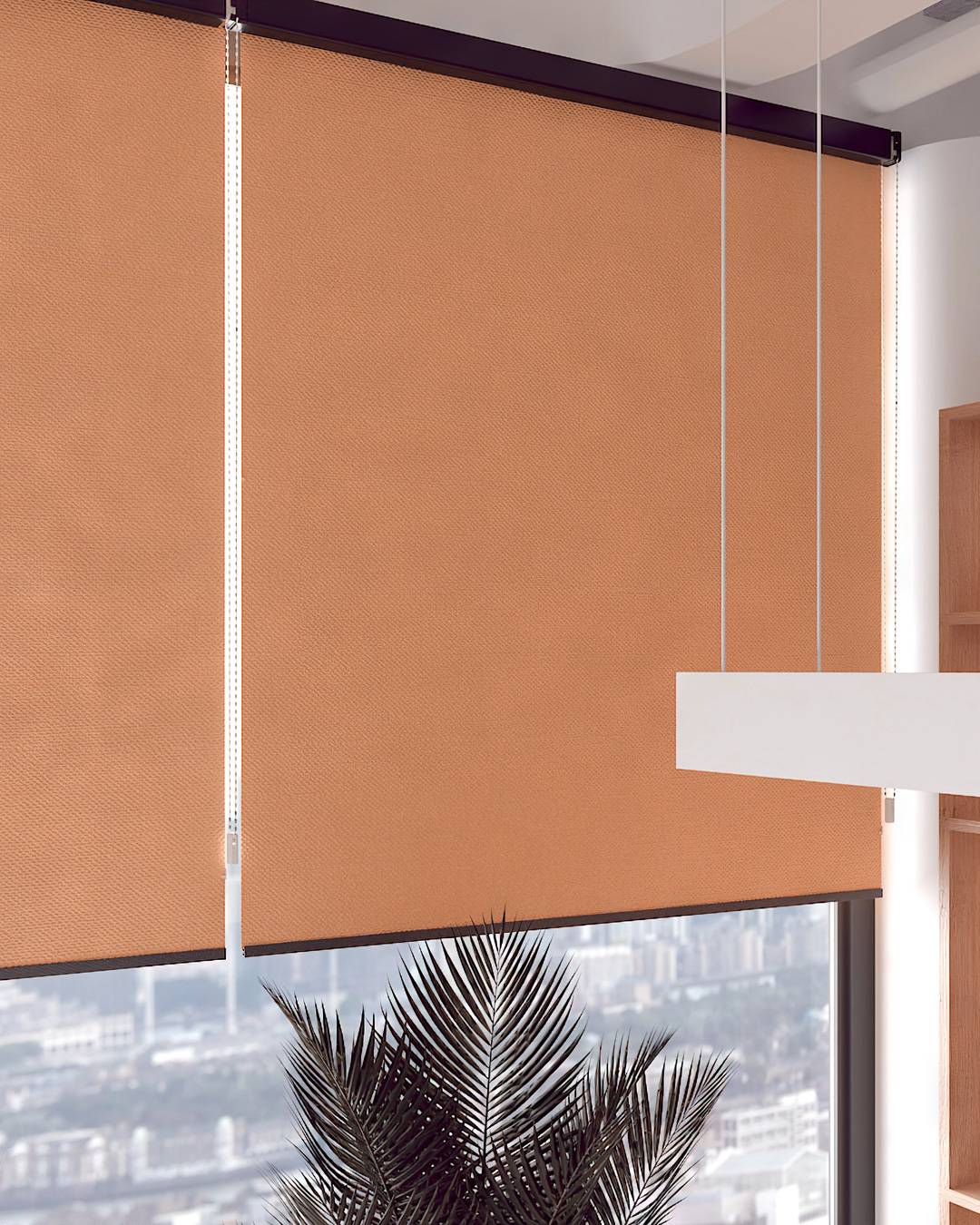

Cassetted blind with sidewinder.
Application
Can be applied to match any window size or fabric weight.
Description
PART NO *C20-60 *C20-90 *C20-120
Cassetted blind with slipstream sidewinder mechanism.
Features and benefits:

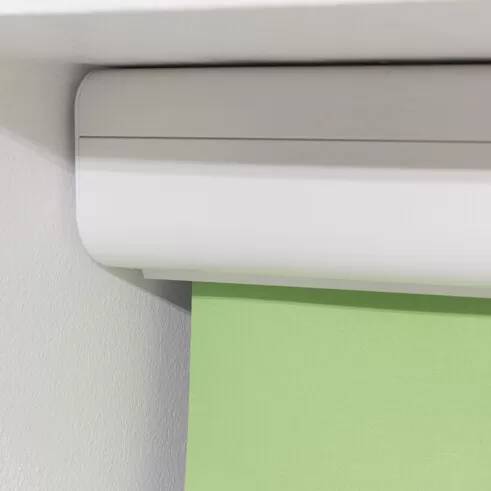

- Choose between square or rounded headbox.
- Slipstream sidewinder mechanism.
- Available in any RAL colour.
- All blinds come with an enclosed aluminium headbox as standard.
- The fabric is locked into a groove in the barrel and features an aluminium bottom bar.
- Flame retardant.
General information
Color | White Black Manufacturer guidanceAny RAL colour available |
Material | Aluminium PVC Polyester |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | Lifetime |
Uniclass | |
CAWS | N10/70 Blinds N10/240 Blinds |
Product range |
Specification data - Roller blinds
Dimensions (minimum width x depth) | 200 x 2150 mm.Guidance for specification option: C20-60 200 x 4250 mm.Guidance for specification option: C20-90 200 x 5750 mm.Guidance for specification option: C20-120 |
Headrail | |
Material | Aluminium. |
Colour | Black.White.Manufacturer guidanceAny RAL colour available |
Blinds | |
Material | PVC.Polyester.Manufacturer guidanceVarious available on request |
Finish | YewdaleDefiant Eden Daylight Fabric.YewdaleDefiant Eden Blackout Fabric.YewdaleDefiant Roe Fabric.YewdaleDefiant Dart Fabric.YewdaleDefiant Thames Fabric.YewdaleDefiant Roach.Guidance for specification option: Not available for vertical blinds |
Tube | |
Material | Aluminium. |
Diameter | 32 mm.45 mm.53 mm.70 mm. |
Operation | Manual, metal control chain. |
Accessories | Side-guide wire.Plastic/nickel plated brass chain.Round aluminium bottom bar.White plastic bottom bar. |
Product Reference | YewdaleDefiant® C20 Cassetted roller blind with sidewinder mechanism- 60mm YewdaleDefiant® C20 Cassetted roller blind with sidewinder mechanism- 90mm YewdaleDefiant® C20 Cassetted roller blind with sidewinder mechanism- 120mm |
Sustainability data
Country of product manufacture | United Kingdom |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 IFC | - | 1 |
 Revit | - | 1 |
