ZENiX / ONE-X - Smoke & Fire Protection Control System

Verified by manufacturer 21 days ago

Rf-Technologies

Unique, Bus-based Smoke & Fire Protection Control System, including Panels, Actuators, (integrated) Field Modules and bringing very substantial advantages to end customers, designers and installers.

Jump to:
+44 7939316006 Website

Application

Unique, Bus-based Smoke & Fire Protection Control System, including Panels, Actuators, (integrated) Field Modules and bringing very substantial advantages to end customers, designers and installers.


ZENiX / ONE-X Building applications:

  • Industrial, commercial & residential buildings.
  • Hospitals and care houses.
  • Data centres and battery plants.
  • Detention institutes.
  • Universities, colleges and schools

Description

Unique, Bus-based Smoke & Fire Protection Control System, including Panels, Actuators, (integrated) Field Modules and bringing very substantial advantages to end customers, designers and installers.

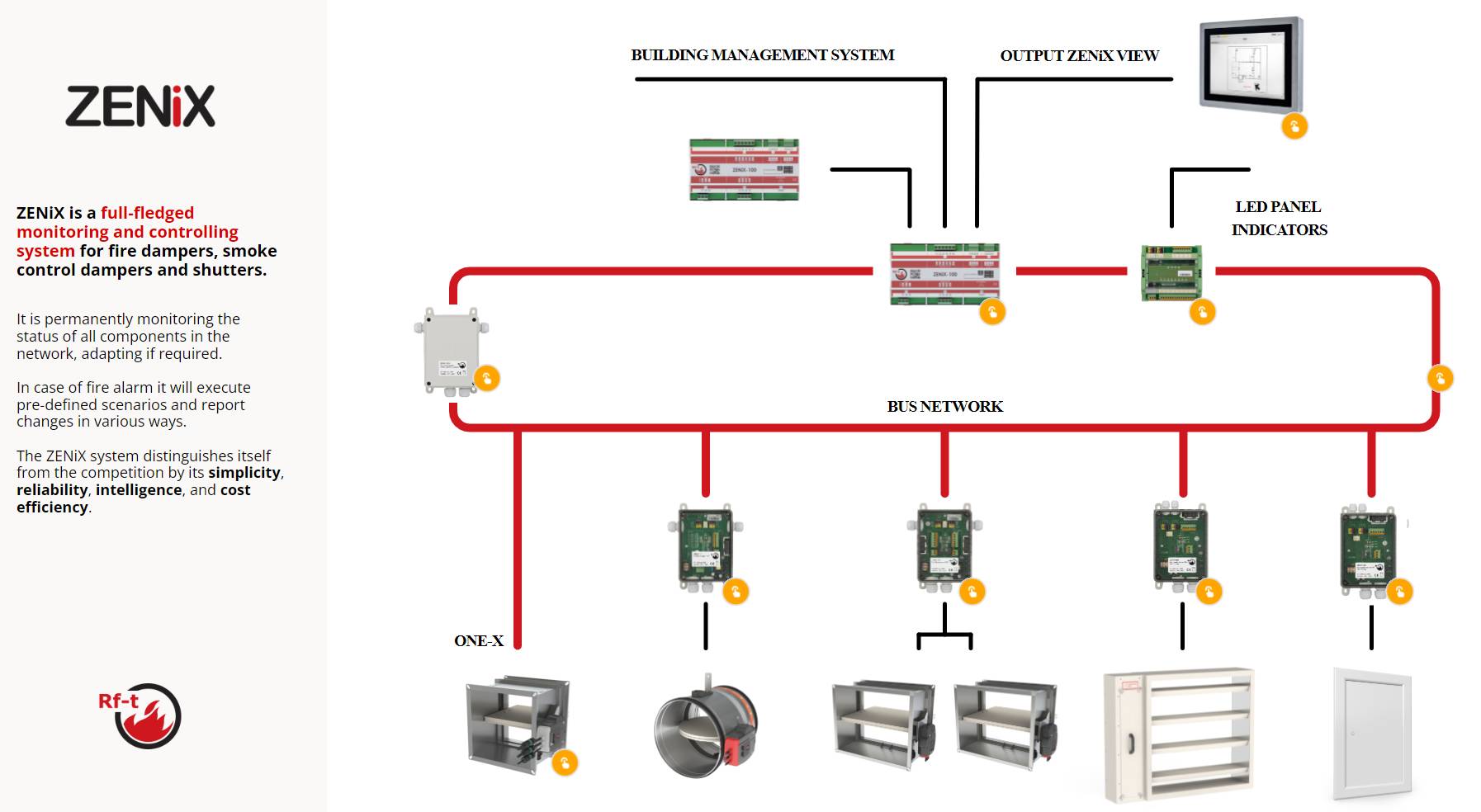

ZENiX / ONE-X Distinct Features (incl. specifications)

  • Network / bus-based controls system
  • Standalone operation or BMS driven
  • via BACnet or Modbus "bridge"
  • "Controlling" both fire and smoke control dampers
  • and related peripherals like fans, detectors, ...
  • Web based or PC based interface
  • "Near-Zero" susceptibility for EMI/EMC interference
  • without special cabling
  • 230V powered
  • controlling both 230 and 24V field units
  • Able to drive the biggest systems spanning several hundred dampers and peripherals over very long cable distances.
  • connecting different ZENiX controllers
  • "Easily" adaptable
  • both in configuration and in system size
  • Both for simple and complex fire and smoke scenarios
  • Configurable without programming skills
  • after ZENiX academy training
  • Unique setup and commissioning performance bringing very substantial installation, fault-finding and time-saving benefits over traditional control systems
  • Designed for monitoring mechanical, fuse based dampers (with positioning contacts)
  • Designed for use with Belimo motor range (24/ 230 V).
  • So fit to "control" most traditional UK and European fire damper brands
  • Designed for use with ONE motor range (24/ 230 V).
  • Designed for use with ONE-X.
  • Note for clarification:
  • ONE is a motor by Rf-Technologies.
  • ONE-X is a motor with an integrated control module, used in combination with the ZENiX controller.
  • ONE-X distinct product features & benefits
  • Integrated controls field module
  • Elimination of error prone cabling between actuator and tradition field modules
  • Complete actuator/field module delivery from production
  • Available for the full Rf-Technologies fire damper range

General information

Uniclass

Pr_75_50_02_53 Motor-driven damper actuatorsPrimary

CAWS

U90/443 Dampers, fire/ smoke

Specification data - Motor-driven damper actuators

Actuator type

Electric.

Action

Spring return.

Running time

Motor: (cabled): <75 seconds.
Motor: (battery 9 V): <85 seconds.
Spring, 7 Nm: <30 seconds.

Operation

Normally open.

Guidance for specification option:

When powered, the actuator moves the damper blade into its stand-by position. When the power is interrupted or when the temperature in the duct exceeds 72°C, the internal armed spring brings the damper blade back into its safety position.


The motor can be reset manually by using a standard 9 V battery.

Electrical supply

24 V a.c.

Guidance for specification option:

Nominal voltage: -10%/ +20%.

Power consumption: 0.28 W.

24 V d.c.

Guidance for specification option:

Nominal voltage: -10%/ +20%.

Power consumption: 0.28 W.

230 V.

Guidance for specification option:

Nominal voltage: ±15%.

Power consumption: 0.57 W.

Ancillaries

Unlocking button.
Blade position indicator.
Integrated communication module.
LED indicators.
Battery compartment.
Bus cables.

Manufacturer guidance

Consult manufacturer's literature for full component lists.

Noise

Motor: maximum 64 dB (A).
Spring: maximum 67 dB (A).

Ingress protection

IP54.
