Zoneworks Hive Emergency Lighting Controller
Verified by manufacturer 20 hours ago
RF emergency lighting controller/ system with dynamic self-managed meshing technology and capable of supporting 1000 fittings per controller and unlimited fittings per system.
Application
Applicable for emergency lighting system and management.
Description
Zoneworks Hive advanced emergency lighting system capable of supporting 1000 fittings per controller and unlimited fittings per system.

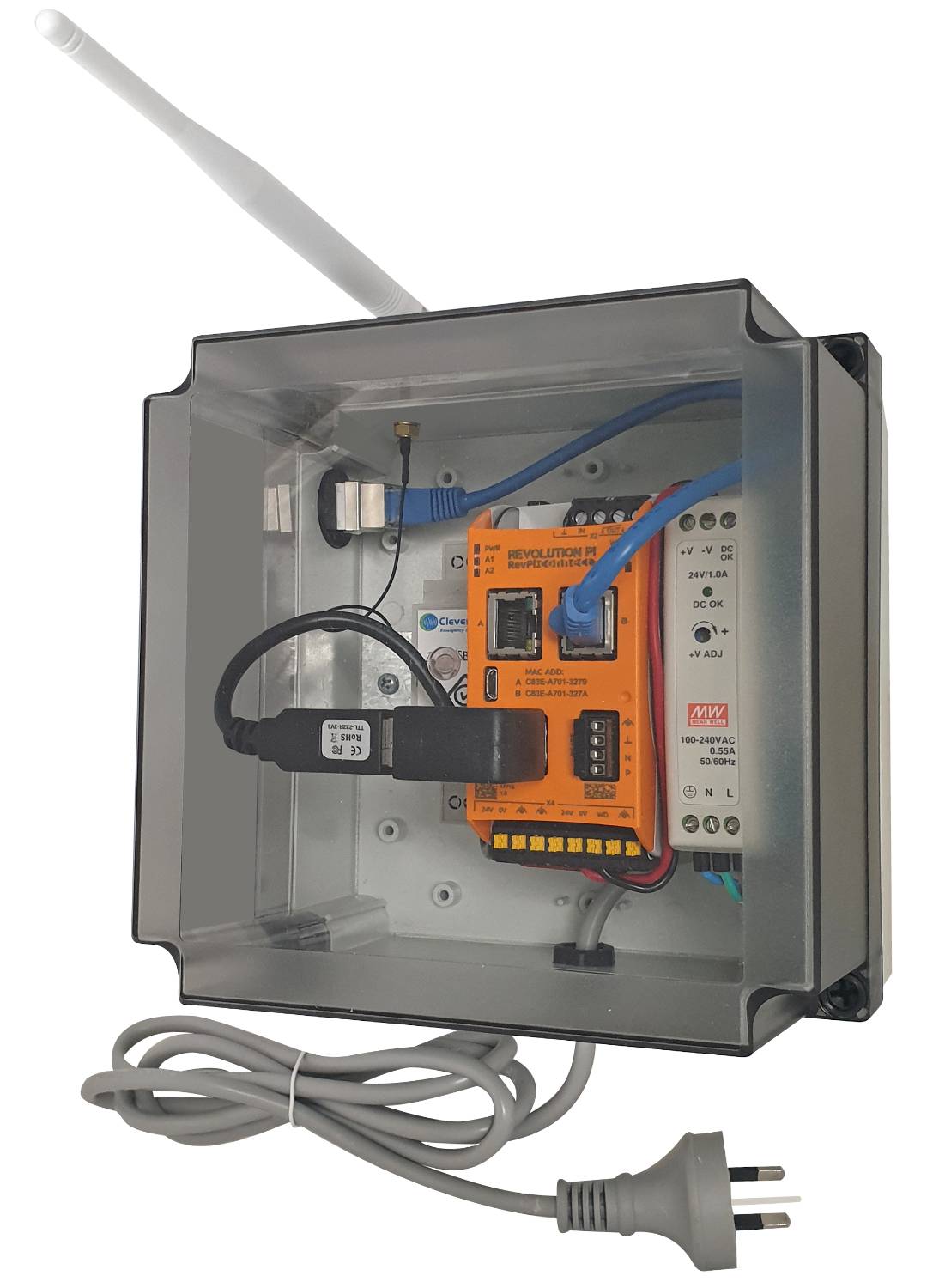

Zoneworks XT HIVE reduces the backbone hardware requirements to a single RF controller and adds dynamic self-managed meshing technology to make emergency lighting simpler, faster and easier than ever before. Over 4000 sites installed across Australia, New Zealand, and the UK.
Features and benefits:
- One single RF controller per 1000 fittings.
- Unlimited fittings per system.
- Powerful dynamic self-managed mesh radio network.
- Industry grade encryption and site security.
- High data throughput and performance.
- Less backbone = less cost.
Visit the link below for more information:
https://clevertronics.co.uk/solutions/zoneworks-xt-hive-system.
General information
Color | Clear Grey |
Finish | Other |
Material | Polycarbonate |
Shape | Rectangle |
Length | 180 mm |
Width | 180 mm |
Height | 150 mm |
Uniclass | |
CAWS | V90/550 Centrally supplied emergency luminaires V90/530 Self-contained emergency luminaires |
SKU Code | ZXTELC-HVG |
Specification data - Lighting remote controllers
Classification data | |
Signal transmission | RF (2.40–248 GHz). |
Functions | Real-time analytics and response. Status result request. |
Dimensions | 180 x 180 x 150 mm. Manufacturer guidanceLength x height x depth. |
Mounting | Surface mounting via four mounting turrets. |
Enclosure material | Polycarbonate. |
Operation | Operated via the Zoneworks App. |
Operating system | Win 10, Winserver 2016, 2019, 2022 and Windows 11. Manufacturer guidanceSupported Operating Systems. |
Capacity | Up to 1000 devices per controller. Guidance for specification option: Unlimited fittings per system. Manufacturer guidanceInstalled capacity. |
Power consumption | 22 W, 0.15 A at 240 V. |
Operating temperature | 1–50°C. |
Operating humidity | 10–90% RH at 50°C. |
Ingress protection (minimum) | IP20. |
Accessories | Not required. Hive2Wired bridge. Guidance for specification option: For sensitive areas that cannot utilise wireless platforms. Adding a Hive2Wired bridge outside of the sensitive zone enables a Zoneworks connection using a (Non-RF) wired communication link into the shielded area and includes the fittings in the same system. Building management systems BMS integration. Zoneworks XT Cloud hosting. |
Sustainability data
Country of material origin | China |
Country of product manufacture | China |
Material | Polycarbonate |
