Pre-applied waterproof membrane composite sheets comprising a robust HPDE backing, a pressure-sensitive adhesive, and a trafficable weather-resistant coating with dual adhesive Preprufe® ZipLap™ for added security. GCP has combined its proven Advanced Bond Technology™ together with more than 25 years of major project experience to produce its highest-performing waterproofing membrane with even more practical and economic benefits.

The membranes develop a continuous adhesive bond to concrete poured against it. This forms micro-compartments to prevent water migration between the structure and the membrane, substantially reducing the risk of leaks.

Suitable substrates:

Concrete blinding.
Well compacted sand on rolled crushed stone.
Rigid insulation.
Clay heave boards.
Permanent formwork.
Removable formwork.
19 mm plywood.
Hydroduct drainage sheets.
Adjacent sub-structures.

Substrates must be regular and smooth with no gaps or voids greater than 12 mm. They must be sound to eliminate movement during the concrete pour.

System components:

Can be used in conjunction with:

Preprufe® Tape: Incorporating Preprufe® coating for continuous concrete adhesion at laps and detail.
Bituthene® LM: High performance liquid membrane for detailing terminations at pile caps and pipe penetrations.
Adcor® 500S/ 500T: Hydro-expansive waterstop for concrete construction joints.
Adcor® 550MI/ 550 T-MI: Hydro-expansive injectable waterstop for added security of concrete construction joints.
Serviseal and Servitite PVC waterstops
Adcor 550MI dual function hydrophilic injection hose system

Joint laps:

Minimum laps of 75 mm are recommended.

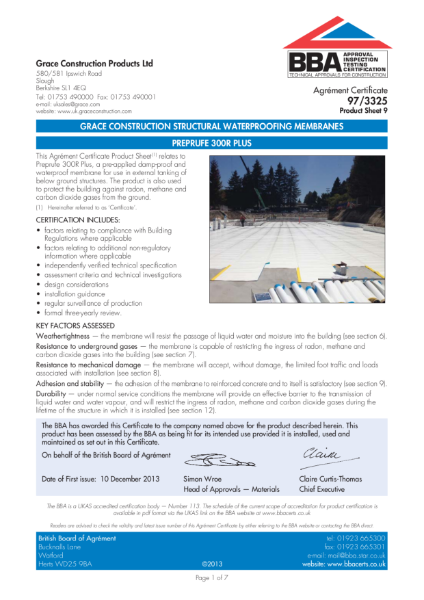

97/3325
