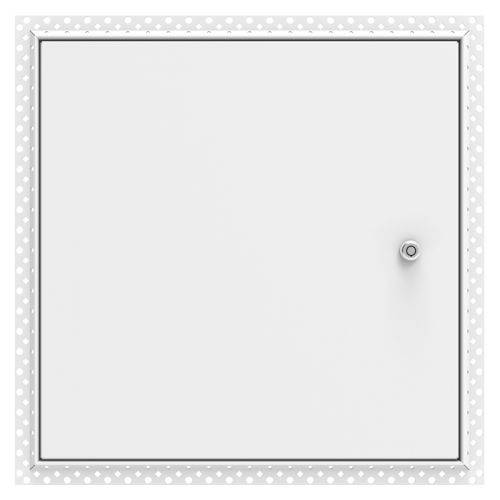

A fire rated flush metal access panel that provides simple access through fire rated all and veiling partitions where access to concealed services is required. It is suitable for either vertical or horizontal use and the access panels are independently fire rated.

Features and benefits:

Lightweight, flush metal door with a foil backed loner and intumescent and smoke seal gasket.
Provides a cost effective solution.
The doors are removable if damage occurs during installation.
Beaded or picture frame edge options to suit the application.
Single or double door configuration.
Airtight to Part L and smoke sealed.
Fully recyclable at end of life

Fire performance and standards:

Independently third party fire-rated.
Fire rating depends on the size and orientation of the panel.
CNC manufactured to ISO9001: 2015 and ISO14001: 2015
To BS EN 1634-1:2014, fire resistance and smoke control tests for door and shutter assemblies, openable windows and building hardware.
To BS 476-31.1 or EN 1634-3, fire tests on building materials and structures measuring smoke penetration through doorset and shutter assemblies.
To BS 9999:2017, fire safety in the design, management, and use of buildings. Code of practice (smoke control).
Air permeability classification (windows and doors) to BS EN 12207:2016 or BS EN 1026:2016.
Acoustic testing to BS EN ISO 140-3:1995 & BS EN ISO 717-1:1997.

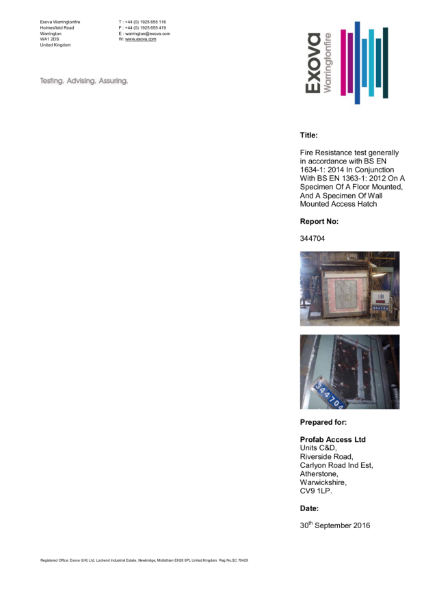

Fire Resistance test generally in accordance with BS EN 1634-1: 2014
