A 30/0-60/0 framed solid and glazed partitioning system, constructed with double layered plasterboards and steel internal structure, using Pyrobel 16 or 25 glass in single and double glazed configurations with 6.4 mm laminated glass. The system is fully demountable and relocatable.

Features and benefits:

Trackwork: 121 mm wide x 35 mm deep.
Screen height: Up to 3000 mm depending on configuration.
Acoustic performance: Up to 50 dB (Rw) depending on configuration.
Structural performance: Up to severe duty (BS 5234) and up to 1.5 kN/m (BS 6180) depending on configuration.
Fire performance: 30/0 or 60/0 depending on configuration.
Deflection head: None.
Solid options: Double-layered plasterboard.
Glass options: Single and double-glazed configurations of Pyrobel 16 or Pyrobel 25 with 6.4 mm laminated glass (with Pyrobel 16 only).
Door options: 44 mm and 54 mm fire-rated timber doors.
Finishes: Polyester powder-coated to any RAL or BS colour code or special anodized finishes.

Please consult the Komfort specification team for further information and certifications.

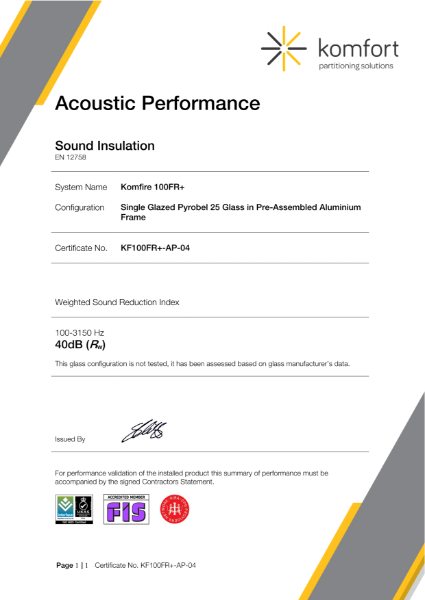

KF100FR+-AP-04 | Acoustic Performance | Komfire 100FR+ | Pyrobel 25 | 40dB (Rw)
