3 Pipe FSVEX Air Conditioning - Energy saving FSV system.
Verified by manufacturer over a year ago

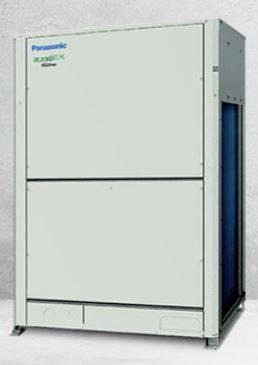

22.4 kW Outdoor Unit U - 8MF3R7
Energy-saving 3-Pipe FSVEX Outdoor Heat recovery pump.
Application
Design coupled with all inverter compressors. FSVEX can provide cooling even when outdoor temperature reach 52°C and heating when temperature is as low as -25°C.
System design applications for locations such as:
- Airports.
- Train stations.
- Schools.
- Hospitals.
- Plant rooms.
- Hotels and accommodation
Suitable application that suits wide array of Panasonic VRF Indoor units.
Description

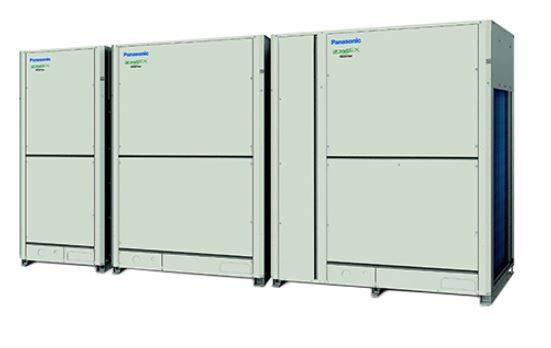

3-Pipe FSVEX air conditioning unit is Panasonic’s outdoor FSV system designed for energy savings, high durability, and even operation at extreme ambient temperatures. With a wide range of system designs from 22.4 kW to 135.0 kW with anti-corrosion features.
Product Features:
- With unique heat exchanger design coupled with all inverter compressors.
- Full load EER and COP.
- 100% Full capacity operation when the outside temperature reaches 43°C.
- Reliable operation in Australia's harsh climate.
- Anti-corrosion Blue Fin technology feature.
General information
Color | White |
Width | 1180 mm Guidance for specification option: Depth at 1000 mm. |
Height | 1842 mm |
Warranty description | Five year Guidance for specification option: Full 5 years parts and labour warranty for residential and commercial use. |
Uniclass | |
NATSPEC National Classification System | 0722 Room Air Conditioners 0721 Packaged Air Conditioning 0702 Mechanical Design and Install |
SpecPack | 15782 Air Conditioning - Packaged Units |
SpeedSpec | 15738 Domestic Air-Conditioning |
Specification data - Variable refrigerant flow units
Output cooling | 22.4 kW.Guidance for specification option: 76,500 BTU/h. |
Output heating | 25.0 kW.Guidance for specification option: 85,300 BTU/h. |
Height | 1842 mm. |
Width | 1180 mm. |
Depth | 1000 mm. |
Net weight | 264 kg. Guidance for specification option: With 11.1 kg refrigerant amount at shipment. |
Power supply | 380 V / 400 V / 415 V / 3-phase / 50 Hz. 380 V / 400 V / 3-phase / 60 Hz. |
Energy rating | 4.87 W/W Guidance for specification option: Cooling EER / COP rating. 5.09 W/W. Guidance for specification option: Heating EER / COP rating. |
Electrical performance | 4.60 kW. Guidance for specification option: Cooling - Electrical rating for power input. 4.91 kW. Guidance for specification option: Heating - Electrical rating for power input. |
AirFlowRate | 12,600 m³/h. Guidance for specification option: 3,733 L/s. |
Control system | Manufacturer guidanceAvailable in flexible control options. To check with the manufacturer for advice on control solution that suits your system requirements. |
Acoustic performance | 54.0 dB Guidance for specification option: Sound pressure level at normal mode. 51.0 dB. Guidance for specification option: Sound pressure level at silent mode. |
Pipes | Balance pipe. Guidance for specification option: Pipe connections at 6.35 mm diameter. Discharge pipe. Guidance for specification option: Pipe connections at 15.88 mm diameter. Liquid pipe. Guidance for specification option: Pipe connections at 9.52 mm diameter. Suntion pipe Guidance for specification option: Pipe connections at 19.05 mm diameter. |
Global warming potential | Manufacturer guidanceFor mixed heating and cooling operation with an outdoor temperature in excess of 24˚C DB, please use 50% or more of the horsepower of the outdoor unit for cooling operation. |
Operating temperature range | 27˚C DB / 19˚C WB. Guidance for specification option: Cooling - Indoor air temperature. 35˚C DB. Guidance for specification option: Cooling - Outdoor air temperature. 20˚C DB Guidance for specification option: Heating - Indoor air temperature. 7˚C DB / 6˚C WB Guidance for specification option: Heating - Outdoor air temperature. |
Sustainability data
Country of product manufacture | Australia |
Literature
FSVEX Brochure
Multisplit Capacity Table
Panasonic CAC WiFi Solutions
R32 Multisplit Air Conditioning System
