AngelStep GOLD8

Verified by manufacturer 8 months ago

Acoustica PTY Ltd

Acoustica’s best performing flooring underlay range, AngelStep is the top choice for discerning residential and commercial development where maximum impact noise control and sound absorption is needed

Jump to:
+(61) 1300 722 825 Website

Application

  • Residential apartments
  • Unit blocks
  • Commercial offices
  • Schools
  • Shopping malls


Description

Available in different variations to suit flooring substrates and materials, AngelStep® features unique patented technology that combines a sound absorber with impact and vibration damping to consistently achieve up to the highest 6-star acoustic rating dependent on installation.

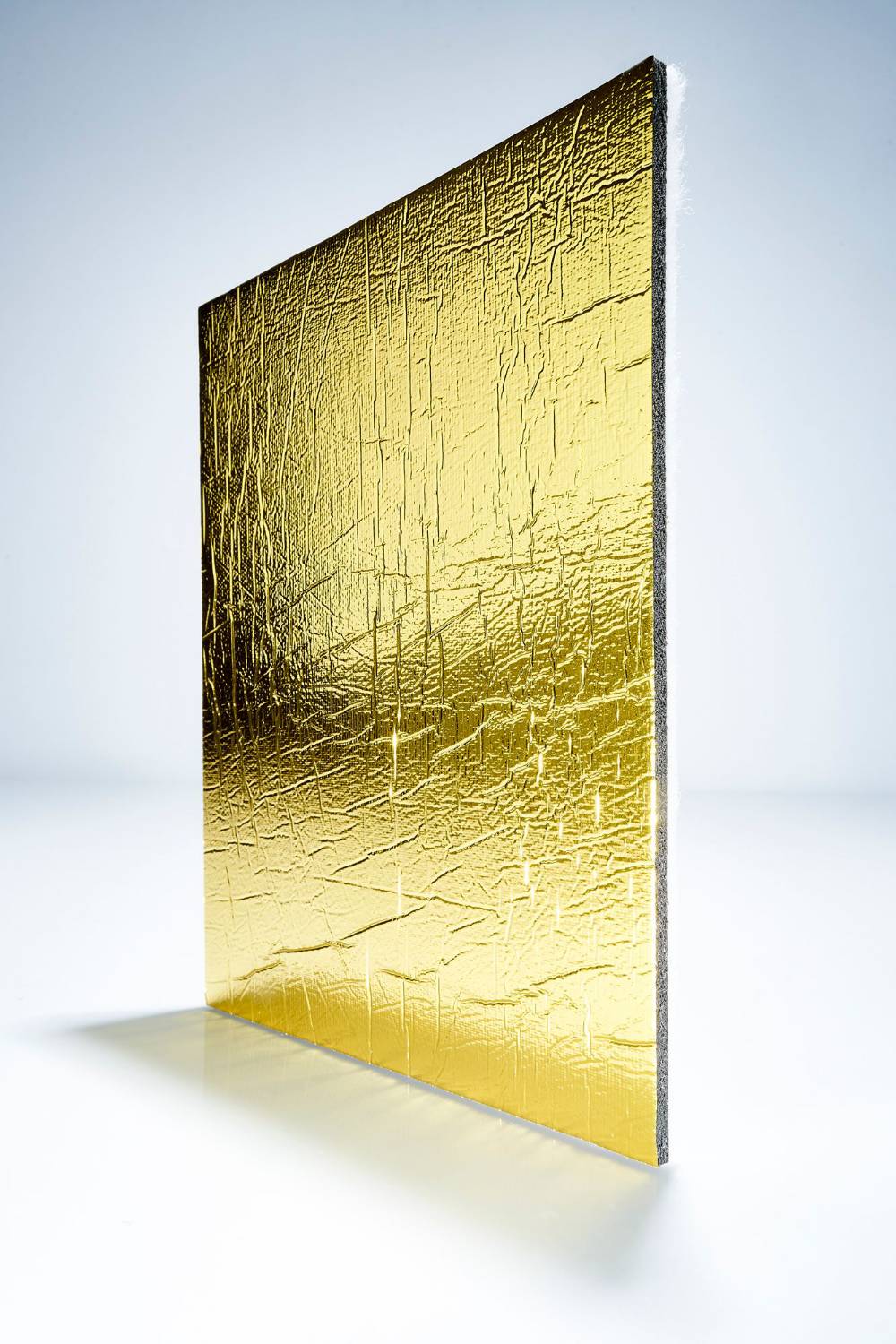

AngelStep® GOLD8 is a universal acoustic underlay optimised for all types of floors from timber to bamboo, carpet, parquetry, cork and vinyl. Underfloor heating compatible, AngelStep® GOLD8 combines a high-density sound absorber and cross-linked microcellular foam for maximum performance. Its aluminium gold facing can be used up or down for a variable underfloor feel. Dependent on the floor finish, Acoustica will advise if an intermediate layer such as plywood or fibrous cement substrate will need to be installed.

General information

Color

Gold

Finish

Foil

Material

Polyester fibre (PET)

Shape

Square

Length

1150 mm

Width

1150 mm

Height

8 mm

Warranty description

Ten year

Manufacturer guidance

Subject to correct installation and use.

Uniclass

Pr_25_57_06_71 Resilient layer insulationPrimary

NATSPEC National Classification System

0472 Acoustic Insulation

SpecPack

07200 Thermal and Acoustic Insulation

SpeedSpec

07200 Thermal and Acoustic Insulation

Specification data - Resilient layer insulation

Material

High density sound absorbent polyester and a resilient ‘cross linked’ microcellular foam

Thickness

8mm

Environmental performance

-

Recycled content

75%

VOC content

0.01mg/m3

Sound insulation

Lnt,w of 40

Manufacturer guidance

Acoustica’s product range of noise control solutions for flooring systems has been repeatedly independently tested to consistently achieve five and six stars in the Association of Australian Acoustic Consultants (AAAC) star rating system.

Sustainability data

Country of material origin

Australia

Country of product manufacture

Australia

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

75 %
