VyBar

Verified by manufacturer 8 months ago

Acoustica PTY Ltd

VyBar is a rigid marine noise barrier and vibration damping sheet specifically engineered to combat the combined effects of vibrations, sound transmission and reverberation from marine environments.

Jump to:
+(61) 1300 722 825 Website

Application

  • Engine enclosures
  • Bulkhead
  • Partition walls
  • Plant rooms
  • Mechanical services rooms


Description

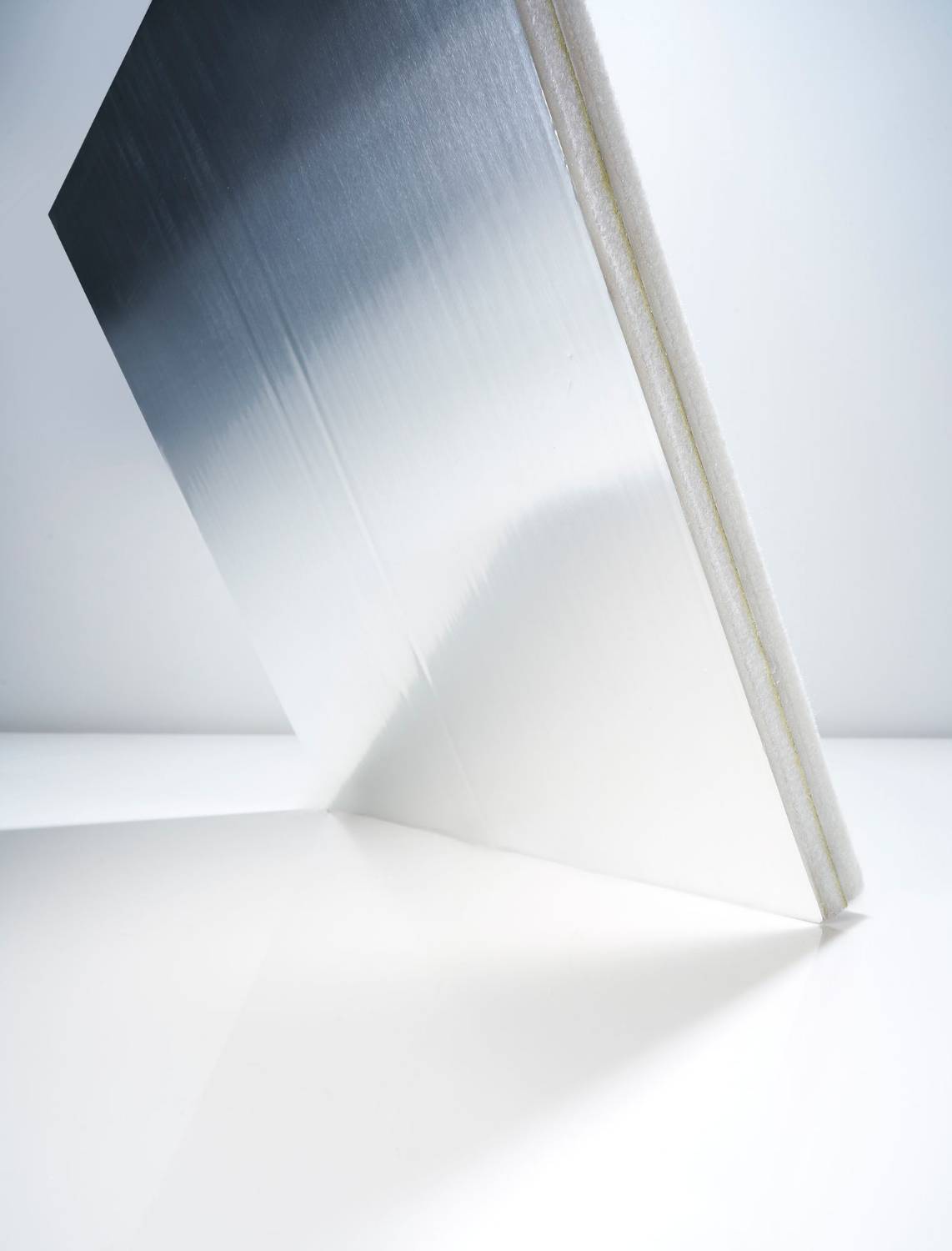

A robust aluminium-faced, fire-resistant material which can last up to 20 years, VyBar® is largely unaffected by hydrolysis and has high resistance to deterioration no matter how harsh and humid the marine environment. Heat resistant up to 180° C, VyBar’s unique material construction offers high sound absorption with resilience and compression loading capability.

Use it to line partition walls and bulkheads and in engine rooms and enclosures for effective sound reduction in the critical frequency region of rigid panels such as steel, aluminium and fibreglass.

General information

Color

Silver

Finish

Aluminium

Material

Polyester fibre (PET)

Shape

Square

Size

-

Manufacturer guidance

Standard sheet dimensions

Length

1200 mm

Width

1200 mm

Height

Bespoke

Warranty description

Ten year

Uniclass

Pr_25_57_06_71 Resilient layer insulationPrimary

NATSPEC National Classification System

0472 Acoustic Insulation

SpecPack

07200 Thermal and Acoustic Insulation

SpeedSpec

07200 Thermal and Acoustic Insulation

Specification data - Resilient layer insulation

Material

Polyester fibre.

Manufacturer guidance

Made up of double needle punched 100% polyester fibres layer faced on one side with a visco-elastic acoustic barrier and an aluminium foil on the opposite face.

Thickness

10mm

20mm

Fire hazard properties

-

Standard

IMO Resolution A.653 (16). IMO Resolution MSC 61 (67)

Environmental performance

-

Recycled content

60%

Sustainability data

Contains Red List materials

Yes

Country of material origin

Australia

Country of product manufacture

Australia

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

60 %
