Application

Suitable for foundations, below ground applications, retaining walls, balconies and decks under cement screeds.

Description

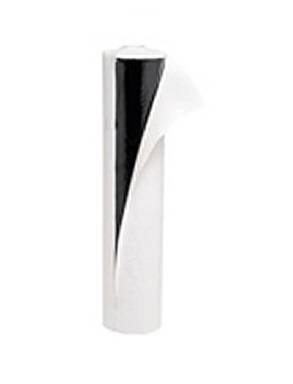

ARDEX WPM 3000X (Shelterseal 3000X Membrane) is a "peel and stick" Styrene Butadiene Styrene (SBS) bituminous membrane that is protected by a cross laminated high density polyethylene film. Some of its features include:

  • Cold applied waterproofing membrane that offers higher safety onsite (no open flames).
  • High resistance to acids, alkalis and other pollutants.
  • Adaptability to irregularly shaped surfaces without breaking or cracking.
  • Self seals on contact with substrate, thereby maintaining its watertightness.

General information

Color

Black

Material

Styrene butadiene styrene (SBS).

Warranty description

20 years.

Manufacturer guidance

Warranty of up to 20 years. Subject to terms and conditions. Contact manufacturer for details.

Uniclass

Pr_25_57_08_08 Bitumen sheetsPrimary

NATSPEC National Classification System

0253 Landscape - Planting

0411 Waterproofing – External and Tanking

SpecPack

07510 Membrane Roofing and Screeds

02930 Exterior Plants

07130 Waterproofing and Tanking

SpeedSpec

02910 Landscape Works

07130 Waterproofing and Tanking

Specification data - Bitumen sheets

Standard

To UNI 8202.

Thickness

1.5 mm.

Surface finishes

-

Top

High density polyethylene film.

Underside

Self-adhesive backing.

Material

Styrene butadiene styrene (SBS).

Colour

Black.

Roll size

1 m (width) x 20 m (length).

Manufacturer guidance

25 rolls per pallet.

Cold flex temperature

-30°C.

Substrates

Concretes, renders and screeds.

Fibre-cement sheets.

Structural or marine plywood.

Polystyrene blocks.

Manufacturer guidance

Contact manufacturer for use over other substrates, including existing membranes.

Execution

ARDEX WPM 3000X should be installed by approved
applicators, well trained in the application of self-adhesive
membranes. Installation shall be strictly in accordance
with ARDEX recommendations.

Sustainability data

Country of product manufacture

Italy
