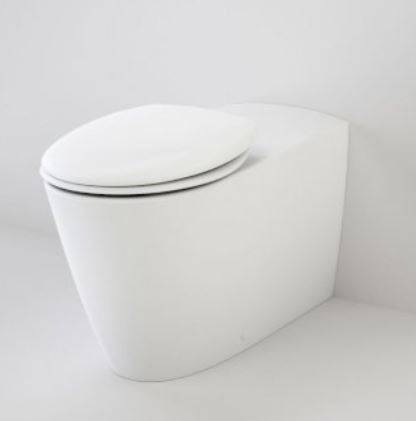

Care 800 Cleanflush® Wall Faced Invisi Series II® Toilet Suite with Double Flap Seat
Verified by manufacturer over a year ago
Wall-faced toilet suite with double flap seat.
Application
Suitable for use in hospitals, aged care and commercial applications where the highest level of hygiene and rapid cleaning are required.
Description
Care 800 Cleanflush Wall Faced Toilet Suite with Double Flap Seat is a smooth surfaced, wall-faced toilet suite. It has fully contoured sides and a double flap seat, making it suitable for people with accessible applications. Some of its features include:
- Concealed cistern and plumbing fittings.
- Caroma Uni-Orbital® connector (extends pan to any position in a 50 mm radius).
- Caroma Cleanflush® technology (hygienic optimum bowl cleaning).
- High infection control and ease of cleaning.
- Flexible installations.
- Universal trap type.
- WELS 4 Star rated.
- For AS 1428.1 2021: Design for access and mobility requirements installations, backrest variant (901900BAG) required.
General information
Color | White |
Finish | Smooth. |
Material | Vitreous China. |
Size | Manufacturer guidanceLength from finished wall: 800 ± 10 mm (requirement). Pan height from finished floor: 430 mm. Top of seat from finished floor: 460-480 mm. |
Warranty description | 20 years. Manufacturer guidanceAll Caroma Industries Limited products vary from a minimum 12 month to a lifetime product warranty. |
Uniclass | |
NATSPEC National Classification System | 0811 Sanitary Fixtures |
SpecPack | 15410 Plumbing Fixtures |
SpeedSpec | 15410 Plumbing Fixtures |
Specification data - WC suites
Water Efficiency Labelling and Standards Scheme (WELS) | |
Rating | 4 star. |
Form | Close coupled back to wall. |
Materials | Vitreous China. |
Finish and colour | White. |
Sizes | |
Cistern capacity | 4.5/3 L dual flush.Manufacturer guidance3.5 L average flush. |
Pan height | 430 mm.Manufacturer guidanceLength from wall: 800 mm. Overall height: 885 mm. |
Integral accessories | Backrest.Manufacturer guidanceBackrest required for compliance AS 1428.1. |
Inlet | Back entry. Guidance for specification option: Concealed cistern. |
TrapType | Universal. |
Seating colour | Anthracite grey. Sorrento blue. White. |
