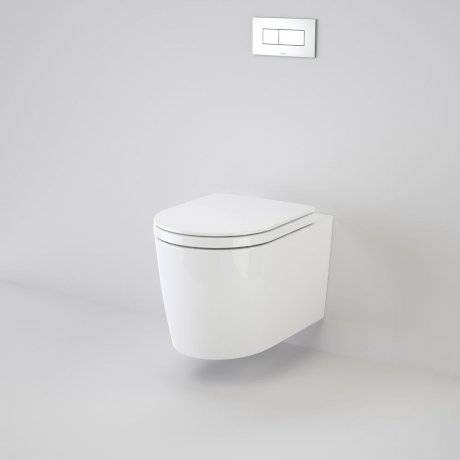

Liano Cleanflush® Wall Hung Invisi Series II® Toilet Suite
Verified by manufacturer over a year ago
Dual flush, wall-hung toilet suite with a concealed cistern.
Application
Suitable for domestic and commercial applications.
Description
Liano Cleanflush® Wall Hung Invisi Series II® Toilet Suite is a dual flush, contemporary toilet suite consisting of the Liano Cleanflush® Wall Hung Pan and a concealed cistern. Some of its features include:
- Concealed cistern and plumbing fittings.
- High infection control and ease of cleaning.
- Caroma Cleanflush® technology (hygienic optimum bowl cleaning).
- Quick release, soft close thin lid seat option.
- Unvented P-trap and back entry inlet.
- WELS 4 Star rated.
General information
Color | White |
Finish | Smooth. |
Material | Vitreous China. |
Size | Manufacturer guidanceLength from finished wall: 535 mm. Pan height from finished floor: 405 mm. |
Length | 535 mm |
Height | 405 mm |
Warranty description | 20 years. Manufacturer guidanceAll Caroma Industries Limited products vary from a minimum 12 month to a lifetime product warranty. |
Uniclass | |
NATSPEC National Classification System | 0811 Sanitary Fixtures |
SpecPack | 15410 Plumbing Fixtures |
SpeedSpec | 15410 Plumbing Fixtures |
Specification data - WC suites
Water Efficiency Labelling and Standards Scheme (WELS) | |
Standard | To AS/NZS 6400. |
Rating | 4 star. |
Form | Wall-mounted and concealed cistern. |
Rim configuration | Without rim. |
Materials | Vitreous China. |
Finish and colour | White. |
Sizes | |
Cistern capacity | 4.5/3 L dual flush.Guidance for specification option: 3.5 L average flush. |
Pan height | 405 mm. |
Integral accessories | Rough in and fit out kits, supplied.Buttons, sold separately. |
Execution | Inwall.Under counter.Induct.Inceiling.Manufacturer guidanceThe installation of the toilet suite shall be in accordance with the normal minimum drainline grade requirements in AS/NZS 3500.2. |
Water inlet | Back entry. Manufacturer guidanceFully glazed 50 mm back inlet for concealed cistern and flushvalve installation. |
Fixing | D.403 standard. Guidance for specification option: Code No.237403. D.402 undercounter. Guidance for specification option: Code No.237402. D.788 bolt through the wall bracket. Guidance for specification option: Code No.687788. |
