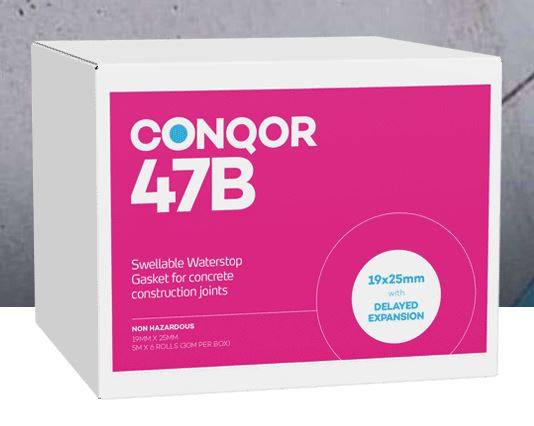

CONQOR 47B
Verified by manufacturer over a year ago
Delayed expansion waterstop gasket for concrete joints.
Application
Suitable use in horizontal and vertical joints for waterproofing concrete basements, pools, precast infills.
Description

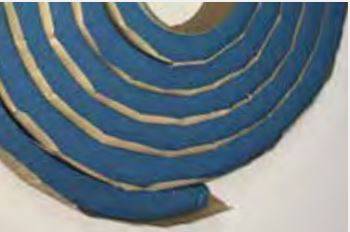

Conqor 47B waterstop is butyl hydrophilic polymer based gasket, which has a built in delay system that activates after approximately 5-10 days of constant exposure to water.
Conqor 47B waterstop is manufactured utilising a specialised mixing process which encapsulates hydrophilic materials into a rubber base creating a controlled, moisture activated gasket. This gasket has the structural integrity of a rubber based sealant; the features of a butyl sealant; as well as the ability to expand to create a self-healing joint material. Some of its significant features include:
- Allows concrete to gain full strength before expansion.
- Excellent adhesion, can be bedded into wet concrete.
- No compact or displacement problems.
- Bonds to both concrete surfaces.
- Easy to install and non toxic.
General information
Color | Blue |
Material | Butyl |
Length | Bespoke |
Width | 25 mm |
Height | 19 mm |
Uniclass | |
NATSPEC National Classification System | 0310 Concrete - Combined |
SpecPack | 03310 Concrete |
Specification data - Rubber hydrophilic waterstops
Cross section | 25 x 19 mm.9 x 19 mm. |
Execution | Manufacturer guidanceCONQOR 47B waterstop gasket is installed to the positive water ingress side of any reinforcing, to ensure structural reinforcing is protected from moisture ingress long-term. Refer to product technical data sheet for details on installation. |
Colour | Blue. |
VOC Content (maximum) | 1%. Guidance for specification option: ASTM D-6. |
Application temperature | -22° to +52°C. |
Service temperature | -34° to +82°C. |
Literature
CONQOR - Swellable Waterstop Gaskets

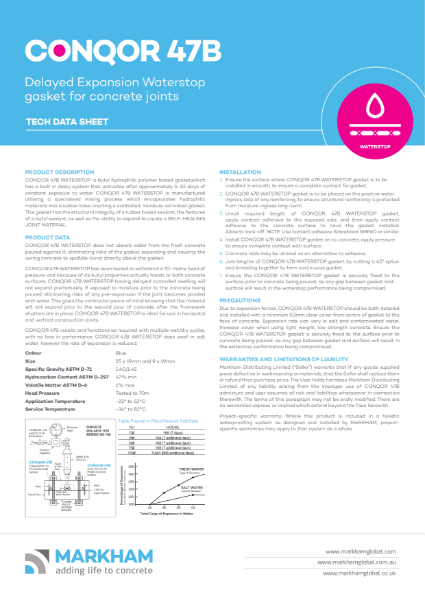

CONQOR 47B - Technical Data Sheet
