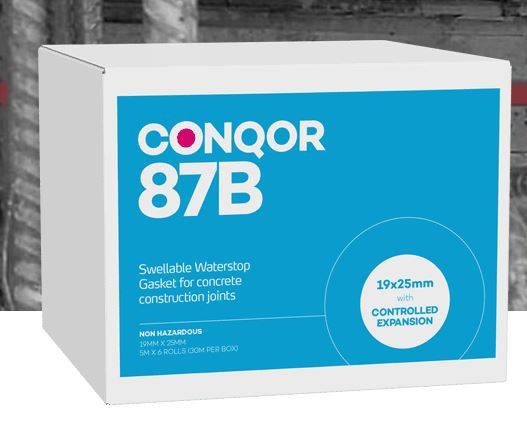

CONQOR 87B

Verified by manufacturer over a year ago

Markham Global PTY LTD

Controlled expansion waterstop gasket for concrete joints.

Jump to:
1800 693 694 Website

Application

Suitable use in horizontal and vertical joints for waterproofing concrete basements, pools, precast infills.

Description

Conqor 87B waterstop is butyl hydrophilic polymer based gasket, which a controlled expansion when exposed to moisture.

Conqor 87B waterstop is manufactured utilising a specialised mixing process which encapsulates hydrophilic materials into a rubber base creating a controlled, moisture-activated gasket. The gasket has the structural integrity of a rubber-based sealant, the features of a butyl sealant, as well as the ability to expand to create a self-healing joint material. Some of its significant features include:

  • Allows concrete to gain full strength before expansion.
  • Excellent adhesion, can be bedded into wet concrete.
  • No compact or displacement problems.
  • Bonds to both concrete surfaces.
  • Easy to install and non toxic.

General information

Color

Other

Material

Butyl

Length

Bespoke

Width

25 mm

Height

19 mm

Uniclass

Pr_35_90_15_74 Rubber hydrophilic waterstopsPrimary

NATSPEC National Classification System

0310 Concrete - Combined

SpecPack

03310 Concrete

Specification data - Rubber hydrophilic waterstops

Cross section

25 x 19 mm.

Execution

-

Manufacturer guidance

CONQOR 87B waterstop gasket is installed to the positive water ingress side of any reinforcing, to ensure structural reinforcing is protected from moisture ingress long-term. Refer to product technical data sheet for details on installation.

Colour

Magenta.

VOC Content (maximum)

1%.

Guidance for specification option:

ASTM D-6.

Application temperature

-22° to +52°C.

Service temperature

-34° to +82°C.

Sustainability data

Contains Red List materials

No

Literature

CONQOR - Swellable Waterstop Gaskets

CONQOR - Swellable Waterstop Gaskets

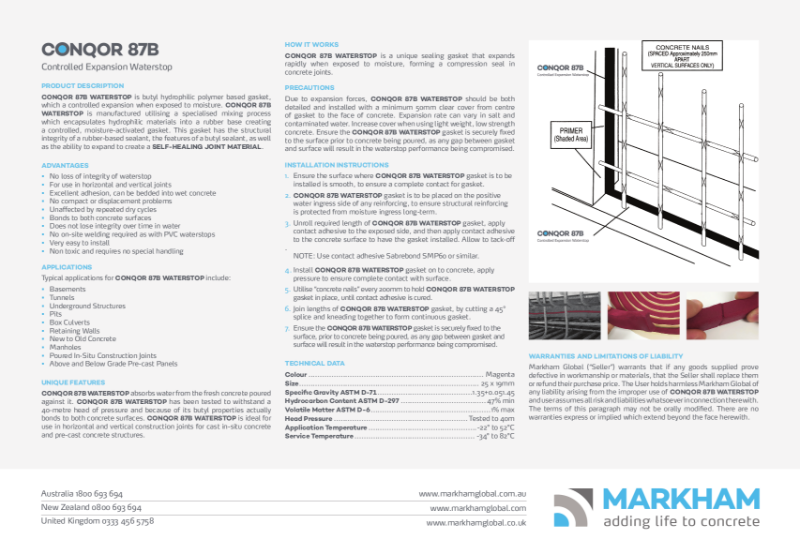

CONQOR 87B Delayed Swellable Waterstop Gasket - Technical Data Sheet

CONQOR 87B Delayed Swellable Waterstop Gasket - Technical Data Sheet
