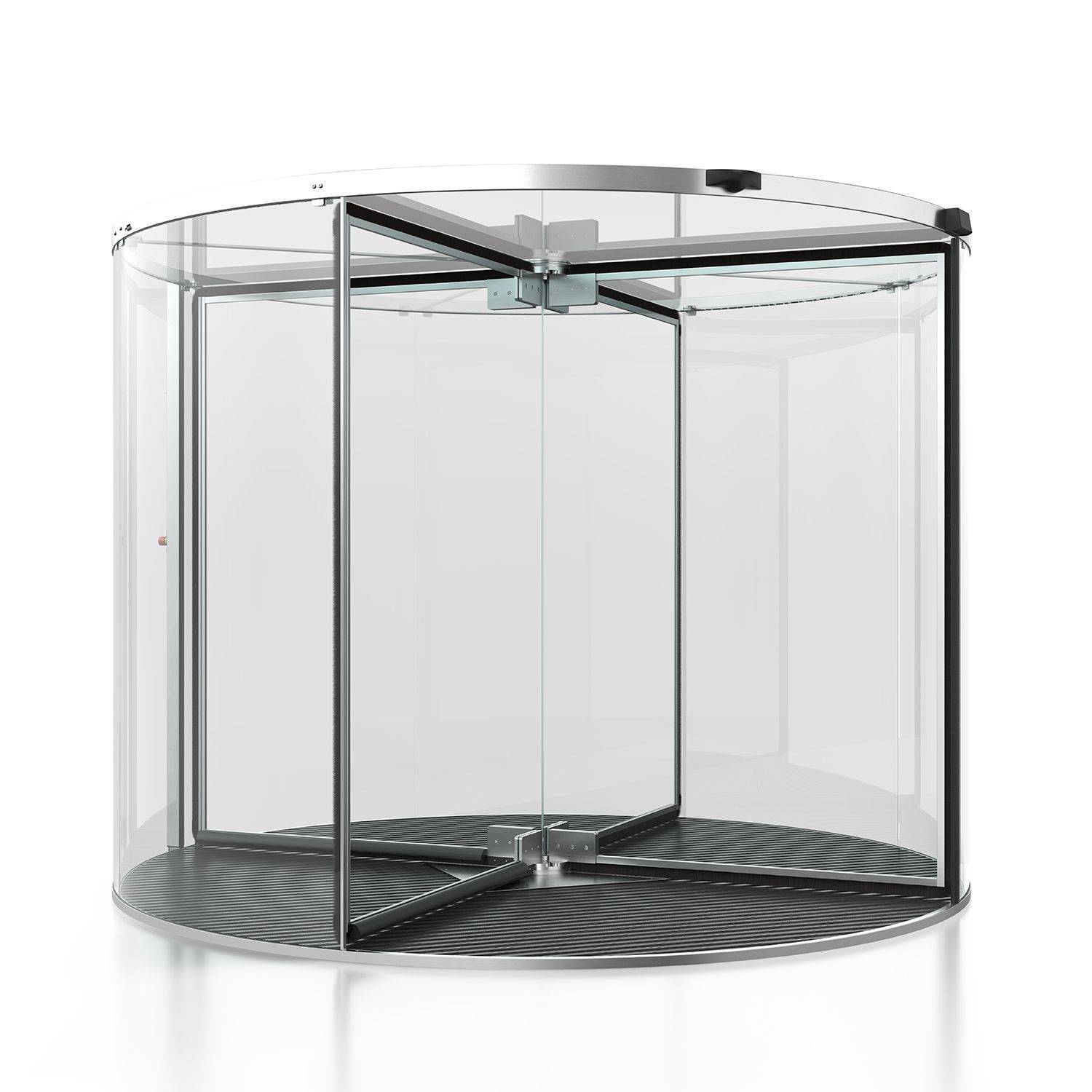

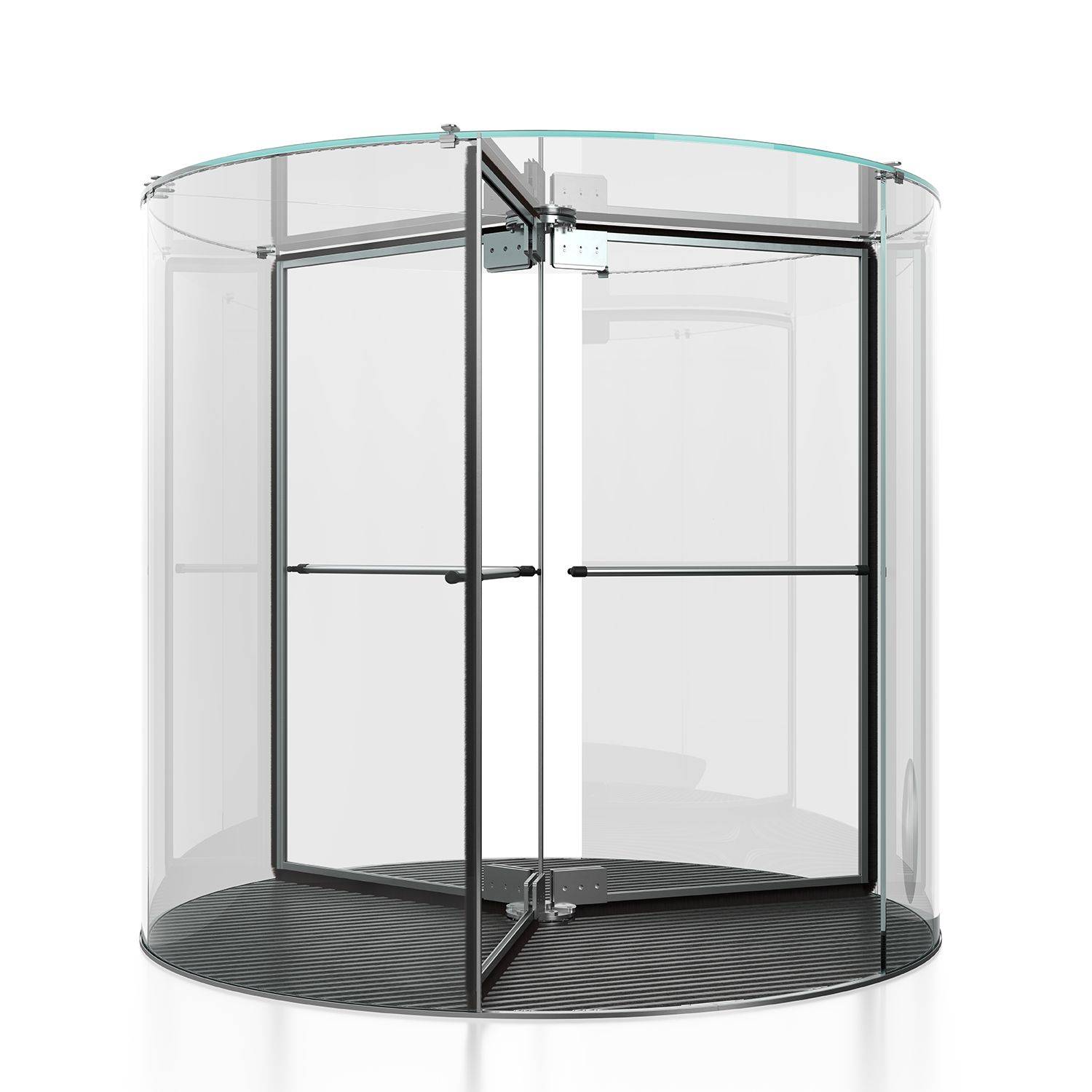

Crystal Tourniket 3 wings - 1600 mm diameter
QA Certificate
Certificate type
Virtually transparent automatic revolving door.
Revolving door using a combination of laminated and toughened glass to reduce the traditionally framed elements of the door to a bare minimum. The result is a virtually completely transparent revolving door.
Features and benefits:
Construction:
Color | Clear Manufacturer guidanceOther colour options available to check with the manufacturer. |
Material | Glass |
Shape | Circle |
Width | 3000 mm |
Height | 2200 mm |
Warranty description | One year Guidance for specification option: Extended warranty available on request. |
Uniclass | |
NATSPEC National Classification System | 0451a Windows and Glazed Doors – Metal 0451 Windows and Glazed Doors |
SpeedSpec | 08200 Doors and Door Frames |
SpecPack | 08900 Glazed Curtain Walls 08450 Fully Glazed Entrance Facades |
Standard | To AS 5007. |
Configuration | 3 wings.4 wings. |
Materials and finishes | |
Doors | Glass |
Glazing | |
Type | Laminated safety glass (P2A). |
Manifestation | 50 mm dots. |
Canopy | Canopy soffit height at 18 mm. |
Activation and control system | |
Type | Floor radars. |
Safety devices | Radar activated.EBS.SRD.BRS Optional extra safety sensors.EM Stop.Manufacturer guidanceOther options available depending on configuration. To check with the manufacturer. |
Locking mechanism | Electro-magnetic.Eurocylinder. |
Capacity | 2 x 22 (person / minute). |
Security performance | Night Locking - Manual door set locks. External night-locking doors. Security lockdown. Access control options. |
Safety | Fire alarm connection. CE basic. BoonAssist speed control. Collapsible door set. Accessibility buttons. |
Door wings | 3 wings. |
Diameter | 1600 mm. |
ClearWidth | 1650 mm. |
Door wing height | 2100-3000 mm. |
Throat width | 719 mm. |
Power supply | 200 - 240 VAC, 50/60 Hz. AC motor - 3 phase. |
Operating temperature | -20°C to +50°C. |
Power consumption | 150 W (Operating). 75W (Stationary). Manufacturer guidanceExternal Power supply fused with 16A slow. |
Country of material origin | Netherlands |
Country of product manufacture | Netherlands |
