Verified by manufacturer over a year ago

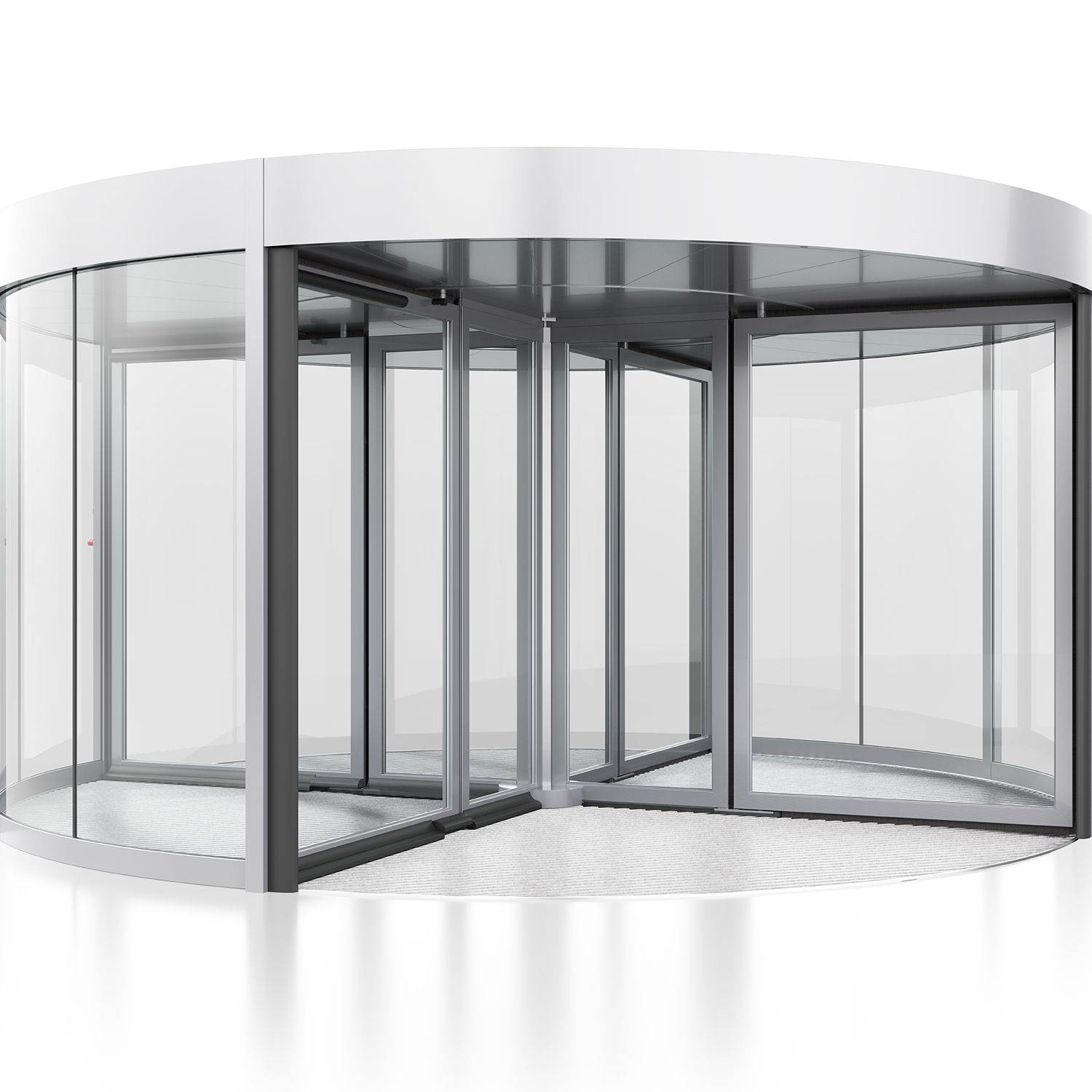

Tournex 3600 mm - 3 wing
QA Certificate
Certificate type
A sophisticated automatic revolving door with spacious compartments, easily able to cope with intensive pedestrian traffic flow while protecting the building environment from draughts.
Design with range of diameters options up to 7400 mm, large enough to safely accommodate shopping and luggage trolleys, stretchers and wheelchairs, making it a truly impressive entrance solution for ntensive pedestrian traffic flow applications such as:
A sophisticated automatic revolving door with spacious compartments, easily able to cope with intensive pedestrian traffic flow while protecting the building environment from draughts.
Features and Benefits:
Finish | Anodized Powder-coated |
Material | Aluminium Stainless steel |
Shape | Circle Manufacturer guidanceRound. |
Warranty description | One year Manufacturer guidance12 month standard product warranty. Extended warranty available on request. |
Uniclass | |
NATSPEC National Classification System | 0451a Windows and Glazed Doors – Metal 0451 Windows and Glazed Doors |
SpecPack | 08900 Glazed Curtain Walls 08450 Fully Glazed Entrance Facades |
SpeedSpec | 08200 Doors and Door Frames |
Standard | To AS 5007. |
Configuration | Automatic |
Materials and finishes | |
Doors | AluminiumStainless steel |
Glazing | |
Type | Laminated glass |
Manifestation | 50mm dots as standard |
Canopy | 300-1200 mm |
Activation and control system | |
Safety devices | Radar activated sensorsEBSSRDBRS Optional extra safety sensorsCollapsible door set in case of fire. |
Locking mechanism | Electro-mechanical.Mechanical. |
Breakout facility | Optional manual. |
Integral accessories | Low energy lighting.Air curtains.Floor mats.Showcase around the centre column, can be used as advertising space. |
Capacity | 2 x 36 person per minute. |
Security performance | Manual night locking door set. External or internal shield doors. Security lockdown. Burglar protection. Remotely controlled door set blocking. |
Safety | Fire alarm connection. Vandal resistant. CE basic. Idle speed. Safety plus. |
Power supply | 200-240 VAC, 50/60 Hz |
Power | 440 W Guidance for specification option: Operating power consumption. 350 W Guidance for specification option: Stationary power consumption. Manufacturer guidanceExternal Power supply fused with 16A slow. |
Operating temperature range | -20°C to 50°C |
Diameter | 3600 mm |
Door wings | 3 |
ClearWidth | 3740 mm |
Throat width | 1570 mm |
Door wing height | 2200 - 2600 mm |
Canopy height | 300 - 1200 mm |
Wheelchair access | Yes. |
Exit | Collapsible door set. Guidance for specification option:
Manufacturer guidanceEscape route requirements are subject to local regulations. |
Country of material origin | Netherlands |
Country of product manufacture | Netherlands |
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
