Efaflex High speed security carpark door - High speed security carpark door.

Verified by manufacturer over a year ago

DMF International Pty Ltd

A space-saving door particularly suited for parking and garage systems.

Jump to:
+ (61 2) 9636 5466 Website

Application

Suitable application for interior and exterior applications.

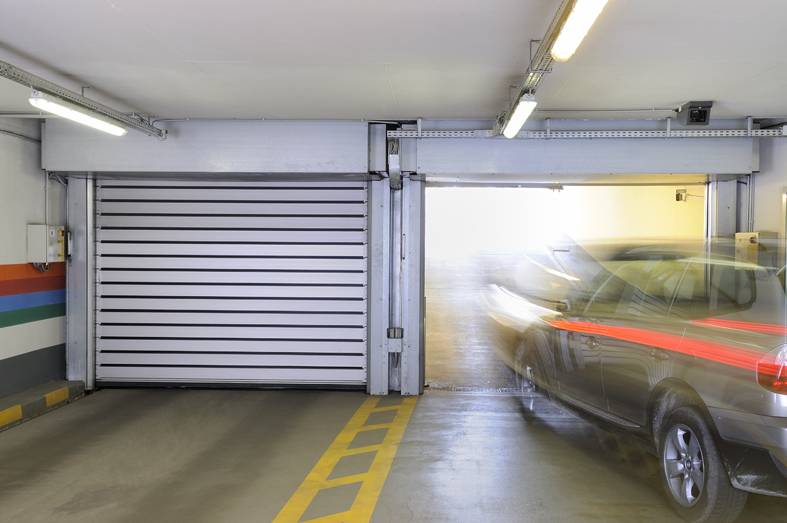

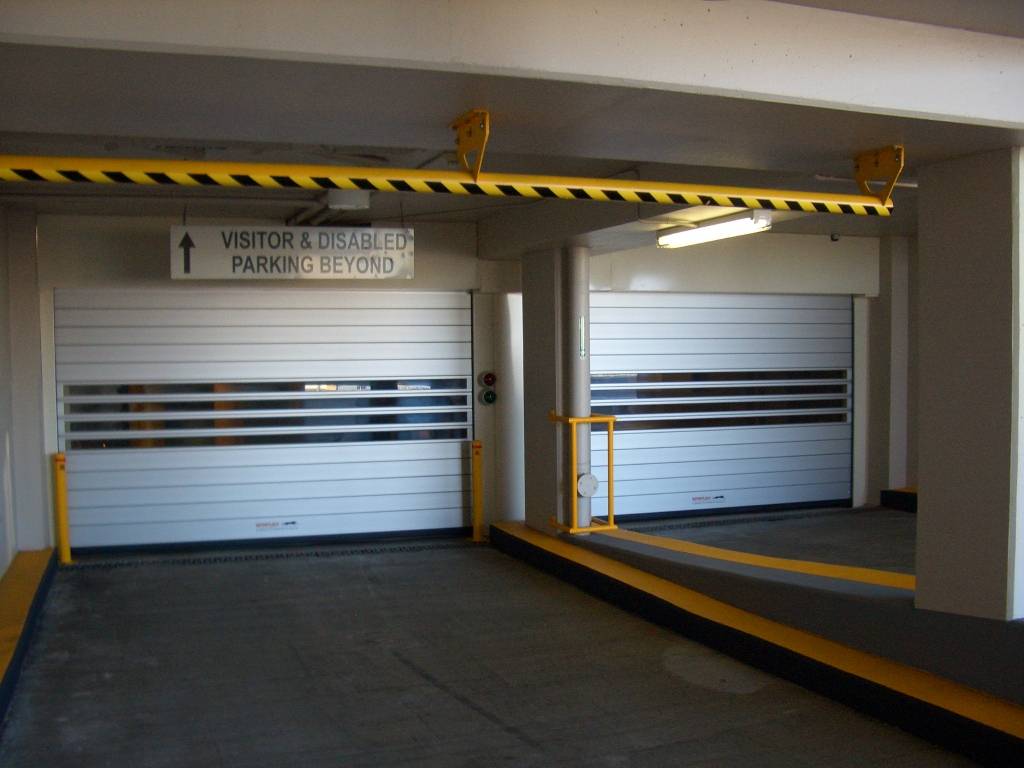

Fast and secure doors contribute to safe entry and exit of (underground) car parks of hotels, banks, agencies and other public institutions in particular.

Description

Efaflex High speed security carpark door, a space-saving door particularly suited for parking and garage systems. The new construction can be installed even with minimal space restrictions due to in the lintel or side frames. Some of its significant features include:

  • Opening speeds of up to 1.8 m/s.
  • Burglar-proof external door.
  • High safety standards.
  • High wear and tear resistance.
  • Fully automatic control.

General information

Length

Bespoke

Width

Bespoke

Height

Bespoke

Uniclass

Pr_30_59_24_38 High-speed doorsetsPrimary
Pr_30_59_84_73 Roller shutters

SpecPack

08330 Roller Shutter Doors

NATSPEC National Classification System

0454 Overhead Doors

SpeedSpec

08330 Roller Shutter Doors

Specification data - High-speed doorsets

Speed (minimum)

-

Opening

1.2 m/s.

1.8 m/s.

Closing

0.5 m/s.

1.0 m/s.

Guidance for specification option:

With EFA-TLG® door light-line grid.

Format

Roll up.

Size

-

Manufacturer guidance

Custom manufactured to size. Available in maximum dimensions of 6100 mm (width) x 4000 mm (height).

Frame and guides

-

Material

Galvanized sheet steel frame.

Guidance for specification option:

Standard.

Stainless steel.

Guidance for specification option:

Upon request.

Powder-coated steel.

Guidance for specification option:

Upon request.

Finish and colour

-

Manufacturer guidance

RAL colour for powder coated steel, consult manufacturer for details.

Operation

Automatic.

Manufacturer guidance

With an electronic control, can be opened and closed with different remote programmes.

Category of use

Interior door.

Guidance for specification option:

Standard.

Lock-up doors.

Guidance for specification option:

Standard.

Maximum wind loading

Class 4.

Manufacturer guidance

To DIN EN 12424.

Operating forces

To DIN EN 13241-1.

Sound insulation

23 dB.

Manufacturer guidance

To DIN EN 717-1.

Speed

2.0 m/s.

1.5 m/s.

Manufacturer guidance

Maximum door blade speed.

Consult manufacturer for details.

Type

Round Spiral.

Guidance for specification option:

Standard.

Low-header (L/S).

Guidance for specification option:

Standard or upon request.

Blade

Double wall anodised aluminium in E6/EV1.

Guidance for specification option:

Standard.

Stainless steel.

Guidance for specification option:

Upon request, consult manufacturer for details.

Colour

Powder coated according to RAL.

Guidance for specification option:

Consult manufacturer for details.

Fire classification

Class B2.

Guidance for specification option:

To DIN 4102.

Actuation/ Safety systems

Spring.

Cycles

200 000 operating cycles per year.

Control system

EFA-TRONIC®.

Guidance for specification option:

Standard.

Frequency converter.

Guidance for specification option:

Standard.

EFA-TRONIC® PROFESSIONAL.

Guidance for specification option:

Upon request, consult manufacturer for details.

Main switch and foil keypad.

Guidance for specification option:

Standard.

Emergency release

Automatically after manual activation.

Safety devices

EFA-TLG® door light-line grid in door closing line.

Guidance for specification option:

Upon request.

Contact edge.

Guidance for specification option:

Standard.

Light barrier.

Guidance for specification option:

Standard.

Approach area monitoring.

Guidance for specification option:

Upon request.

Light grid, external.

Guidance for specification option:

Upon request.

Manufacturer guidance

Consult manufacturer for details.
