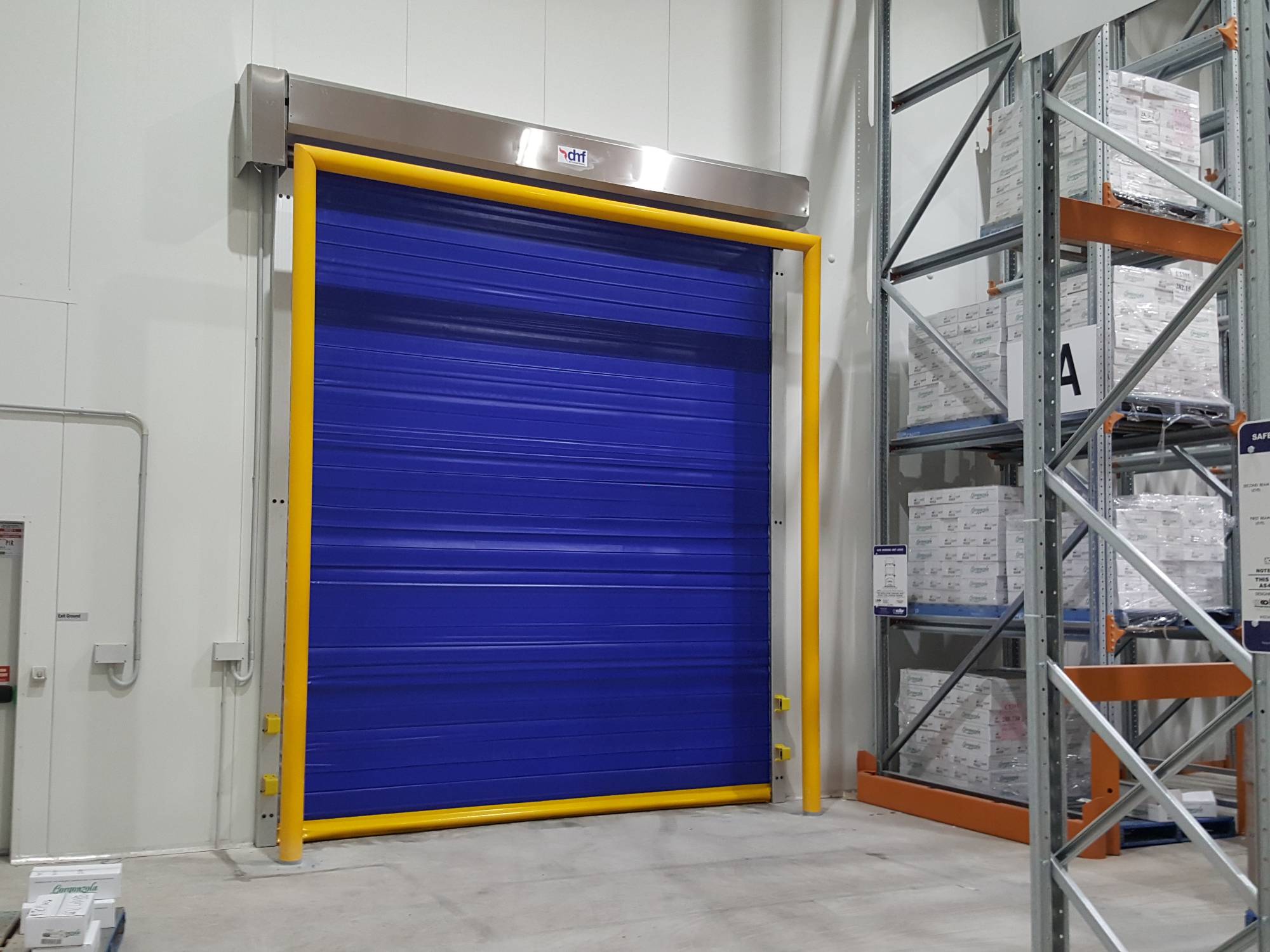

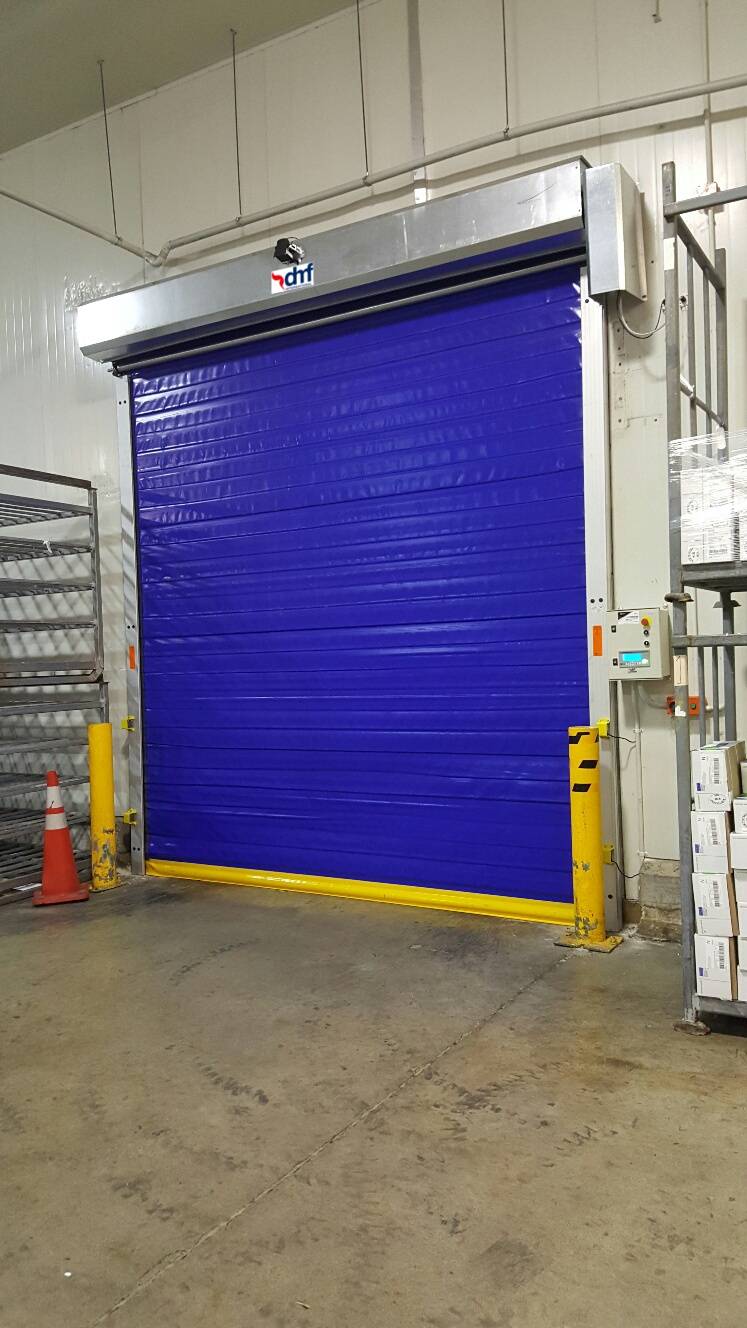

Rapid Roll Door Series Coldsaver - Coldsaver Door.

Verified by manufacturer over a year ago

DMF International Pty Ltd

High speed roll door, constructed from modular proprietary interlocking aluminium extrusions with flexible insulated door blade.

Jump to:
+ (61 2) 9636 5466 Website

Application

The COLDSAVER Rapid Roll Door is designed specifically for freezer applications operating at down to -30°C. It is a reliable and durable door, yet providing a simplicity that allows non specialist installation.

COLDSAVER Rapid Roll Door is ideal application for:

  • Freezer ante rooms.
  • Cool rooms.
  • Temperature sensitive areas.
  • Hot rooms up to 70°C.
  • Noisy areas.

Description

The Series COLDSAVER door, is a high speed roll door constructed from modular proprietary aluminium extrusion, with a specialised 15mm thick flexible insulate door blade. An integrated seal, providing optimum sealing of the door panel. Some of its significant features include:

  • Suitable for chillers or freezers door speeds up to 1.2 m/s.
  • Thermal transmittance reduced by insulated door blade.
  • Sound insulation available in various forms of activation.

General information

Uniclass

Pr_30_59_24_38 High-speed doorsetsPrimary

SpecPack

08330 Roller Shutter Doors

NATSPEC National Classification System

0454 Overhead Doors

SpeedSpec

08330 Roller Shutter Doors

Specification data - High-speed doorsets

Speed (minimum)

-

Opening

1.2 m/s.

Closing

0.7 m/s.

Format

Roll up.

Size

-

Manufacturer guidance

Custom manufactured to size. Available in maximum dimensions of 4500 mm (width) x 4500 mm (height).

Arrangement

Fitted across opening.

Curtain material

15 mm insulate within 900 gsm polyskin.

Guidance for specification option:

Manufactured from a minimum 900 gsm polyester-reinforced, fire retardant PVC coated with UV absorbers.

Manufacturer guidance

To be constructed in a pocketed formation to allow the insertion of 15mm or 20mm insulation neoprene sections.

Frame and guides

-

Material

Aluminium.

Finish and colour

Anodised.

Powder-coated.

Guidance for specification option:

To standard Dulux colours.

Consult manufacturer for details.

Operation

Automatic.

Guidance for specification option:

With variable speed control, soft start /soft stop facilities and variable hold open timer.

Manufacturer guidance

Programmable single phase HMI PLC invertor controller system.

Integral accessories

Control box.

UPS battery backup.

Guidance for specification option:

Providing 5-10 operational cycles, in the event of a power failure.

Heater cabling.

All weather top cowling.

Additional safety sensors.

Panel

-

Manufacturer guidance

Available in 12 selected colours and to be constructed in a

pocketed formation to allow the insertion of 15 mm or 20 mm insulation neoprene sections. Contact manufacturer for details.

Thermal insulation (U-value)

0.9 W/(m²∙K).

Activation and controls

Push button.

Pull cords.

Motion sensors.

Induction floor loops.

Remote control.

Show more

Power supply

240 volt single phase outlet.

Guidance for specification option:

Rated at 10-20 amps with RCD Type 4 on the circuit.

Literature

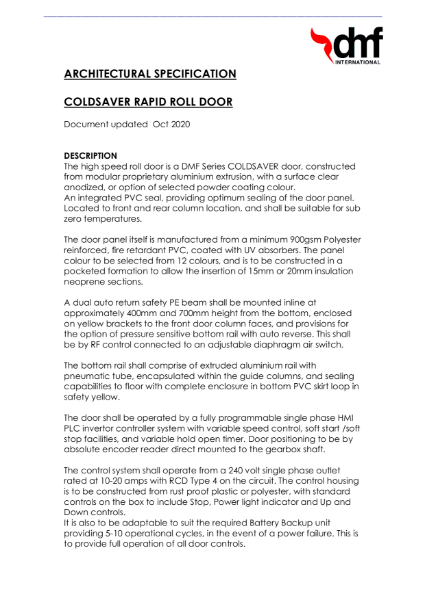

Rapid Roll Coldsaver Door Architectural Specification

Rapid Roll Coldsaver Door Architectural Specification

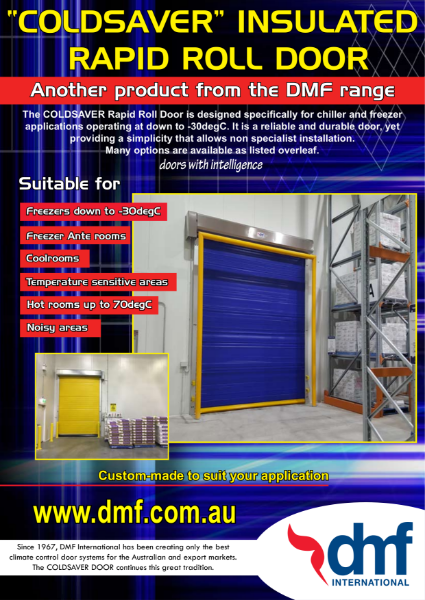

Rapid Roll Coldsaver Door

Rapid Roll Coldsaver Door
