Expo Bike Rack Series
Verified by manufacturer over a year ago
Expo 1500
Expo 1500
QA Certificate
Certificate type

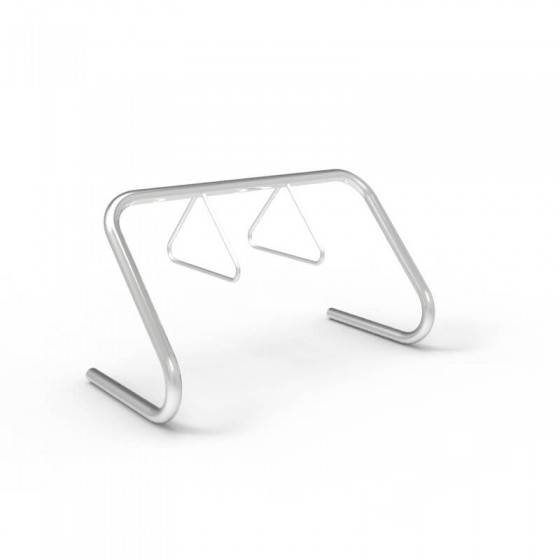

Ground-mounted bike rack.
Application
Suitable for indoor and outdoor applications.
Description

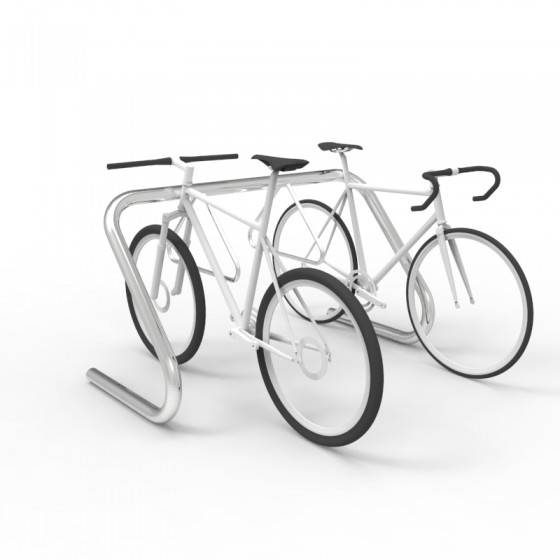

The Cora Expo Series is the proven solution where multiple bicycle parking spaces are required. It offers an attractive,
secure and versatile facility that is designed for ease of use and installation. It can be installed for single or double sided access for maximum space efficiency, and can be used for indoor and outdoor applications.
The Expo 500 Series (Expo 1500 and 2000 models) provide AS2890.3 compliant spacing of 500mm per bike space.
The Expo Classic Series (Expo 2704, 3606, 4506, 7510 models) provide more compact spacing where AS2890.3 compliance is note required.
General information
Color | Manufacturer guidanceAvailable in galvanized, stainless steel (in stock) and any standard Cora colour (powder-coated finish). |
Finish | Powder-coated, Galvanized or Electropolished Stainless steel. |
Material | Heavy duty high quality steel or 316 Stainless steel. |
Shape | Manufacturer guidanceTriangular loop. |
Size | Manufacturer guidance1500 x 850 x 850 mm. |
Warranty description | Five years. Manufacturer guidanceMaterial and workmanship warranty. |
Uniclass | |
SpecPack | 02870 Unit Pavers |
NATSPEC National Classification System | 0261a Landscape – External Urban Items 0261 Landscape – Furniture and Fixtures 0552 Metalwork - Fabricated |
Specification data - Ground-mounted cycle stands
Standard | To AS 2890.3:2015.Guidance for specification option: Expo 1500 and 2000 models are AS2890.3 compliant. |
Material | Carbon steel.Stainless steel, grade 316.Stainless steel, grade 304. |
Number of supports | 2. |
Dimensions | |
Width | 850 mm. |
Length | 1500 mm.Manufacturer guidanceCapacity for single sided access is 5 bikes, double sided access permits 8 bikes. |
Above-ground height | 850 mm. |
Finish | |
Coating | Galvanized.Powder-coated.Manufacturer guidanceWhere Stainless steel is specified, remove this item. |
Colour | Yellow.Blue.Red.Green.Grey.Black.Manufacturer guidanceApplicable for powder-coated finish only. Select from standard colour range. |
Fixings | 2 x M10 x 125 mm stainless steel anchor bolts with tamper-resistant fasteners (supplied). |
Supply | Fully welded and assembled. |
Green Certification | Green Star, Eco-specifier global verified. |
Third party certifications
Literature

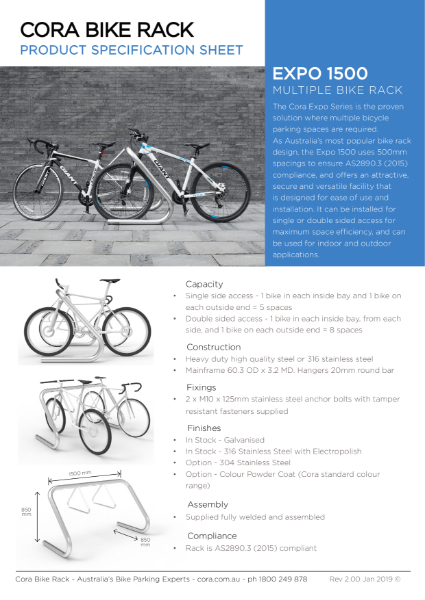

Expo 1500 Brochure
Cora Bike Rack Product Finishes
Expo 2000 Brochure

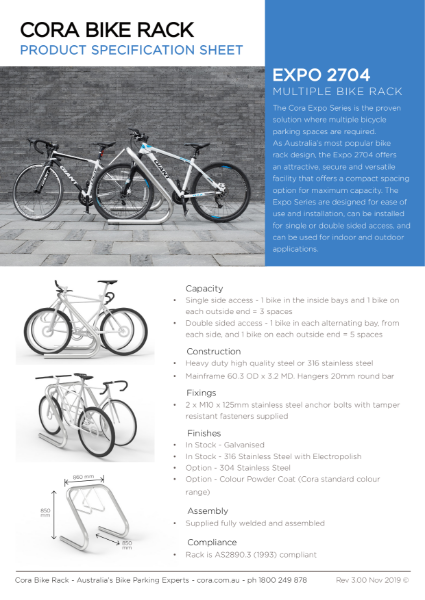

Expo 2704 Brochure
Expo 3606 Brochure
Expo 4506 Brochure

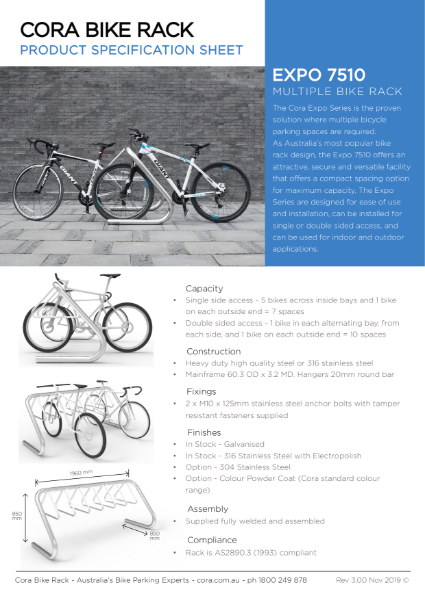

Expo 7510 Brochure
Expo J Brochure
