Futureline awning casement window

Verified by manufacturer over a year ago

Capral Aluminium Third party certifications:
  • Declare

    Declare

    Certificate type

Thermally broken Awning or casement window to complement Futureline framing systems

Jump to:
+61 7 3816 7500 Website

Application

Residential and commercial applications

Description

Designed to complement the excellent thermal performance of the Futureline 440TB & 419TB framing systems, the Futureline Awning and Casement window system offers a stylish and functional operable window option. The 54mm sash profile incorporates a pair of high performance thermal breaks to efficiently minimise heat transfer, while internal and external weather seals combined with an overlapping frame design offer a high level of weather-tightness. The Futureline Awning/Casement window features the option of fully integrated screening and the flexibility of either sash handles or sash operator options. Robust sash construction and corner strength is assured with the use of high quality European corner clamping components.

The environmental credentials of the Futureline range extend beyond its excellent thermal design performance – the actual metal itself being formed from Ecometal™ incorporating up to 25% recycled metal content and sourced from smelters using hydro-electric energy sources.

General information

Finish

Powder coated or anodised

Material

Aluminium.

Shape

Rectangle

Size

Various sizes available. Maximum Recommended Sizes Sash Height A, H & C - 1800mm Sash Width A & H - 1500mm, C - 900.

Uniclass

Pr_30_59_98_02 Aluminium window unitsPrimary

NATSPEC National Classification System

0451a Windows and Glazed Doors – Metal

0451 Windows and Glazed Doors

SpeedSpec

08520 Metal Windows and Glazed Doors

SpecPack

08520 Metal Windows and Glazed Doors

Specification data - Aluminium window units

Standard

To AS 2047.

Dimensions and configurations

-

Manufacturer guidance

Various dimensions and configurations - see product literature.

Operation:

Manual.

Automated.

Configurations

Awning on Stays.

Awning on Hinge Head.

Casement on Stays.

Sash (h x w)

Casement 1.8m Height 0.9m Width

Awning Sash 1.8m Height 1.5m Width

Frame dimensions

Sash: 54mm x 57mm

Glazing

Double.

Triple

Performance:

Max SLS: 2200pa / ULS: 4500pa / WATER=1000pa.

Acoustics

Max Rw 38 (-1C;-3Ctr).

Cyclonic impact testing

No

Bushfire attack level (BAL)

Up to BAL29 DTS.

Hardware

Aluminium stays

Stainless steel stays

Restrictor

Chain winder

Twin chain winder

Show more

Integral accessories

Flyscreen

Bushfire screen

Security screen

Sustainability data

Country of material origin

Australia

Country of product manufacture

Australia

Recyclability

100% recyclable.

Third party certifications

Declare

Declare

Aluminium Window Systems Capral Fabricator Network

Literature

Extrusion Wall Chart Futureline Capral 2012

Extrusion Wall Chart Futureline Capral 2012

Futureline Brochure

Futureline Brochure

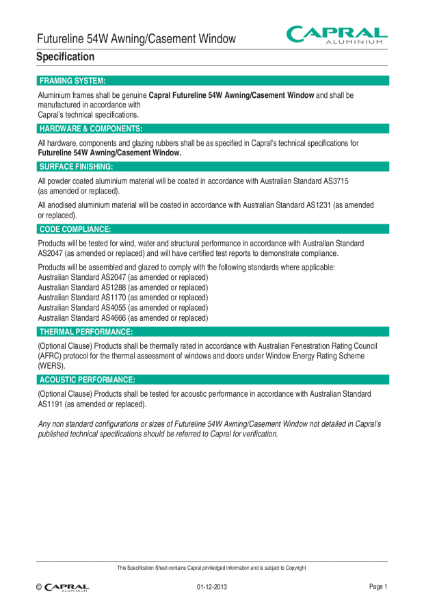

Specification Futureline Awning Casement Window

Specification Futureline Awning Casement Window

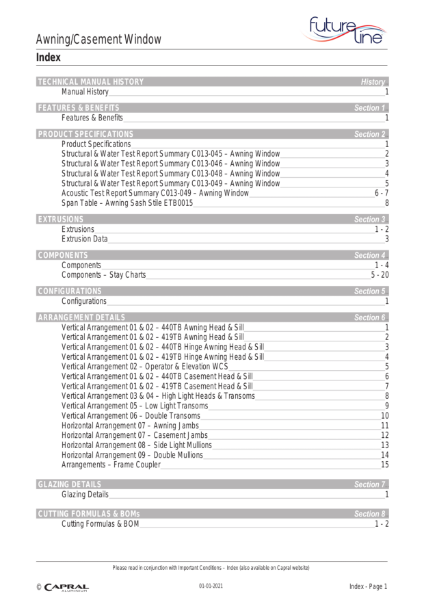

Technical-Manual_Futureline-Awning-Casement_Capral_2021_01_01

Technical-Manual_Futureline-Awning-Casement_Capral_2021_01_01
