Stainless Steel Fittings

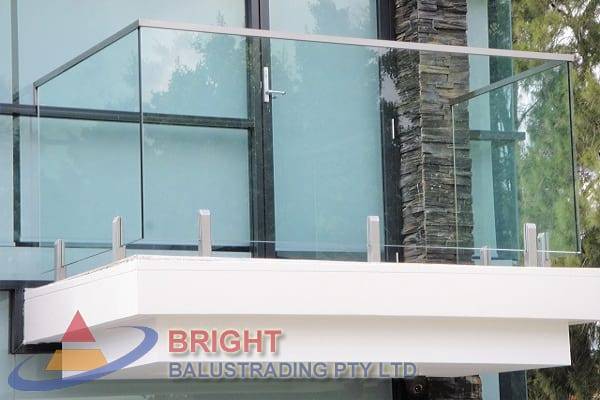

Frameless glass balustrade with spigot posts.
Suitable for residential and commercial applications, as well as luxury homes, high end constructions and fit-outs.
GLS-1 is a frameless glass balustrade system or balcony barrier supported by spigot posts and customizable top rails. Available in various glass types, top rail profiles and finishes.
Uniclass | |
NATSPEC National Classification System | 0554a Handrails, Guardrails, Balustrades and Other Barriers – Glass Balustrades 0554 Handrails, Guardrails, Balustrades and Other Barriers 0467 Glass Components |
SpeedSpec | 05525 Glass Balustrades |
SpecPack | 05525 Glass Balustrades |
Posts | Stainless steel spigots. |
Infills | Toughened glass.Toughened heat-soaked glass.Guidance for specification option: Suitable for heights of 5 m above floor level. Superclear or low iron glass.Acid-etched or sandblasted privacy glass.Tinted glass.Printed design.Toughened laminated glass. |
Rails | |
Handrails | 38 mm, round stainless steel handrails.38 mm, slotted stainless steel handrails.50 mm, round stainless steel handrails.50 mm, slotted stainless steel handrails.25 x 21 mm, slotted stainless steel handrails.Manufacturer guidanceRefers to profile configuration of top rail or glass capping. |
System accessories | LED strip lights.LED puck or spot lights. |
Finish | Satin or brushed. Mirror or polished. Powder-coated. Metal-plated, brass. Metal-plated, bronze. Manufacturer guidanceRefers to finish of spigot and top rail. |
Colour | Natural. Manufacturer guidanceIndicate desired colour for powder-coated finish. Contact manufacturer for colour availability. |
Thickness | 12 mm. 15 mm. 17 mm. 19 mm. 21 mm. Manufacturer guidanceRefers to thickness of glass panels. Other thicknesses available depending on glass type. Consult manufacturer for details. |
Loading capability | C1 or C2. Guidance for specification option: Includes areas with fixed seating adjacent to a balustrade, restaurants, bars, etc. C3. Guidance for specification option: Includes stairs, landings, external balconies, edges of roofs, etc. C5. Guidance for specification option: Includes theatres, cinemas, grandstands, discotheques, bars, auditoria, shopping malls, assembly areas, studios and retail areas including public areas of banks or building societies. Manufacturer guidanceRefers to crowd loading performance. Confirm with certifier or surveyor. |
Accessible design | To comply with AS 1428.1:2021. Non-compliant. |
Height | Manufacturer guidanceIndicate desired height. |
Mounting position | Top (floor mount). Side (wall mount). |
Surface material | Concrete. Timber-framed. Steel frame or beam. Manufacturer guidanceRefers to substructure or surface to be fixed on. |
Installation | Core drilled. Base plate. Custom base plate. Threaded rod. |
Country of product manufacture | Australia |
