J200 F

Verified by manufacturer over a year ago

FAAC Group

Carbon steel bollards.

Jump to:
1300364864 Website

Application

Permanent delimitation of pedestrian areas, shop windows and accesses, reserved parking lots for offices, residential areas, commercial or industrial sites, hospitals, public buildings, campsites, holiday and sport resorts.

Description

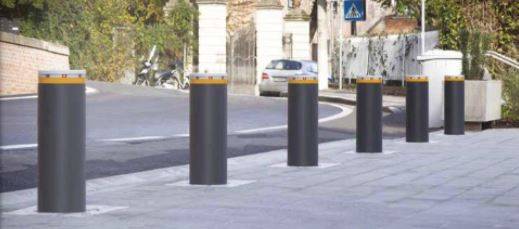

Fixed traffic bollard J200 does not require invasive installation work, nor electrical wiring. It is ideal for permanent installations to define residential pedestrian areas, or for mixed installations which also feature other automatic or semi-automatic bollards.

General information

Finish

Cataphoresis and polyester powder paint.

Metallized RAL 7021.

Material

S235JRG2 EN 10277 Steel.

Width

200 mm

Manufacturer guidance

Diameter.

Warranty description

2 years.

Guidance for specification option:

  • Free repair or replacement from date of installation.
  • Special warranty extensions may apply.

Uniclass

Pr_20_76_08_10 Carbon steel bollardsPrimary

NATSPEC National Classification System

0261b Landscape – Parking and Traffic Control

0552 Metalwork - Fabricated

0191 Sundry Items

0261 Landscape – Furniture and Fixtures

SpeedSpec

05580 Architectural Metalwork and Whitegoods

SpecPack

05500 Metalwork

02870 Unit Pavers

Specification data - Carbon steel bollards

Type

Fixed.

Material

S235JRG2 EN 10277 Steel.

Dimensions

-

Size and profiles

200 mm diameter.

Height above ground

600 mm.

Depth below ground

200 mm.

Baseplate

Aluminium (ground cover material).

Top profile

Aluminium, Grey - RAL 9006.

Finish

-

Coating

Cataphoresis and polyester powder paint.

Colour

Dark grey metallized - RAL 7021.

Design impact forces

-

Standard

To EN 124.

Value

Load class C250.

Additional requirements

25mm high reflecting strip all around the cylinder itself.

LED lights.

Guidance for specification option:

Power unit not supplied.

CorrosionTreatment

Cataphoretic coating.

Sustainability data

Contains Red List materials

No

Country of material origin

Italy

Country of product manufacture

Italy
