J275 F

Verified by manufacturer over a year ago

FAAC Group

Carbon steel bollards.

Jump to:
1300364864 Website

Application

Permanent delimitation of pedestrian areas, shop windows and accesses, reserved parking lots for offices, residential areas, commercial or industrial sites, hospitals, public buildings, campsites, holiday and sport resorts.

Description

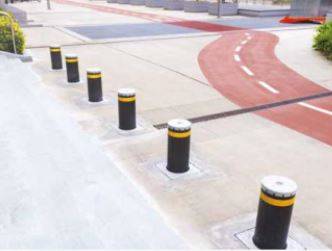

Fixed traffic bollard J275 does not require invasive installation work, nor electrical wiring. It is ideal for permanent installations to define pedestrian areas, or mixed installations which also feature other retractable bollards.

General information

Finish

Anti- corrosive Cataphoresis and polyester powder painted.

Material

Steel S235JR EN 10219 (7 mm thick).

Width

275 mm

Manufacturer guidance

Diameter.

Warranty description

2 years.

Guidance for specification option:

  •  Free repair or replacement from date of installation.
  • Special warranty extensions may apply.

Uniclass

Pr_20_76_08_10 Carbon steel bollardsPrimary

NATSPEC National Classification System

0261b Landscape – Parking and Traffic Control

0552 Metalwork - Fabricated

0191 Sundry Items

0261 Landscape – Furniture and Fixtures

SpeedSpec

05580 Architectural Metalwork and Whitegoods

SpecPack

05500 Metalwork

02870 Unit Pavers

Specification data - Carbon steel bollards

Type

Fixed.

Material

S235JR EN 10219 steel.

Dimensions

-

Size and profiles

275 mm diameter.

Height above ground

600 mm.

800 mm.

Baseplate

450 l x 450 w x 55 h (mm).

Guidance for specification option:

  • Aluminium RAL 9006 with Anti-corrosion Rilsan® resin treatment.
  • 30 mm baseplate thickness.

Top profile

Aluminium RAL 9006 with Anti-corrosion Rilsan® resin treatment.

Finish

-

Coating

Cataphoresis and polyester powder painted.

Colour

Dark grey metallized - RAL 7021.

Design impact forces

-

Standard

To EN 124.

Value

Load class C250.

Additional requirements

55 mm high reflecting strip.

LED lights.

Guidance for specification option:

Power unit not supplied.

Accessories

JC275 Pit cover.

Led lights kit.

CorrosionTreatment

Cataphoretic coating.

Sustainability data

Contains Red List materials

No

Country of material origin

Italy

Country of product manufacture

Italy
