Lifeline Speedlane Swing

Verified by manufacturer over a year ago

Boon Edam Australia Pty Ltd Third party certifications:
  • QA Certificate

    QA Certificate

    Certificate type

Secure entry management system for entering and moving around buildings.

Jump to:
BOS
+61426703326 Website

Application

Suitable for foot traffic only.

  • Corporate offices
  • Multi-story tenant buildings
  • Medical and pharmaceutical facilities
  • Schools, universities, and colleges
  • Sports facilities
  • Government and embassy buildings

Description

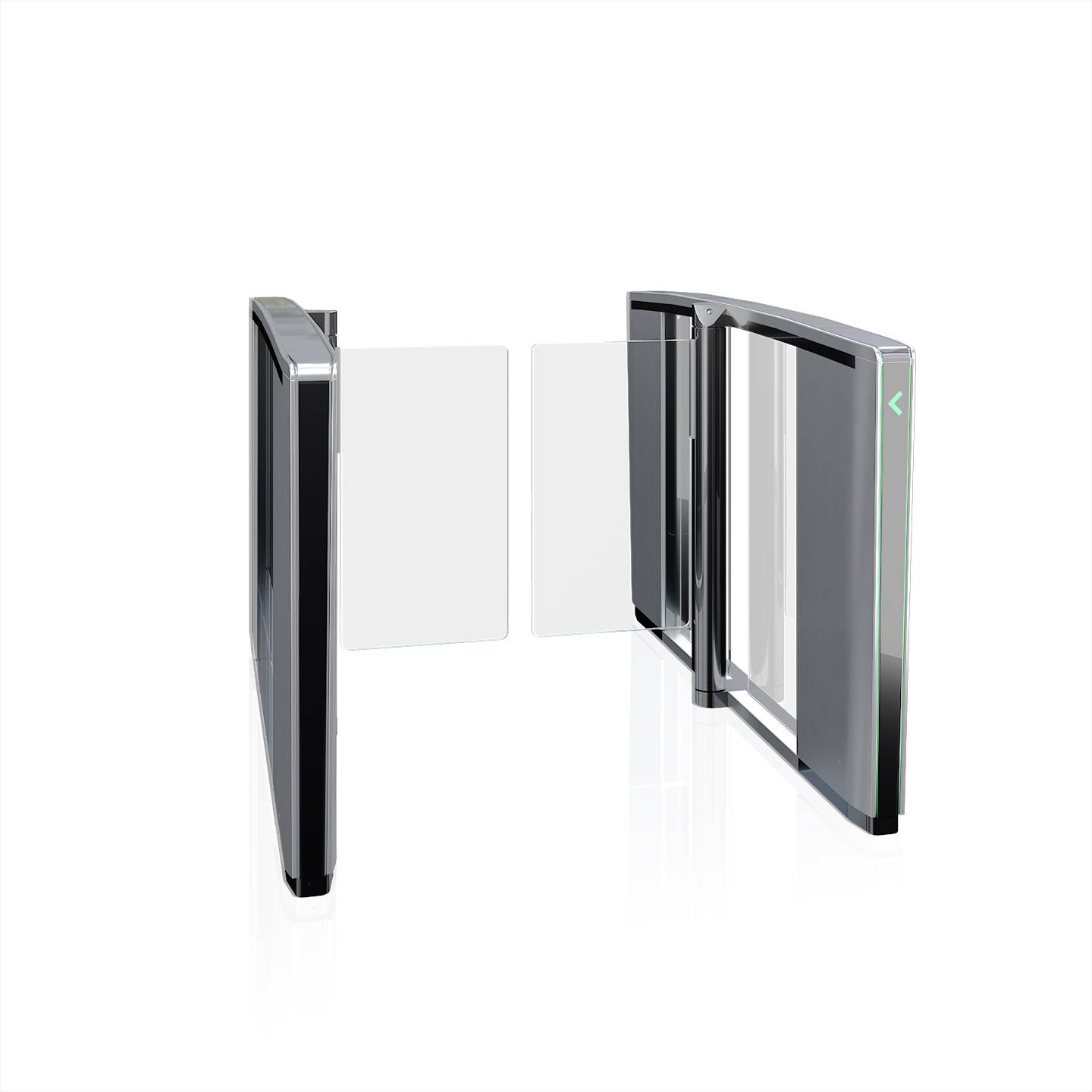

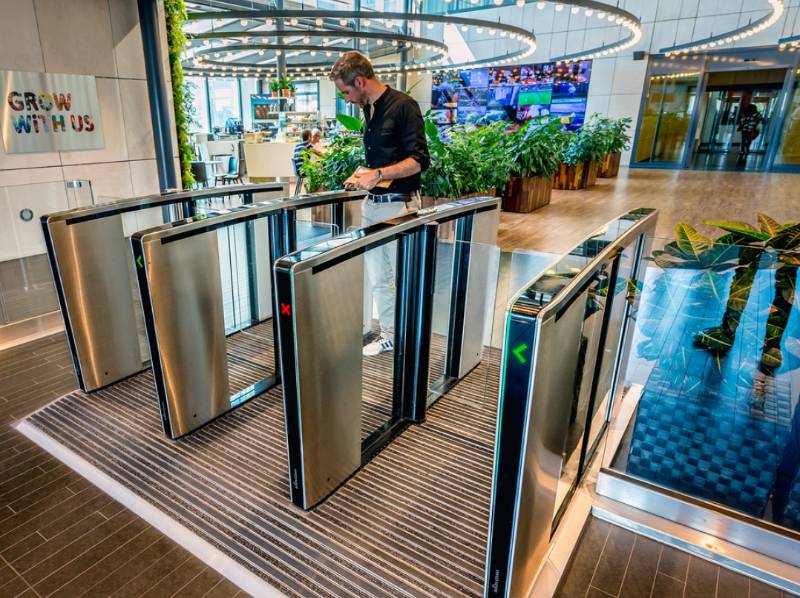

Narrow speed gate with swinging door wings. It acts as a boundary between public and private environments and has been thoughtfully crafted with design aesthetics in mind. The smooth glass casing houses intuitive-coloured LED lights which glide along the cabinet top, guiding users from entry through authorization to the secured area.

It effectively detects tailgating, and the aesthetics can be easily adjusted to either blend in or stand out, depending on requirements.


Features and benefits:

  • Tailgating detection.
  • Smooth, swinging-motion glass barriers.
  • Slim, V-shaped, tapered cabinets with ergonomic design and narrow footprint.
  • High quality materials.
  • Flexible lane configurations as well as ability to stand alone.
  • Rests in a low energy 'sleep' mode and activates upon approach.
  • Universally understood and proven display symbols.
  • Additional flexible options available to fine-tune or ‘Level Up’.
  • Relieves pressure from security or reception staff.
  • Coordinates with existing building décor and design.
  • Built to last.


General information

Color

-

Manufacturer guidance

Stainless steel. Custom finishes and all available colour in the RAL colour chart.

Finish

Anodized

Powder-coated

Material

Stainless steel

Steel

Length

1776 mm

Width

106 mm

Height

1035 mm

Warranty description

One year

Manufacturer guidance

12 month standard product warranty. Extended warranty available by request.

Uniclass

Pr_30_59_34_88 Stainless steel half-height turnstilesPrimary

SpeedSpec

08200 Doors and Door Frames

NATSPEC National Classification System

0451 Windows and Glazed Doors

0451a Windows and Glazed Doors – Metal

Specification data - Stainless steel half-height turnstiles

Finish

-

Worked finish

Stainless anodized.

Turnstile type

Speed gate - two wings swing.

Speed gate - one wing swing.

Rotation

Bi-Directional.

Operation

Electrical.

Dimensions

-

Overall width

827 mm.

Guidance for specification option:

Overall Lane Width (2 wings - single lane).

712 mm.

Guidance for specification option:

Narrow - 1 wing.

1127 mm.

Guidance for specification option:

Wide - 2 wings.

Overall depth

1776 mm.

Guidance for specification option:

Cabinet length.

Overall height

Overall cabinet height - 1035 mm.

Passage width

615 mm.

Guidance for specification option:

Standard (2 wings).

500 mm.

Guidance for specification option:

Narrow (1 wing).

915 mm.

Guidance for specification option:

Wide (2 wings).

Control units

-

Device acceptance

Card reader.

Lift destination control.

Biometric reader.

Operational voltage

80 W.

60 W.

Guidance for specification option:

Stationary

40 W.

Guidance for specification option:

Sleep mode

Capacity

25- 30 people per a minute.

Cabinet width

106 mm.

Barrier Height

940 mm.

1200 mm.

1400 mm.

1600 mm.

1800 mm.

Weight

100 kg.

Accessibility

Yes

Leaf

One wing.

Two wings.

Mode of operation

Boon touch.

Tailgate.

Safety controler.

Card reader.

Facial recognition.

Show more

Safety

Fail Safe Operation.

Fire Alarm Connection.

Safety sensor.

Sound alarm.

Booking signal.

Show more

Manufacturer guidance

Safety security level 3.

Power supply

110-240 VAC, 50 / 60 Hz.

Security level

Level 3.

Operating temperature

-15°C to +50°C.

Access card reader

Dimension: 55 x 130 x 50 mm (W x L x H)

MountingMethod

Top mount

Sustainability data

Country of material origin

Netherlands

Country of product manufacture

Netherlands

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
IFC
-

1

Revit
-

1

Third party certifications

QA Certificate

QA Certificate

Certificate of Approval - ISO 14001:2015

QA Certificate

QA Certificate

Certificate of Approval - ISO 9001:2015

Literature

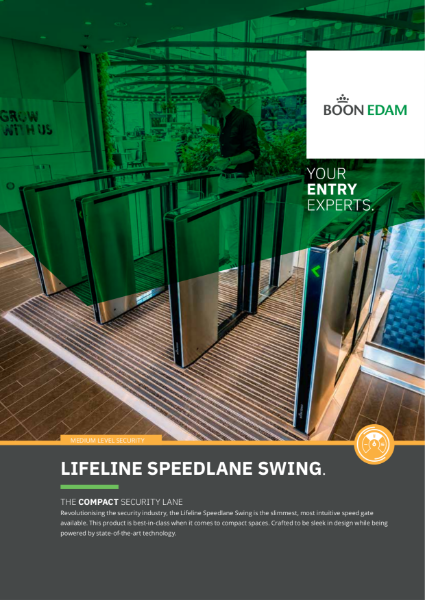

Lifeline Speedlane Swing - compact security lane

Lifeline Speedlane Swing - compact security lane

Speedlane & Schindler Intergration

Speedlane & Schindler Intergration

Touchless solutions - safer, more efficient contactless pathways

Touchless solutions - safer, more efficient contactless pathways

Touchless - automatic security entrances

Touchless - automatic security entrances

Boontouch - remote control access for safer entry

Boontouch - remote control access for safer entry

Boon Edam Australia - your entry experts

Boon Edam Australia - your entry experts

Master Security Licence

Master Security Licence

Case studies

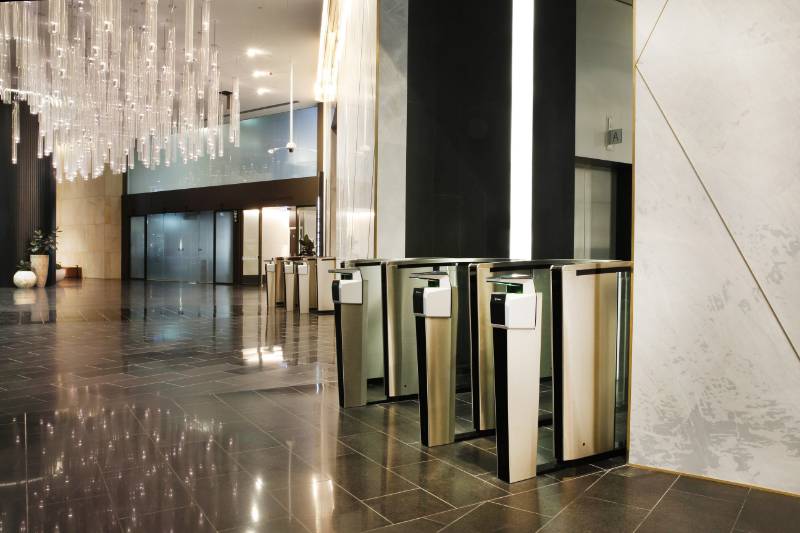

Dexus Gateway Building, Sydney

Dexus Gateway Building, Sydney

Commercial Office - 32-41 West Street, Reading

Commercial Office - 32-41 West Street, Reading

Tele2 - Headquarters, Sweden

Tele2 - Headquarters, Sweden

Liberty Global

Liberty Global

Riverscape - The Renovation, London

Riverscape - The Renovation, London

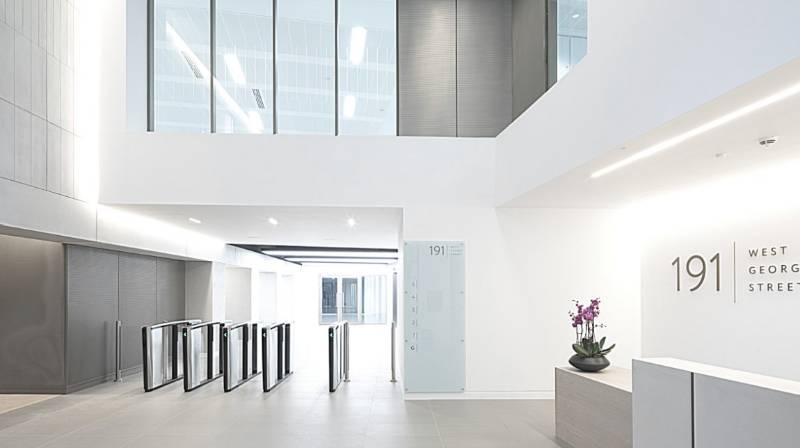

191 West George Street, Glasgow

191 West George Street, Glasgow

The River Building, London

The River Building, London

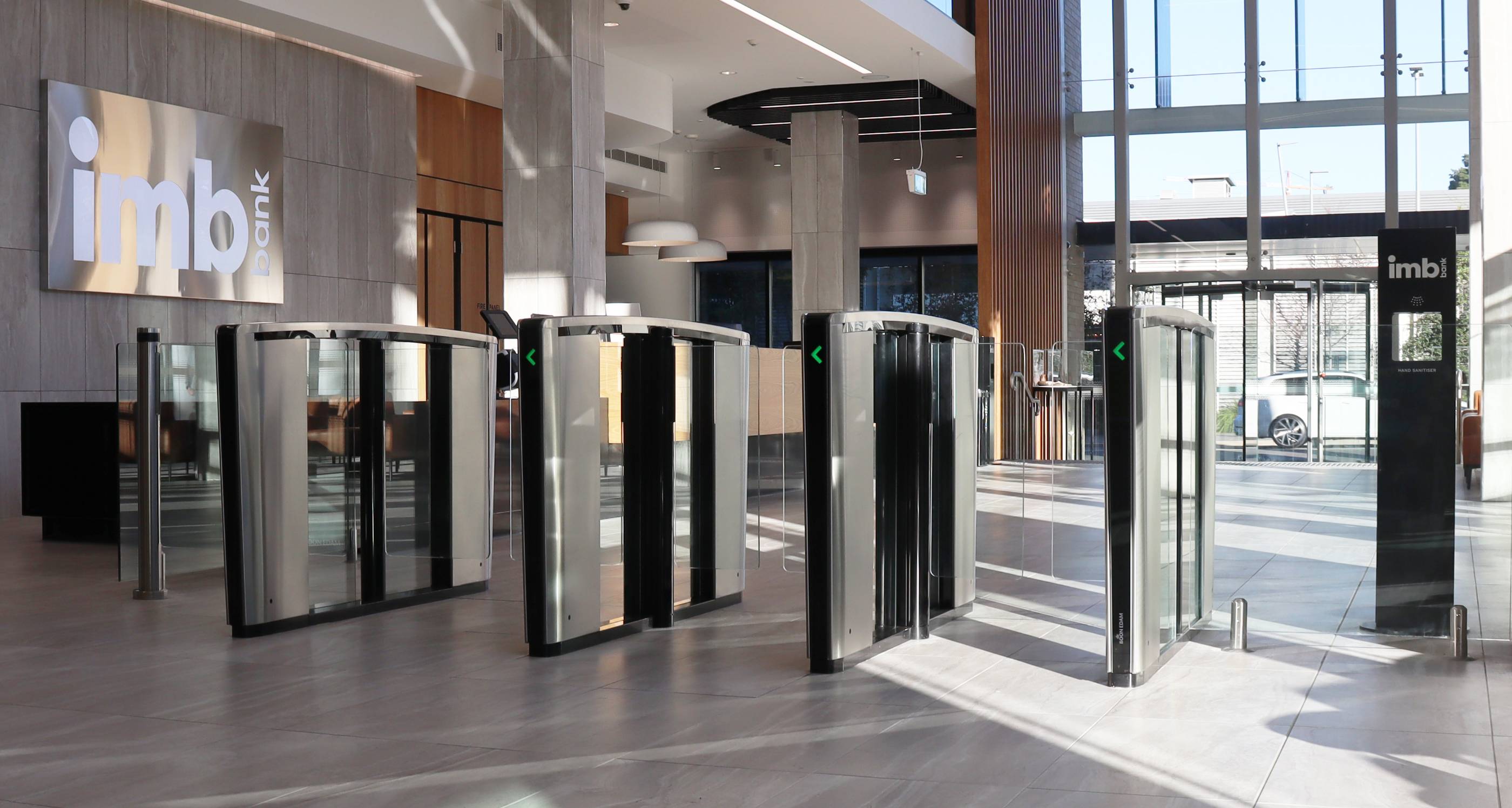

IMB Bank Head Office - Wollongong NSW
