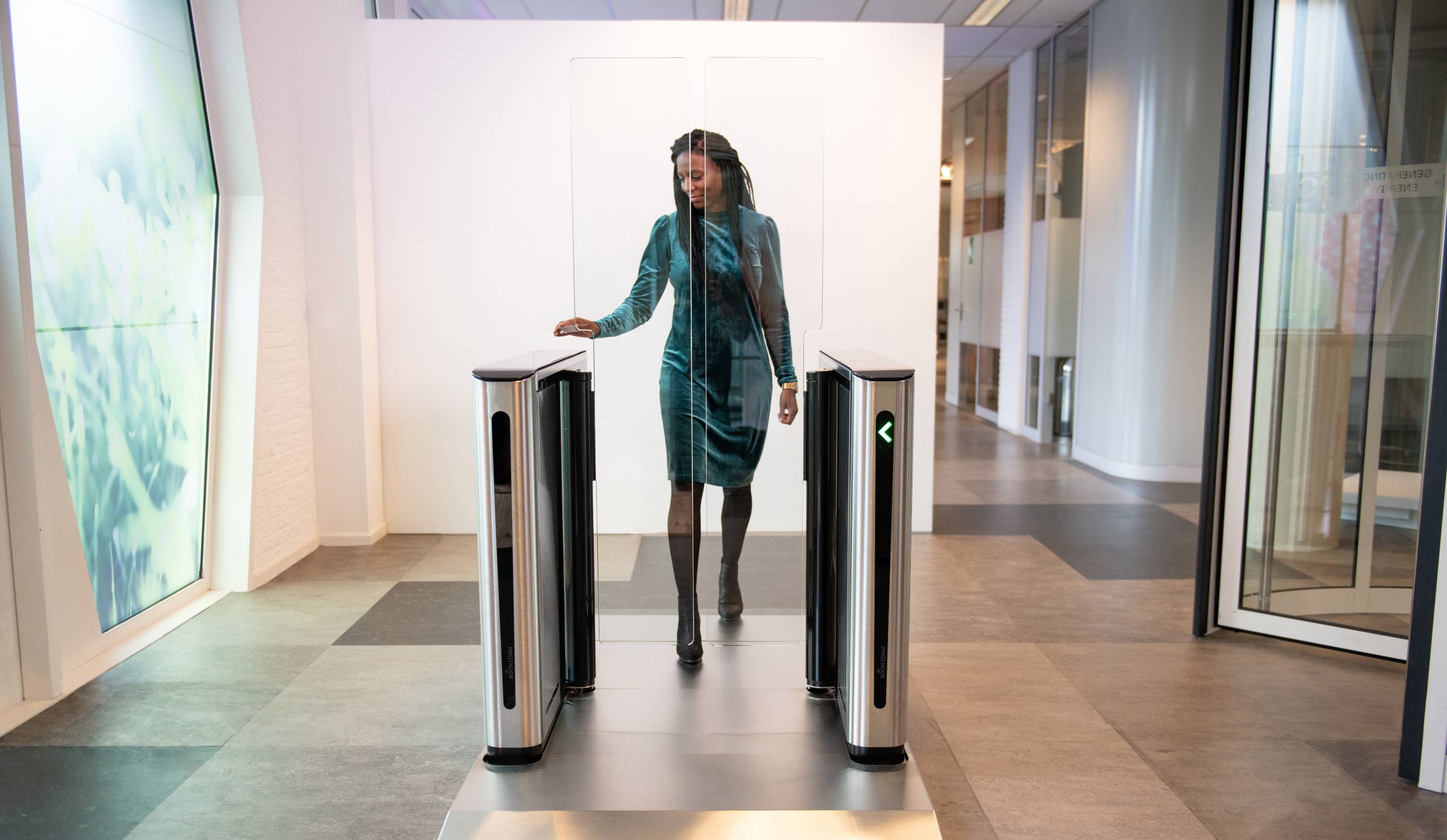

Speedlane Compact - Swing Barrier Gate - Swing type barrier gate

Name: Speedlane Compact - Swing Barrier Gate - Swing type barrier gate
Brand: Boon Edam Australia Pty Ltd
SKU: pKzPzoARj5sENVrG3Qq9FZ

Verified by manufacturer over a year ago

Product certifications:

Short speed lane swing barrier gate

Jump to:

BOS

Application

For small and valuable areas of real estate spaces.

Short speed lane swing barrier gate.

Features and benefits:

Premium quality materials.
Intuitive user guidance
Tailgating, safety and object detection sensor sets, as standard.
Easy installation.
Generous interior space in the cabinet to allow a large variety of mounting positions for access control integration.
Smooth, swing motion glass barriers
Short V-shaped cabinet with ergonomic design and small footprint.
Flexible lane configurations.
Universally understood and proven display symbols
Additional flexible options available to fine-tune or ‘Level Up’.
Relieves pressure from security or reception staff.
Coordinates beautifully with existing building décor and design.
Short cabinet length optimises use of valuable floor space.
Built to last.

Color	Silver
Finish	Powder-coated Anodized
Material	Stainless steel Steel
Length	1200 mm
Width	150 mm
Height	990 mm
Warranty description	One year Manufacturer guidance 12 month standard product warranty. Extended warranty available on request.

Uniclass	Pr_30_59_34_88 Stainless steel half-height turnstilesPrimary
NATSPEC National Classification System	0451a Windows and Glazed Doors – Metal 0451 Windows and Glazed Doors
SpeedSpec	08200 Doors and Door Frames

Standards	Machine Directive (2006/42/EC) \| EMC Directive (2004/108/EC) \| RoHS Directive (2011/65/EU)
Turnstile type	Two wings - swing door.
Rotation	Bi-directional.
Operation	Electrical.
Dimensions	-
Overall width	Cabinet width 150 mm.
Overall depth	1200 mm.
Overall height	990 mm .
Passage width	615 mm. 915 mm.
Control units	-
Device acceptance	Card reader. Biometric reader Lift destination control.
Operational voltage	60 W.

Passage width	890 mm 1800 mm
Weight	100 kg.
Capacity	20—30 people per minute. Guidance for specification option: Dependent on access control system.
Wheelchair access	Yes
Access control	Access control device. Card reader.
Access card reader	Dimension 200 x 90 x 70 mm (W x L x H)
Mounting method	Top mount.
Operating temperature	-15 to +50°C.
Power supply	110-240 VAC, 50 / 60 Hz.
Model	Speed Lane Compact Swing 615 mm. Speed Lane Compact Swing 915 mm. Speed Lane Compact Swing 615—615 mm. Speed Lane Compact Swing 615—915 mm. Speed Lane Compact Swing 915—915 mm.
Sensor	Safety sensor. Fire alarm connection. Guidance for specification option: Emergency egress settings depending on local regulations or by request to check with the manufacturer. Fail safe operation. Guidance for specification option: Operation in case of power outage. Security sound alarm. Security sensor. Manufacturer guidance Safety security level 1.
