LYSAGHT BONDEK PLUS® 2P

Name: LYSAGHT BONDEK PLUS® 2P
Brand: Lysaght
SKU: aQvo5qzAZBcWay1MXa6p4c

Verified by manufacturer over a year ago

Lysaght

Structural decking system for concrete floors with accessories to allow easy suspension of ceilings. Available in SA.

Jump to:

+61 1800 800 789 Website

Application

Suitable for both concrete and steel frame construction. Available in SA only.

AUSTRALIAN STANDARDS

Complies with Section B of the Building Code of Australia and with the relevant Australian Standards (AS 3600:2009 and AS/NZS 1170.0:2002).

Description

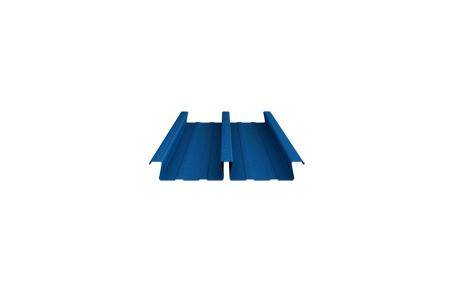

LYSAGHT BONDEK PLUS® 2P is a traditional flat pan concrete formwork profile with superior spanning capabilities, less deflection and greater composite strength than similar re-entrant profiles. Some of its features include:

Patented corner embossments for stronger composite strength.
Dovetail ribs for superior spanning (resists lateral deflection by up to 10%).
Works as composite slab saving on concrete and reinforcement costs.

General information

Finish	Zinc-coated.
Material	Steel.

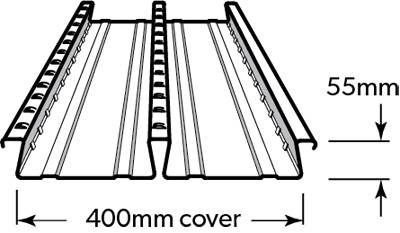

Width	400 mm
Height	55 mm
Warranty description	- Manufacturer guidance Backed by a BlueScope Steel warranty.

Uniclass	Pr_25_71_51_89 Steel profiled sheetPrimary
SpecPack	03310 Concrete
SpeedSpec	03310 Concrete
NATSPEC National Classification System	0310 Concrete - Combined

Specification data - Steel profiled sheet

Standards	To AS 1397.
Grade	G550.
Coating class	Z350.
Base Metal thickness (BMT)	0.60. Guidance for specification option: Mass: 3.43 kg/m. Coverage: 116.65 m²/t. 0.75. Guidance for specification option: Mass: 4.22 kg/m. Coverage: 94.7 m²/t. 0.90. Guidance for specification option: Available on request. 1.00. Guidance for specification option: Mass: 5.55 kg/m. Coverage: 72.09 m²/t.
Profile	-
Form	Trapezoidal.
Height	55 mm.
Cover width	400 mm.
Colour	Natural.
Finish	Zinc-coated.

Slab depth	100–250 mm. Manufacturer guidance Indicates compatible slab depths.
Slab size	Dependant on slab depth, BMT and props per span. Manufacturer guidance Indicates maximum slab span. Refer to Construction Manual and General Engineering Notes from manufacturer.
