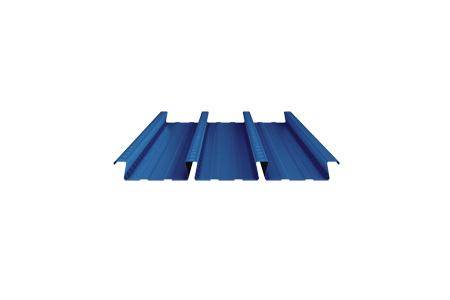

LYSAGHT BONDEK PLUS®

Verified by manufacturer over a year ago

Lysaght

Structural decking system for concrete floors with accessories to allow easy suspension of ceilings. Available in QLD and NSW.

Jump to:
+61 1800 800 789 Website

Application

Suitable for both concrete and steel frame construction. Available in standard DECKFORM® steel in QLD/NT or BONDEK BLUE® in NSW/ACT.


AUSTRALIAN STANDARDS

Complies with Section B of the Building Code of Australia and with the relevant Australian Standards (AS 3600:2009 and AS/NZS 1170.0:2002).

Description

LYSAGHT BONDEK PLUS® is a traditional flat pan concrete formwork profile with superior spanning capabilities, less deflection and greater composite strength than similar re-entrant profiles. Some of its features include:

  • Patented corner embossments for stronger composite strength.
  • Dovetail ribs for superior spanning (resists lateral deflection by up to 10%).
  • Works as composite slab saving on concrete and reinforcement costs.

General information

Finish

Zinc-coated.

Material

Steel.

Width

600 mm

Height

55 mm

Warranty description

-

Manufacturer guidance

Backed by a BlueScope Steel warranty.

Uniclass

Pr_25_71_51_89 Steel profiled sheetPrimary

SpecPack

03310 Concrete

SpeedSpec

03310 Concrete

NATSPEC National Classification System

0310 Concrete - Combined

Specification data - Steel profiled sheet

Standards

To AS 1397.

Grade

G550.

Coating class

Z350.

Base Metal thickness (BMT)

0.60.

Guidance for specification option:

Mass: 5.03 kg/m.

Coverage: 119.3 m²/t.

0.75.

Guidance for specification option:

Mass: 6.19 kg/m.

Coverage: 96.9 m²/t.

0.90.

Guidance for specification option:

Available on request.

1.00.

Guidance for specification option:

Mass: 8.14 kg/m.

Coverage: 73.7 m²/t.

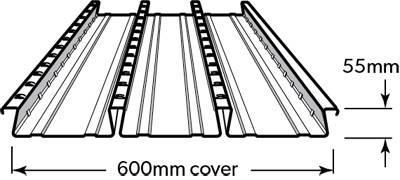

Profile

-

Form

Trapezoidal.

Height

55 mm.

Cover width

600 mm.

Colour

Natural.

Finish

Zinc-coated.

Slab depth

100–250 mm.

Manufacturer guidance

Indicates compatible slab depths.

Slab size

Dependant on slab depth, BMT and props per span.

Manufacturer guidance

Indicates maximum slab span.


Refer to Construction Manual and General Engineering Notes from manufacturer.

Sustainability data

Country of product manufacture

Australia
