Shadowline® 305 WA Non-Cyclonic (COLORBOND® Steel)

Name: Shadowline® 305 WA Non-Cyclonic (COLORBOND® Steel)
Brand: Fielders
SKU: osfhow16WdpCCiAvvuhUho

Verified by manufacturer over a year ago

COLORBOND® Steel

Fielders

Roofing and walling profile with two pans. Available in WA only.

Jump to:

+61 8 8292 3611 Website

Application

Suitable for both roofing and walling applications. Available in Western Australia only.

AUSTRALIAN STANDARDS

Published load capacity data is derived from testing in accordance with:

AS 4040.0:1992.
AS 4040.1:1992.
AS 4040.2:1992.
AS 4040.3:2018.

Published Limit state capacities are suitable to determine structural adequacy and serviceability in accordance with:

AS/NZS 1170.0:2002 Structural design actions, Part 0: General principles.
AS/NZS 1170.1:2002 (Reconfirmed 2016) Structural design actions, Part 1: Permanent, imposed and other actions.
AS/NZS 1170.2:2011 (Reconfirmed 2016) Structural design actions, Part 2: Wind actions.
AS/NZS 1170.3:2011 (Reconfirmed 2016) Structural design actions, Part 3: Snow and ice actions.

Published installation guidelines align with AS 1562.1:2018 Design and Installation of sheet and wall cladding.

Fielders steel products comply with:

AS 1397:2011 Continuous hot-dip metallic coated steel sheet and strip - Coatings of zinc and zinc alloyed with aluminium and magnesium.
AS/NZS 2728:2013 Prefinished/prepainted sheet metal products for interior/exterior building applications - Performance requirements.
AS 1397:2011 which defines the coating types and classes and steel grades for hot dip metallic coated steel.

Description

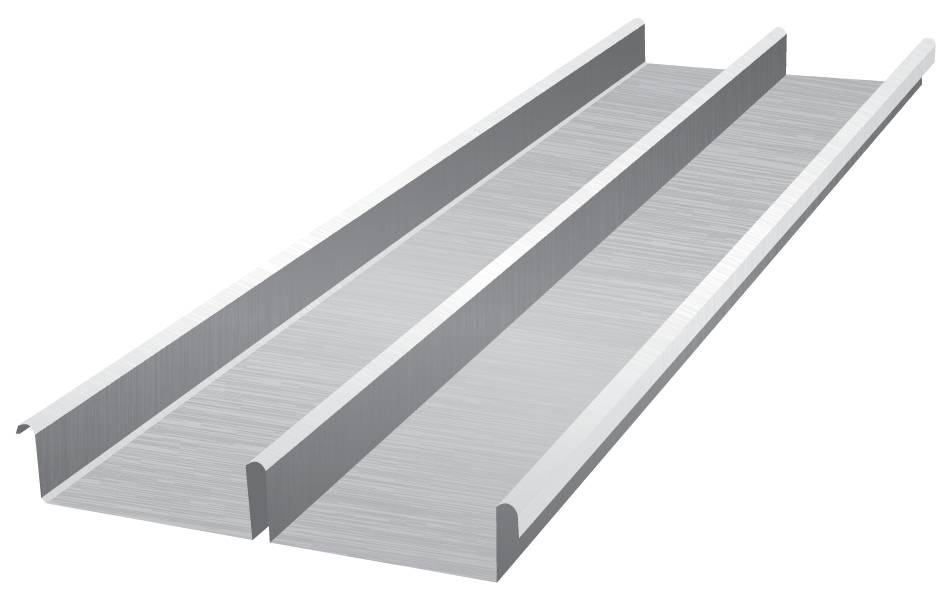

Shadowline® 305 is a roofing and walling profile with two pans. Its panels can be button punched or pierced-fixed, depending on desired use. Some of its features include:

Can be used down to a minimum of one degree pitch for roof decks.
Can be fixed horizontally or vertically as wall cladding.
Rolled to any transportable length.
Available in a wide array of finishes and colours.

General information

Material	Steel.
Shape	Rectangle
Warranty description	- Manufacturer guidance Covered by BlueScope material warranties, subject to project assessment and terms and conditions.

Uniclass	Pr_25_71_51_89 Steel profiled sheetPrimary
SpeedSpec	07610 Roofing and Roof Plumbing 07462 Cladding External Walls
NATSPEC National Classification System	0436 Cladding – Profiled and Seamed Sheet Metal 0423 Roofing – Profiled Sheet Metal
SpecPack	07600 Metal Roofing, Siding and Roof Plumbing

Specification data - Steel profiled sheet

Standards	To AS 1397 and AS/NZS 2728.
Grade	G300.
Coating class	AM100.
Base Metal thickness (BMT)	0.70 mm. Guidance for specification option: Total Coated Thickness of 0.75 mm. Manufacturer guidance Indicated Total Coated Thickness (TCT) is based on standard COLORBOND®, single-sided material.
Profile	-
Height	48 mm.
Cover width	305 mm. Manufacturer guidance Provide manufacturing tolerance of ±5 mm.
Colour	Basalt. Classic Cream. Cottage Green. Cove. Deep Ocean. Dune. Evening Haze. Gully. Ironstone. Jasper. Mangrove. Manor Red. Monument. Night Sky. Pale Eucalypt. Paperbark. Shale Grey. Surfmist. Terrain. Wallaby. Windspray. Woodland Grey.
Finish	Painted.
Solar absorptance value (maximum)	0.32–0.96. Manufacturer guidance Value is dependant on colour. Contact manufacturer for further assistance.

Material	COLORBOND® steel.
Length	- Manufacturer guidance Sheets are supplied custom cut to length to suit project requirements. Transportation limits apply. To address thermal expansion and contraction, recommended maximum sheet lengths are 24 m for roofing and 15 m for walling applications. Where lengths exceed 24 m, step joints or concealed decks are recommended. Provide manufacturing tolerances of ±10 mm in length and ±5 mm in width.
Span	900 mm. 1200 mm. 1500 mm. 1800 mm. 1800 mm. 2100 mm. 2400 mm. 2700 mm. 3000 mm. 3300 mm. Show more Manufacturer guidance Varies depending on wind region, profile thickness and span type. Maximum recommended spans are as follows: For roofing: 1500 – 2500 mm. For walling: 1400 – 2700 mm. For pierced-fixed roofing and walling: 3000 mm.
Thermal expansion	2.9 mm average per 5.0 m. Manufacturer guidance Computed at 50° C change.
Frame or support	Steel (1.0 to 3.5 mm). Guidance for specification option: If button punched, use 10g-16 x 16 mm Wafer Head Tek screws. If pierced-fixed, use 14g-10 x 25 mm Hex Head Tek screws. Timber Hardwood. Guidance for specification option: If button punched, use 10g-12 x 25 mm Wafer Head Type 17 screws. If pierced-fixed, use 14g-10 x 25 mm Hex Head Type 17 screws. Timber Softwood. Guidance for specification option: If button punched, use 10g-12 x 25 mm Wafer Head Type 17 screws. If pierced-fixed, use 14g-10 x 25 mm Hex Head Type 17 screws. Steel Battens (0.55 to 1.0 mm). Guidance for specification option: If button punched, use 10g-16 x 16 mm Wafer Head Tek screws. If pierced-fixed, use 14g-10 x 25 mm Hex Head Tek screws. Manufacturer guidance Refers to recommended supports and fasteners if product is to be installed without insulation.
Mass	9.53 kg/m² (COLORBOND® steel). 9.36 kg/m² (ZINCALUME® steel).
Insulation	- Manufacturer guidance When insulation thickness up to 50 mm are installed, screws may need to be increased in number depending on insulation thickness and density. When insulation is required, Fielders® recommends the use of a thermal spacer.
Installation	Button punched. Pierced-fixed.

Sustainability data

Country of material origin	Australia
Country of product manufacture	Australia
Recyclability	100% Recyclable.
