Standard Deluxe Robe Frames

Verified by manufacturer over a year ago

Metroll

Customisable robe frames. Only available in WA.

Jump to:
+61 8 9365 5444 Website

Application

Suitable for wardrobes and cabinets.

Description

Standard Deluxe Robe Frames are robe frames offered in customisable combinations of 2, 3, 4, 5 or 6 doors. Some features of these frames include:

  • Customisable left-hand and right-hand combinations.
  • A shelf rail as an optional extra.
  • Special sizes available on request.

General information

Shape

Standard profile.

Material

Steel.

Size

-

Manufacturer guidance

Maximum door thickness is 38 mm.

Uniclass

Pr_30_59_23_11 Carbon steel door framesPrimary

SpecPack

08200 Doors, Door Frames and Hatches

NATSPEC National Classification System

0453 Doors and Access Panels

SpeedSpec

08200 Doors and Door Frames

Specification data - Carbon steel door frames

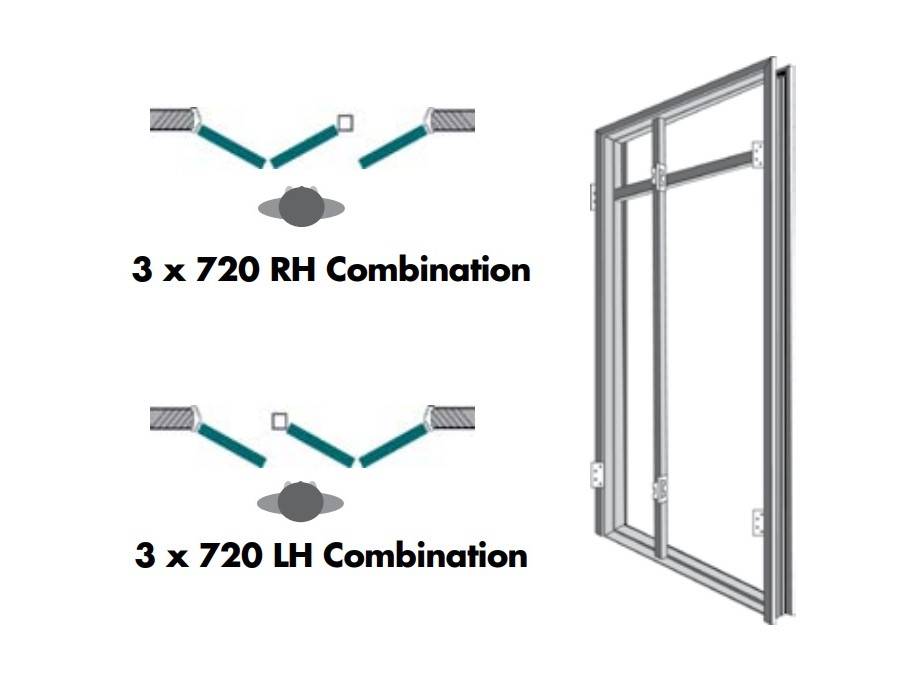

Configuration

2-door combination.

3-door combination with single door at left side.

3-door combination with single door at right side.

4-door combination.

5-door combination with single door at left side.

5-door combination with single door at right side.

6-door combination.

Dimensions

-

Width and height

-

Manufacturer guidance

Maximum door thickness is 38 mm.

Ancillary components

Slimline, 100 x 75 loose-pin hinges.

Guidance for specification option:

Comes as standard to all Metroll Frames.

Accessories

Pull through rubber buffers (white).

Extra 100 x 75 x 1.6 mm hinge (fitted).

Corrugated, off set brick ties.

Striker kits.

Stud framing clips.

Show more

Sustainability data

Country of product manufacture

Australia

Literature

Metroll Metal Door Frames Design Guide

Metroll Metal Door Frames Design Guide
