Teck 90 - Armoured cable

Verified by manufacturer 1 month ago

Northern Cables

Northern Cables Inc.’s TECK90 is an interlocked armoured cable for use in petro-chemical, pulp and paper, and other industrial application environments.

1 888 524 5050 Website

Application

  • CSA C22.2 No. 131
  • FT4
  • -40 C to +90 C
  • HL
  • AG14
  • Sunlight Resistance
  • Direct Burial

Description

Copper Conductor

TECK90 can be used in open and concealed wiring, direct burial, and in hazardous locations.The insulated conductors are made with cross-linked polyethylene and twisted with an uninsulated ground wire. The twisted core is covered with a PVC jacket, then covered with either interlocked aluminum or galvanized steel, and covered with a PVC jacket over the armour.


TECK90 is manufactured to CSA C22.2#131 and CSA C22.2 #174 to allow it to meet the certain CSA tests including; flame test FT4,-40C cold temperature impact test, low acid gas and sunlight resistance.

TECK90 is available in 600 and 1000-volt constructions from #14 to 500 kcmil in copper. Cables can be manufactured up to 50 conductors. Custom cables are available upon request including composites, vertical riser, and coloured jackets.


Aluminum Conductor

TECK90 is available in 1000-volt constructions from #8 to 750 kcmil in 8000 series aluminum ACM conductor. Cables can be manufactured in single conductor up to 4 conductors. Custom cables are available upon request including composites, vertical riser, and coloured jackets.

Literature

Teck90 - Copper Conductor - Single Conductor

Teck90 - Copper Conductor - Single Conductor

Teck90 - Copper Conductor - Large Sizes

Teck90 - Copper Conductor - Large Sizes

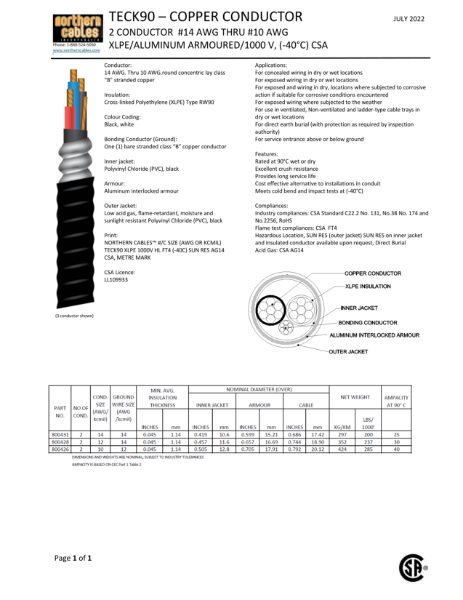

Teck90 - Copper Conductor - 1000V

Teck90 - Copper Conductor - 1000V

Teck90 - Composite - 600V

Teck90 - Composite - 600V

TECK90 Single Aluminum Conductor 1000 Volts

TECK90 Single Aluminum Conductor 1000 Volts

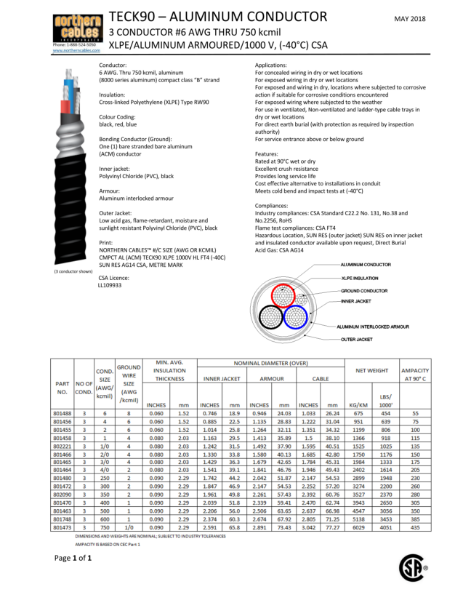

TECK90 Large Sizes 8 to 750 Aluminum 1000 Volts

TECK90 Large Sizes 8 to 750 Aluminum 1000 Volts

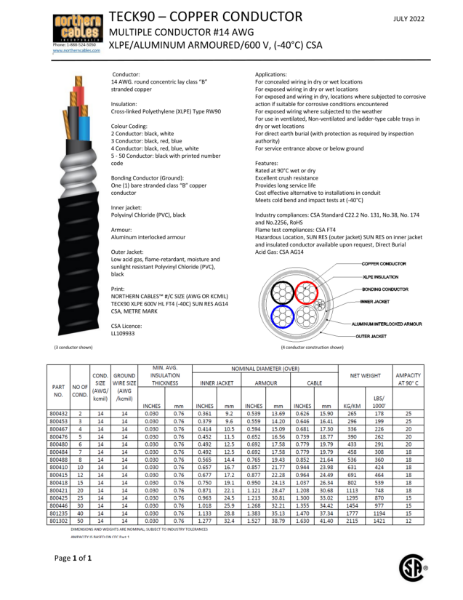

TECK90 Circuit Size 600 Volts

TECK90 Circuit Size 600 Volts

TECK90 Circuit Size 1000 Volts

TECK90 Circuit Size 1000 Volts

Teck90 Vertical - Copper Conductor 1000V

Teck90 Vertical - Copper Conductor 1000V

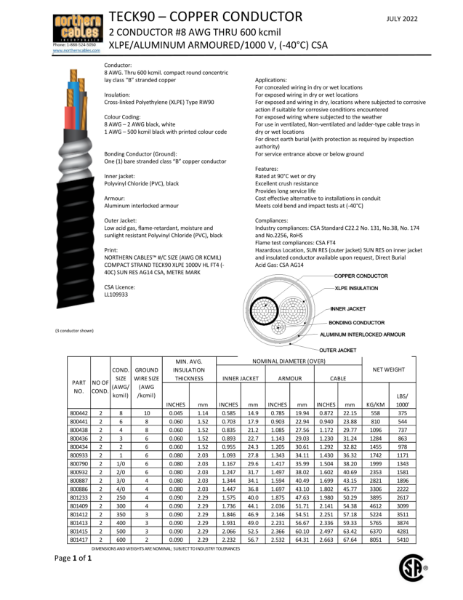

TECK90 Large Sizes 8 to 500 Copper 1000 Volts

TECK90 Large Sizes 8 to 500 Copper 1000 Volts

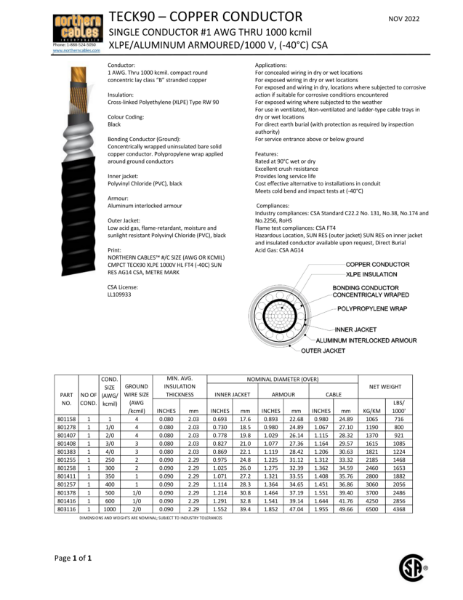

TECK90 Single Conductor 1 to 1000 Copper 1000 Volts

TECK90 Single Conductor 1 to 1000 Copper 1000 Volts

TECK90 Variable Frequency Drive 1000 Volts

TECK90 Variable Frequency Drive 1000 Volts
