Thermafiber RainBarrier Mineral Wool Insulation

Verified by manufacturer 6 months ago

Owens Corning Third party certifications:
  • EPD

    EPD

    Certificate type

Thermafiber® RainBarrier® continuous insulation semi-rigid products are designed for exceptional performance in rain screen and cavity wall construction applications.

Jump to:
BOS
5148937200 Website

Application

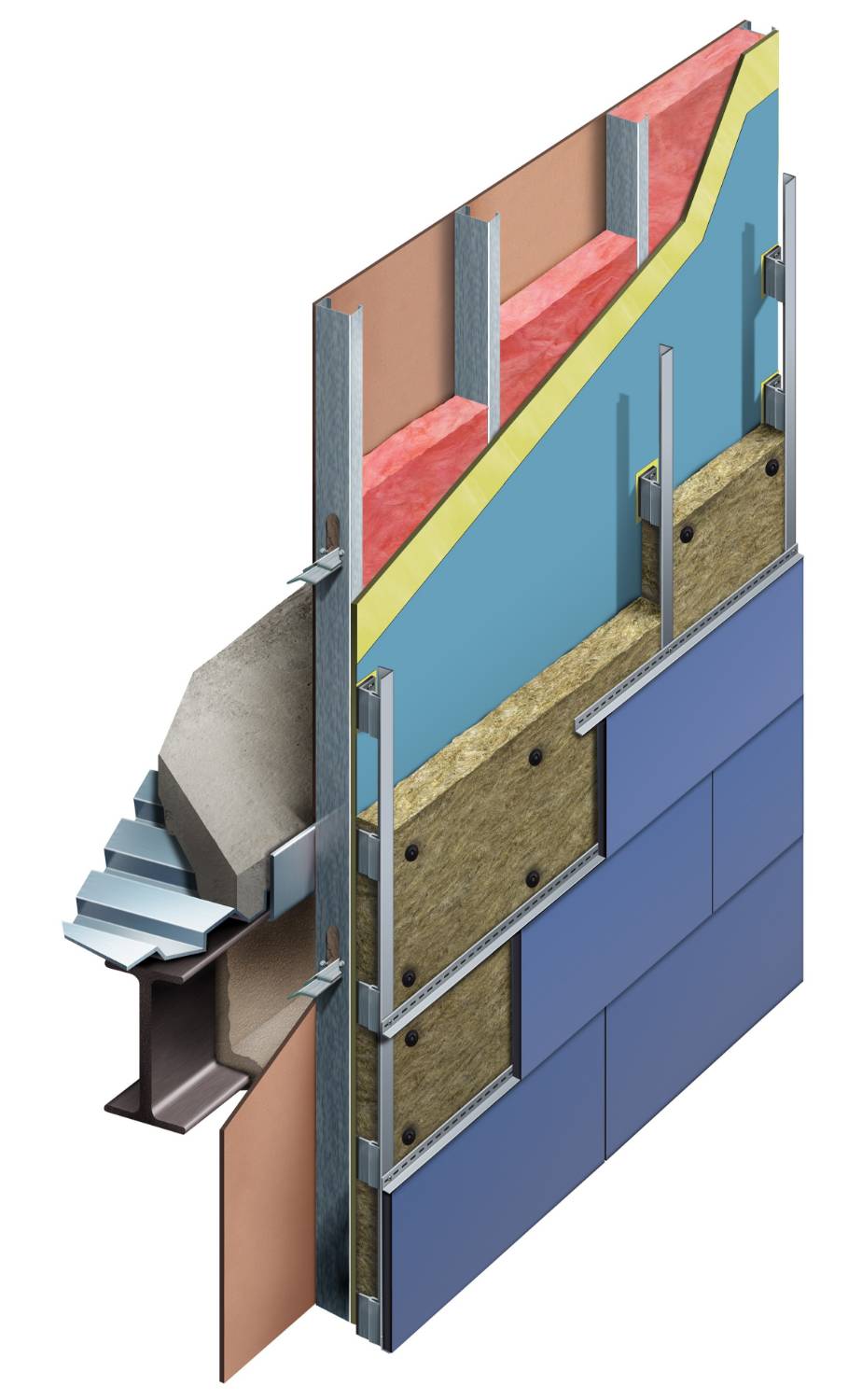

Designed for exceptional performance in rain screen and cavity wall construction applications.

Description

Thermafiber® RainBarrier® insulation provides thermal control, fire-resistive characteristics, acoustical control, vapour permeance, and the ability to drain water from a wall cavity system. All Thermafiber® RainBarrier® products are non-combustible and compatible with common wall ties, adhesives, and air barrier systems.


Features

• Mold-resistant, non-deteriorating, and inorganic as tested

to ASTM C1338

• Repels and drains water

• UV-resistant

• Helps conserve energy and reduce greenhouse gas emissions

• Mineral wool is non-combustible as tested to CAN/ULC-S114

• Enhances acoustical performance

• Minimum 70% recycled content1

• Contributes to credits in several green building programs, such as LEED® and Green Globes®


Standards, Codes Compliance

• CCMC Evaluation Listing No. 14060-L

• CAN/ULC-S702.1, Standard for Mineral Fibre Thermal Insulation for Buildings, Type I

• ASTM C612, Mineral Fibre Block and Board Thermal Insulation, Types IA, IB, II, III, IVA, IVB


Certifications and Sustainable Features

• Verified by ICC-ES to contain a minimum of 70% recycled content. See ICC-ES Evaluation Report VAR-1025 at icc-es.org.

• Environmental Product Declaration (EPD) has been certified by UL Environment. For more information, visit ul.com/epd.

• Health Product Declaration (HPD).


Availability

Thickness: 25 mm (1”) – 203 mm (8”)

Widths: 406 mm (16"), 609 mm (24”)

Lengths: 1219 mm (48”)

General information

Color

Brown

Material

Mineral wool

CMS

07 21 13.19 Mineral Board Insulation

Primary
07 21 13 Board Insulation

Specification data - Mineral Board Insulation

Sustainability data

Contains Red List materials

No

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

70 %

Third party certifications

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

1

IFC
-

1

Third party certifications

EPD

EPD

Thermafiber Mineral Wool - EPD

Literature

Owens Corning Enclosure Solutions

Owens Corning Enclosure Solutions

Owens Corning Enclosure Solutions - Thermal Bridging Guide

Owens Corning Enclosure Solutions - Thermal Bridging Guide

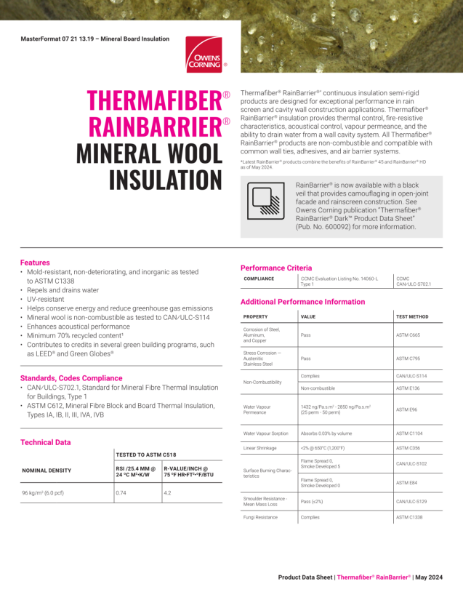

Thermafiber RainBarrier Mineral Wool Insulation Data Sheet
