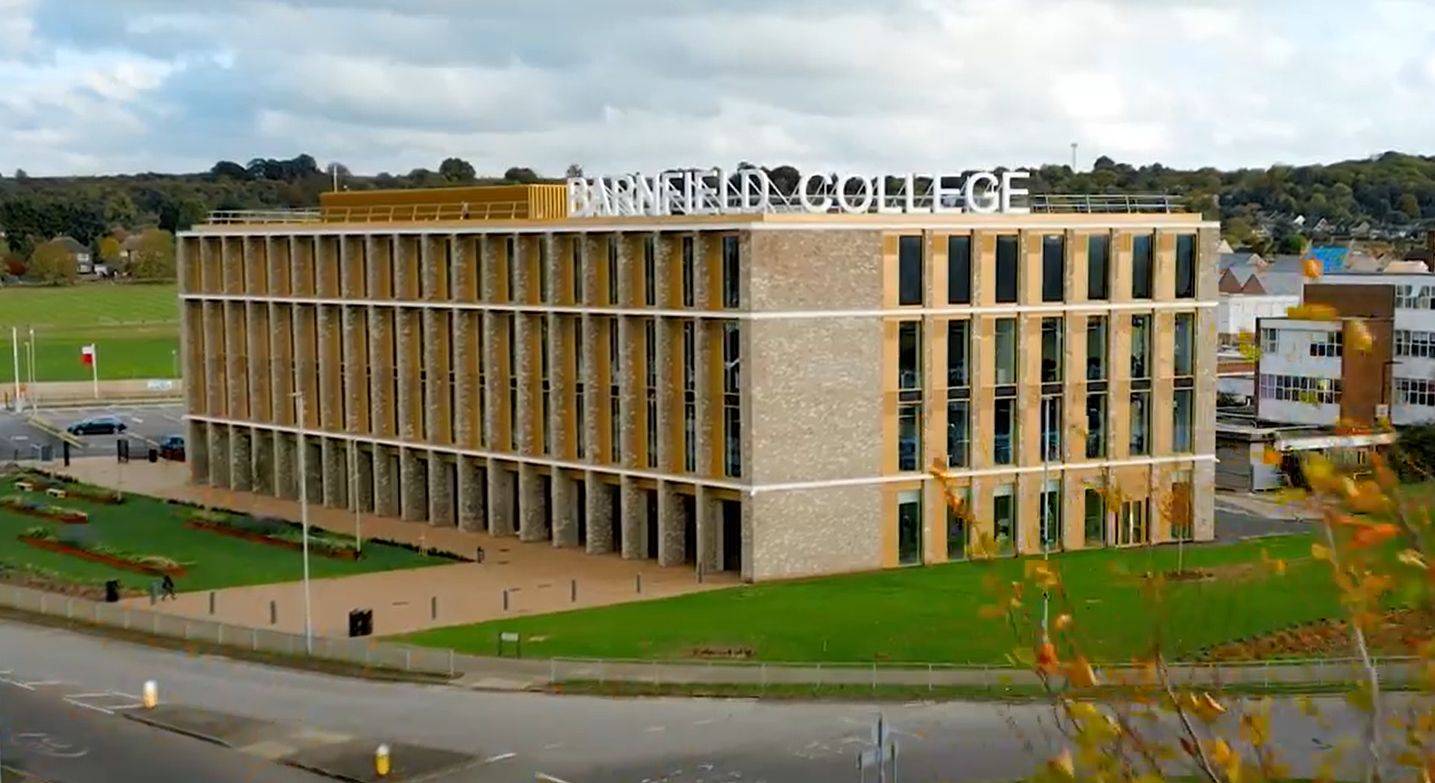

Barnfield College

OVERVIEW

This impressive 115m² Series 3 platform was effectively designed to meet both functional and architectural objectives; incorporaing Soundshield Screens, to meet acoustic requirements, with custom vertical fins in a gold pearl finish to comply with the architect’s vision. The Series 3 Platform provided an ideal solution for neatly and aesthetically mounting and screening HVAC equipment, effectively concealing mechanical services without the need for roof penetrations, whilst enhancing, rather than compromising, on visual appeal.

Key features

- Series 3 platform for a secure, non-penetrating rooftop solution.

- Flatscreen panels for enclosing and protecting equipment.

- Vertical fins for a visually striking artistic flair.

- Soundshield screens for effectively attenuating sound.

- Conforms to BS EN 516 2006 and BS EN 1090-3 2008

Installation

The installation was completed in just three days with a team of 4 men; demonstrating the speed and calculated efficiency of our modular plant deck system. This rapid turnaround was made possible by the pre-engineered design, which was delivered flat-packed to site with clear, easy-to-follow assembly instructions. The streamlined installation process minimized disruption to other site activities while maximizing on-site efficiency. The freestanding nature of the Series 3 Platform eliminated the need for heavy structural works or roof penetrations, allowing for a fast, clean, and safe setup.

Design

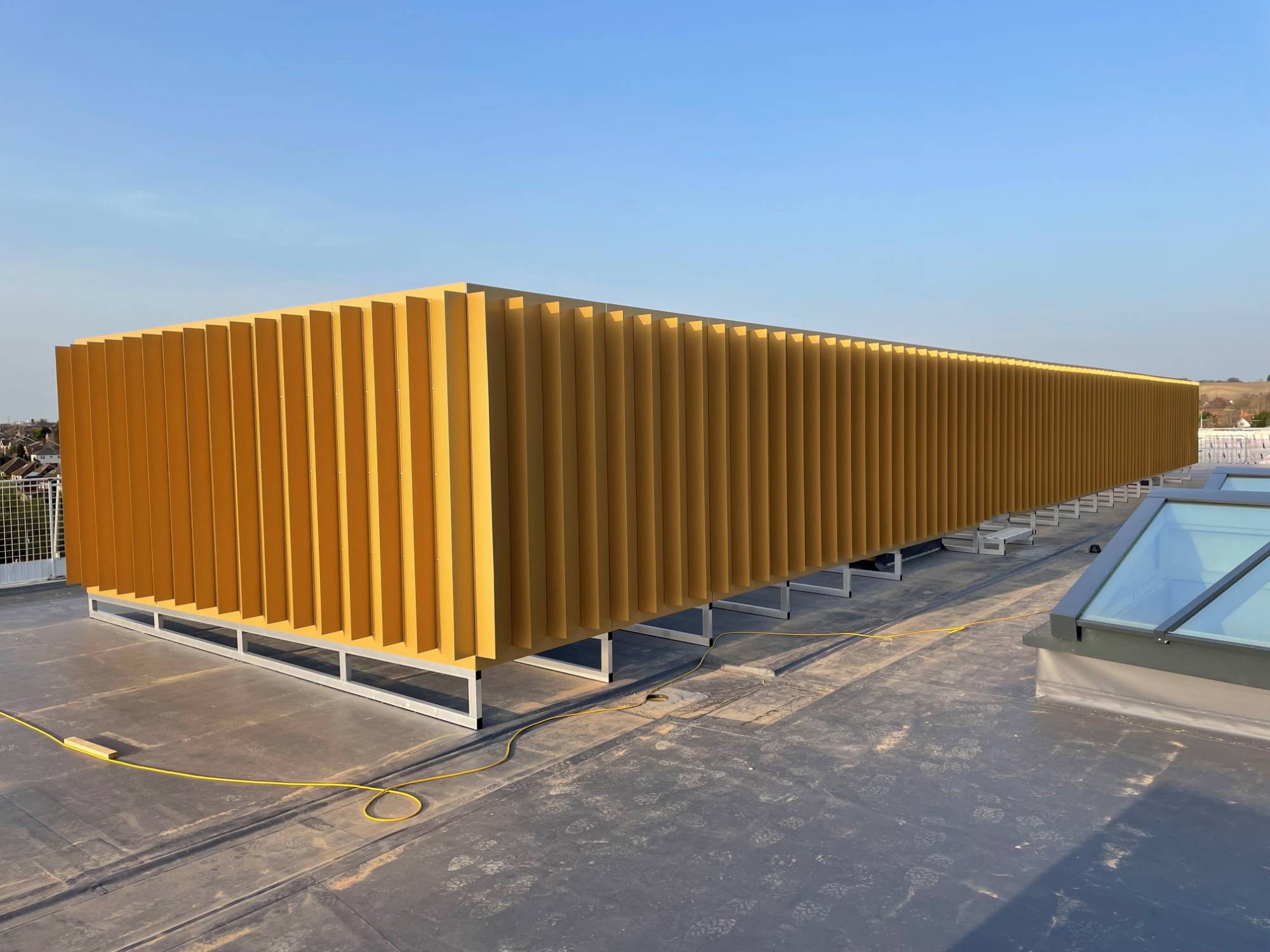

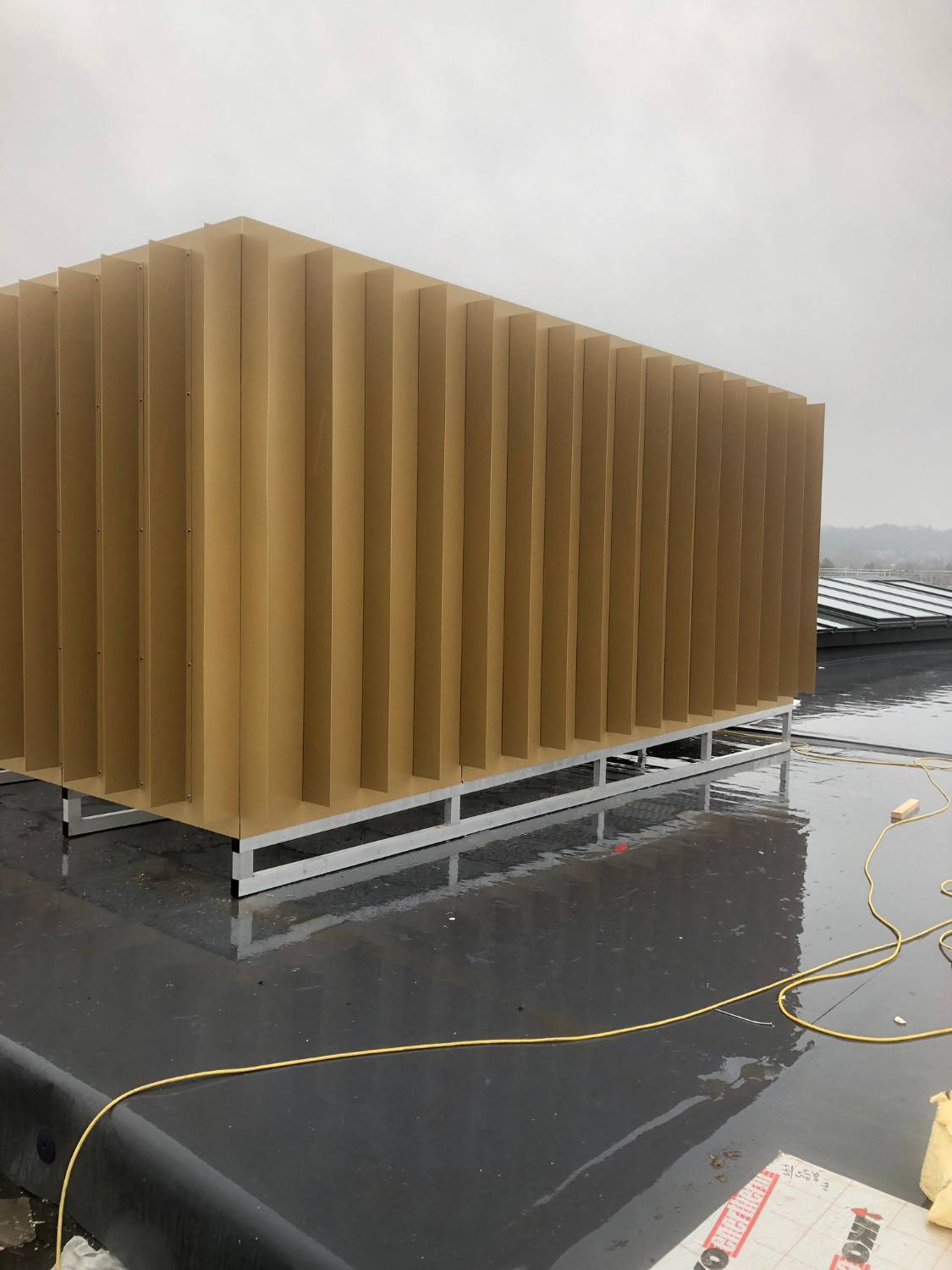

Developed in-house by our design team, the platform incorporated Soundshield Screens, to meet acoustic requirements, with custom vertical fins to comply with the architect’s vision. The standout feature of this installation was the gold pearl-coated vertical fins, creating a subtle shadowing effect, complementing the building’s façade. More than just a practical structure, the platform became a key architectural feature, with a refined and intentional design approach.
