Case Study - Proteus Pro-Felt® - CO-OP Wembley

OVERVIEW

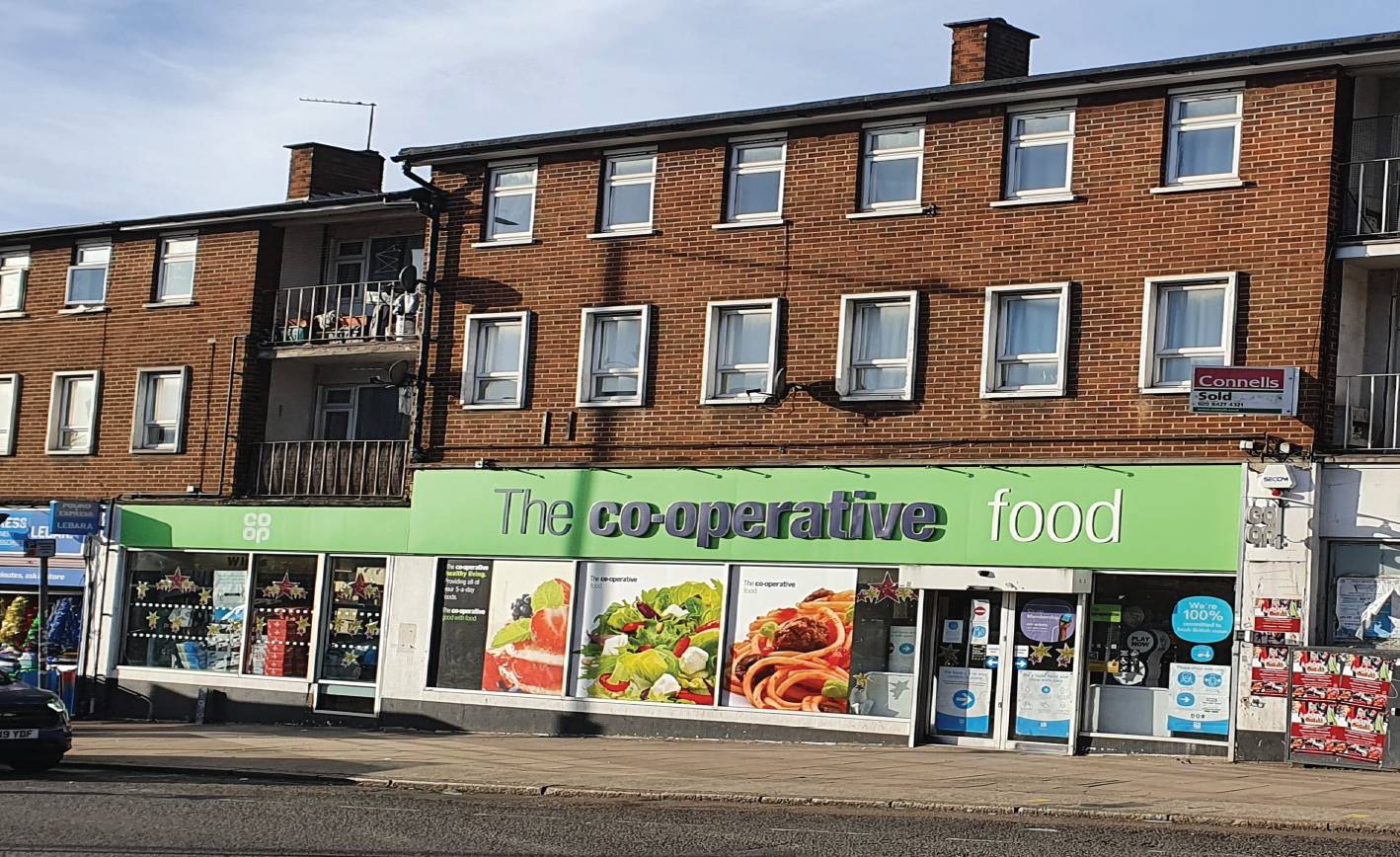

Proteus Waterproofing were contacted to assist with the roof refurbishment for the The Co-Operative Group, Wembley. The existing felt waterproofing and timber deck had failed allowing water ingress into the residential building below. Upon further inspection, Proteus established that the existing roof lacked any insulation and therefore did not meet current Building Regulations. a Proteus Pro Felt® system was specified as a competitive and cost effective waterproofing solution.


High Performance Waterproofing

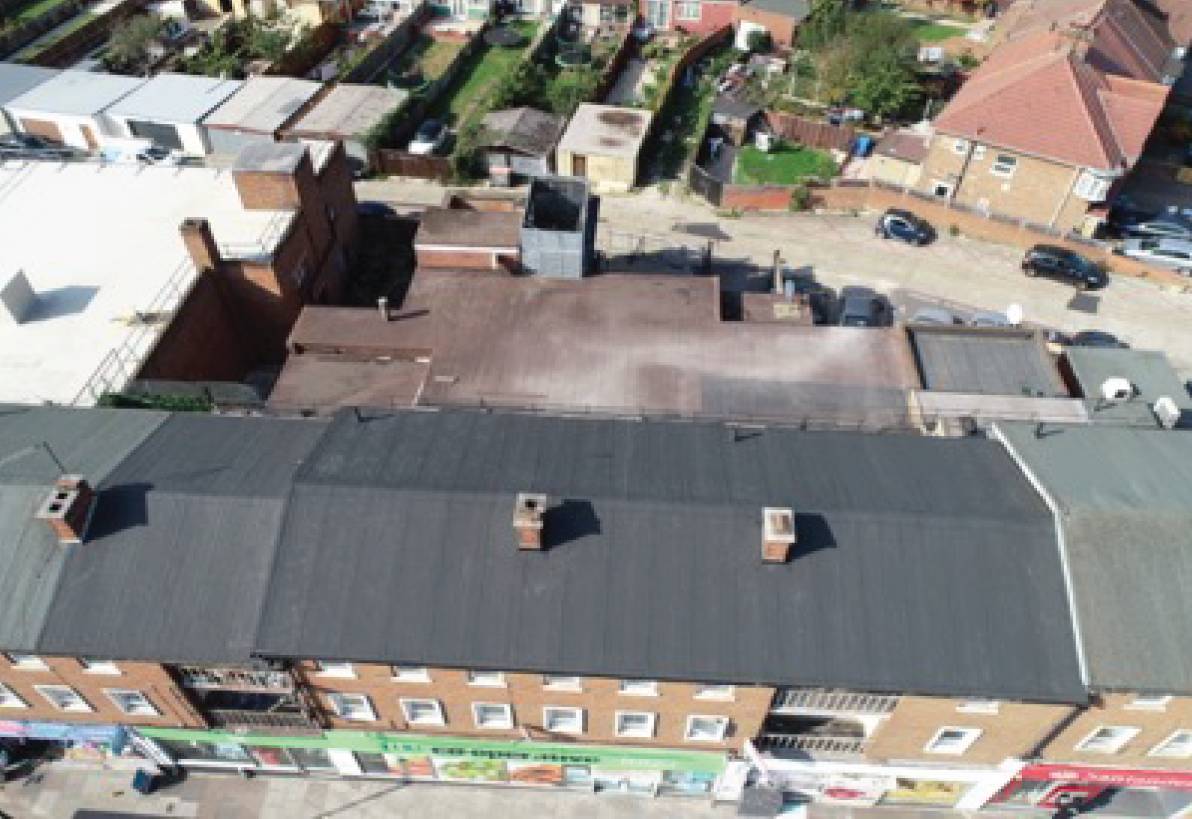

The roof coverings and timber decking had to be removed. A new 18mm ply wood deck was installed to the roof pitches before a high performance Proteus Pro Felt® system could be laid. This incorporated 120mm Proteus Pro-Therm® insulation to ensure all current building regulations were met. Due to the 45 degree pitch of both the front and rear roofs, Proteus needed to design a fixing method to ensure the felt and insulation did not slip in the warmer weather. Proteus Waterproofing worked closely with the Proteus Approved Contractor, to ensure the project was delivered to a high standard.


Health & Safety

When working on public buildings, safety is always of utmost importance. Proteus Pro-Felt® Self Adhesive Mineral Capsheet has the highest European Fire Rating, BROOF(t4), making it the ideal felt to use on public building as the risks to operatives and members of the public are greatly reduced. All Proteus Waterproofing specifications promote fire safe installation methods conforming to the industry lead Safe2Torch guidelines.


Long Term Performance

Proteus Pro-Felt® is a High-Performance range of bituminous membrane system, tested to perform in extreme temperatures and weather conditions. It has class leading modified bitumen content which allows the flexible membrane to move with the building and ensure long term durability and performance with guarantees available up to 25 years.
