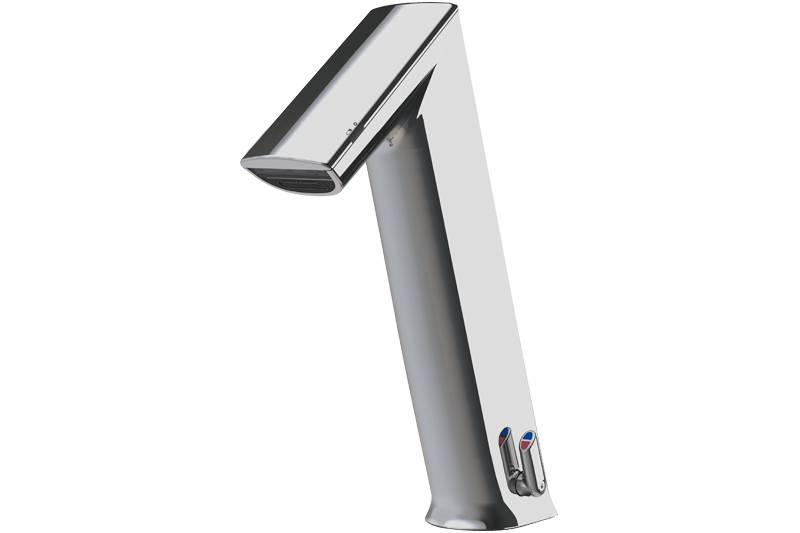

CONTI+ Ultra Lavatory Faucets - GH (High) Range, Chrome, with IR-sensor, G1/2, w/o Drain  Assembly  - Touchless, Electronically Controlled
CONTI+ Ultra Lavatory Faucets - GH (High) Range, Chrome, with IR-sensor, G1/2, w/o Drain  Assembly  - Touchless, Electronically Controlled
CONTI+ Ultra Lavatory Faucets - GH (High) Range, Chrome, with IR-sensor, G1/2, w/o Drain  Assembly  - Touchless, Electronically Controlled

Verified 14 days ago

Ecoprod Technique

Verified 14 days ago

Ecoprod Technique

Verified 14 days ago

Ecoprod Technique
Summary
Range of tall (252 mm high) touchless, electronically controlled lavatory faucets.
-
-
Application

Touchless, electronically controlled lavatory faucets.

-
-
Description

Range of 252 mm high touchless, electronically controlled lavatory faucets.


Features and benefits:

  • Part of the Ultra range (GS Small and GM medium models also available; specified separately).
  • Choice of power supply: battery, mains-operated, VARIOconnect or solar.
  • Chrome-plated as standard.
  • Water supply connections: Hot & cold (temperature mixing), with flexible high-pressure hoses.
  • Modular single-piece design without separate installation box, sturdy metal housing.
  • Reliable solenoid valve ROBUST (minimal level of water pressure surge). The solenoid valve can work from as little pressure as 0.3 bar.
  • Dual infrared sensors (with automatic setting feature), microprocessor.
  • Vandal-resistant aerator (replaceable with integrated tool).
  • Built-in filter.
  • TwistStop: integrated automatic shut-off to facilitate replacing or cleaning the filter (no shut-off to angle valves required).
  • One Tool Service / all system parts accessible from above.
  • 12 or 24-hour hygienic feature.
  • Compatible with CNX and Service APP: control of stored operational data, settings and control functions.
  • Compatible with Service APP: Control of stored operational data, settings and control functions.
  • Also available in a wall-mount version.
  • Solid tails are available for this range upon request.


Note: No drain assembly option is included; if this is a requirement, see the GM or GH ranges (specified separately).

-
-
Color
Silver
-
-
Finish
Chrome
-
-
Material
Brass
-
-
Shape
Other
-
-
Length
168 mm
-
-
Width
51 mm
-
-
Height
252 mm
-
-
Warranty description
Two year
-
-
SKU Code
163.000.11, 163.010.11, 163.016.11, 163.008.11, 163.068.11, 163.108.11
-
-

Specification

Classification data
Standards
To DIN EN 200.
-
-
Approvals
CE marked.
-
-
Form
Automatic-action taps (touchless), 252 mm high.
-
-
Materials
-
-
-
Body
Brass.
-
-
Finish and colour
Chrome-plated.
-
-
Flow rate (maximum)
5.7 L/minute at 3 bar.
-
-
Water supply temperature (maximum)
80°C.
-
-
Integral accessories
IR sensor; flexible high-pressure hoses.
-
-

Additional properties

Accessories
-
-
-
Power supply
4 x 1.5 V alkaline AA batteries.
-
-
Connections
Angle valve: G 1/2".
-
-

Sustainability data

Contains Red List materials
No
-
-
Country of material origin
Switzerland
-
-
Country of product manufacture
Switzerland
-
-
Material
Brass
-
-
Recyclability
100%
-
-
