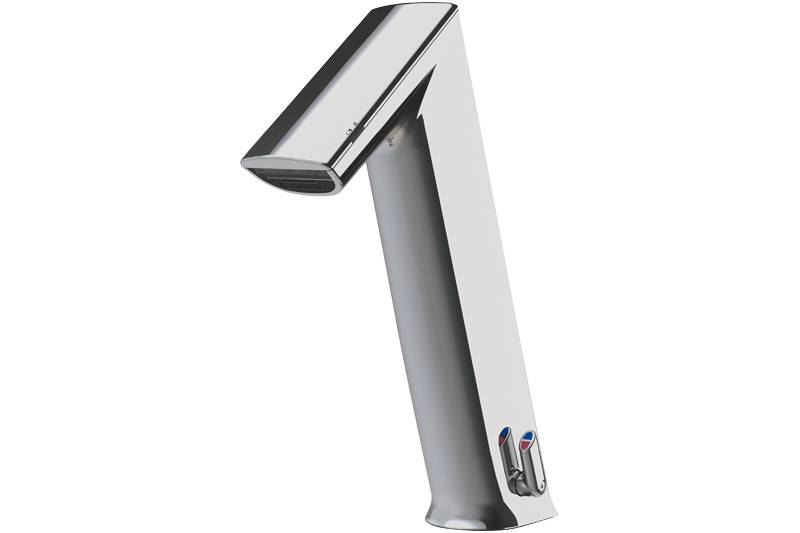

CONTI+ Ultra Lavatory Faucets - GH (High) Range, Chrome, with IR-sensor, G1/2, w/o Drain Assembly - Touchless, Electronically Controlled
Verified by manufacturer 5 months ago
163.000.11 - GH10, battery, temperature mixing
163.000.11 - GH10, battery, temperature mixing
Range of tall (252 mm high) touchless, electronically controlled lavatory faucets.
Application
Touchless, electronically controlled lavatory faucets.
Description
Range of 252 mm high touchless, electronically controlled lavatory faucets.
Features and benefits:
- Part of the Ultra range (GS Small and GM medium models also available; specified separately).
- Choice of power supply: battery, mains-operated, VARIOconnect or solar.
- Chrome-plated as standard.
- Water supply connections: Hot & cold (temperature mixing), with flexible high-pressure hoses.
- Modular single-piece design without separate installation box, sturdy metal housing.
- Reliable solenoid valve ROBUST (minimal level of water pressure surge). The solenoid valve can work from as little pressure as 0.3 bar.
- Dual infrared sensors (with automatic setting feature), microprocessor.
- Vandal-resistant aerator (replaceable with integrated tool).
- Built-in filter.
- TwistStop: integrated automatic shut-off to facilitate replacing or cleaning the filter (no shut-off to angle valves required).
- One Tool Service / all system parts accessible from above.
- 12 or 24-hour hygienic feature.
- Compatible with CNX and Service APP: control of stored operational data, settings and control functions.
- Compatible with Service APP: Control of stored operational data, settings and control functions.
- Also available in a wall-mount version.
- Solid tails are available for this range upon request.
Note: No drain assembly option is included; if this is a requirement, see the GM or GH ranges (specified separately).
General information
Color | Silver |
Finish | Chrome |
Material | Brass |
Shape | Other |

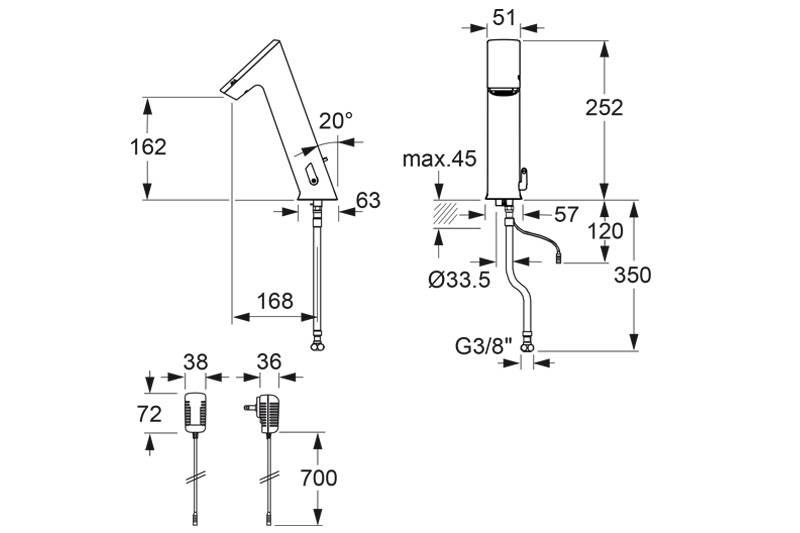

Length | 168 mm Guidance for specification option: Water supply to spout. Consult manufacturer for further details. |
Width | 51 mm |
Height | 252 mm Guidance for specification option: Visible faucet height. Basin to spout height: 162 mm. |
Warranty description | Two year Guidance for specification option: Consult manufacturer for details. |
Uniclass | |
CAWS | N13/335 Washbasins N13/30 Washbasins |
Specification data - Washbasin taps
Standards | To DIN EN 200. |
Approvals | CE marked. |
Form | Automatic-action taps (touchless), 252 mm high.Guidance for specification option: Visible height only; consult manufacturer's literature for full details. Basin to spout height: 162 mm. |
Materials | |
Body | Brass. |
Finish and colour | Chrome-plated. |
Flow rate (maximum) | 5.7 L/minute at 3 bar.Guidance for specification option: Operating pressure: 0.3–10 bar. Manufacturer guidanceCan be adjusted to 1.9 L/minute with selected accessories - consult manufacturer for details. |
Water supply temperature (maximum) | 80°C. |
Integral accessories | IR sensor; flexible high-pressure hoses.Guidance for specification option:
|
Accessories | Guidance for specification option: A range of accessories is available; consult manufacturer for options and insert requirements or omit. Manufacturer guidanceA comprehensive list of replacement parts are also available; consult manufacturer for details. |
Power supply | 4 x 1.5 V alkaline AA batteries. Guidance for specification option: Lifetime up to four years. |
Connections | Angle valve: G 1/2". |
Sustainability data
Contains Red List materials | No |
Country of material origin | Switzerland |
Country of product manufacture | Switzerland |
Material | Brass |
Recyclability | 100% |
