Summary
Sensor wave operated, concealed single or double flush cistern.
Sensor wave operated, concealed single or double flush cistern.
Application
Compatible with all SanCeram back to wall and wall hung WCs.
Compatible with all SanCeram back to wall and wall hung WCs.
Description
Concealed single or double flush cistern. Thomas Dudley sensor, wave operation and battery powered.
Features and benefits:
- Effective flush volume of 4.5 litre from a 6 litre dual flush.
- 6 litre flush can be quickly and easily converted to 5 or 4 litre single flush before or after installation.
- Supplied pre-assembled for quick and easy installation.
- Internal overflow warning.
- Top access.
- Side inlet.
- Compact design fits neatly into 150 mm ducts.
- Supplied with 390 x 290 mm push-fit flush pipe.
- WRAS approved flushing and inlet valve.
- Sensor Features

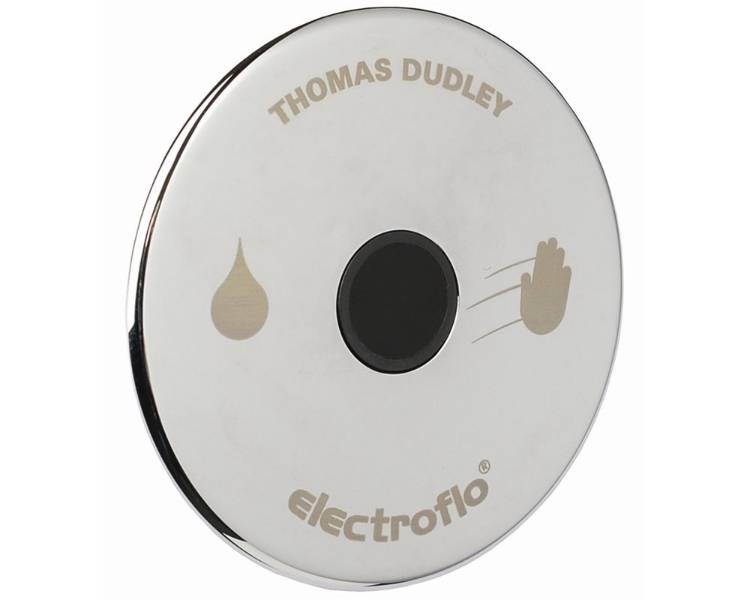

- Sensor surround is 100 mm diameter with operating instructions.
- Compact control box fits neatly onto the rear panel into which the sensor is installed.
- 400 mm long sensor cable.
- Powered by 4 x AA batteries
- Chrome effect finish.
- Manufactured under BS EN IS0 9001 and BS EN ISO 14001.
- Approved by the European Water Label Scheme.
- Optional battery to mains converter - CIST110
Concealed single or double flush cistern. Thomas Dudley sensor, wave operation and battery powered.
Features and benefits:
- Effective flush volume of 4.5 litre from a 6 litre dual flush.
- 6 litre flush can be quickly and easily converted to 5 or 4 litre single flush before or after installation.
- Supplied pre-assembled for quick and easy installation.
- Internal overflow warning.
- Top access.
- Side inlet.
- Compact design fits neatly into 150 mm ducts.
- Supplied with 390 x 290 mm push-fit flush pipe.
- WRAS approved flushing and inlet valve.
- Sensor Features
- Sensor surround is 100 mm diameter with operating instructions.
- Compact control box fits neatly onto the rear panel into which the sensor is installed.
- 400 mm long sensor cable.
- Powered by 4 x AA batteries
- Chrome effect finish.
- Manufactured under BS EN IS0 9001 and BS EN ISO 14001.
- Approved by the European Water Label Scheme.
- Optional battery to mains converter - CIST110
Color
Silver
Silver
Finish
Chrome
Chrome
Material
High density polystyrene
High density polystyrene
Shape
Circle
Circle
Width
100 mm
100 mm
Warranty description
Five year
Five year
SKU Code
CIST108, CIST109
CIST108, CIST109
Specification
Classification data
Standard
To BS EN IS0 9001 and BS EN ISO 14001.
To BS EN IS0 9001 and BS EN ISO 14001.
Approvals
European Water Label Scheme and Water Regulations Approval Scheme (WRAS)-approved.
European Water Label Scheme and Water Regulations Approval Scheme (WRAS)-approved.
Form
Concealed.
Concealed.
Operation
Automatic, sensor-operated.
Automatic, sensor-operated.
Materials
-
-
Body
High density polystyrene.
High density polystyrene.
Capacity
6 L.
6/4 L dual flush.
Water supply, overflow and outlet holes
-
-
Water supply
Side inlet.
Side inlet.
Outlet
Bottom outlet.
Bottom outlet.
Additional properties
Fixings
Once piece hanging bracket.
Once piece hanging bracket.
Power
CIST110 - Transformer for mains power (240 V).
CIST110 - Transformer for mains power (240 V).
