6L Cistern with Single or Double Sensor Flush
Verified by manufacturer 5 months ago
CIST109 - Dual Flush
CIST109 - Dual Flush
Sensor wave operated, concealed single or double flush cistern.
Application
Compatible with all SanCeram back to wall and wall hung WCs.
Description
Concealed single or double flush cistern. Thomas Dudley sensor, wave operation and battery powered.
Features and benefits:
- Effective flush volume of 4.5 litre from a 6 litre dual flush.
- 6 litre flush can be quickly and easily converted to 5 or 4 litre single flush before or after installation.
- Supplied pre-assembled for quick and easy installation.
- Internal overflow warning.
- Top access.
- Side inlet.
- Compact design fits neatly into 150 mm ducts.
- Supplied with 390 x 290 mm push-fit flush pipe.
- WRAS approved flushing and inlet valve.
- Sensor Features

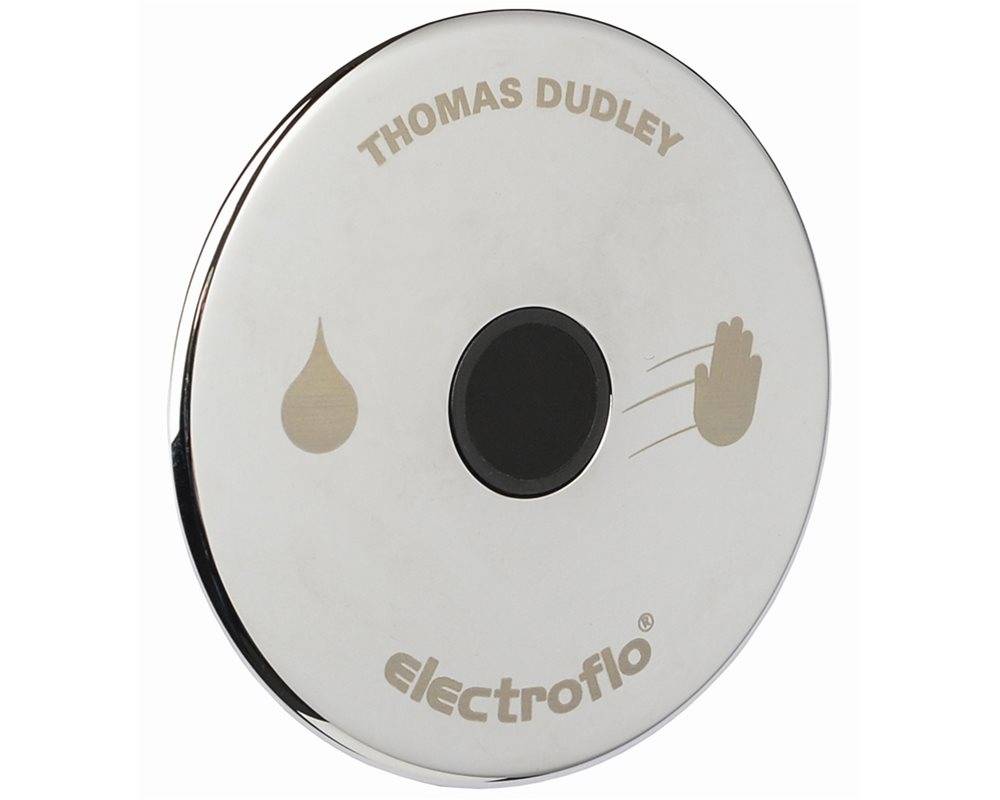

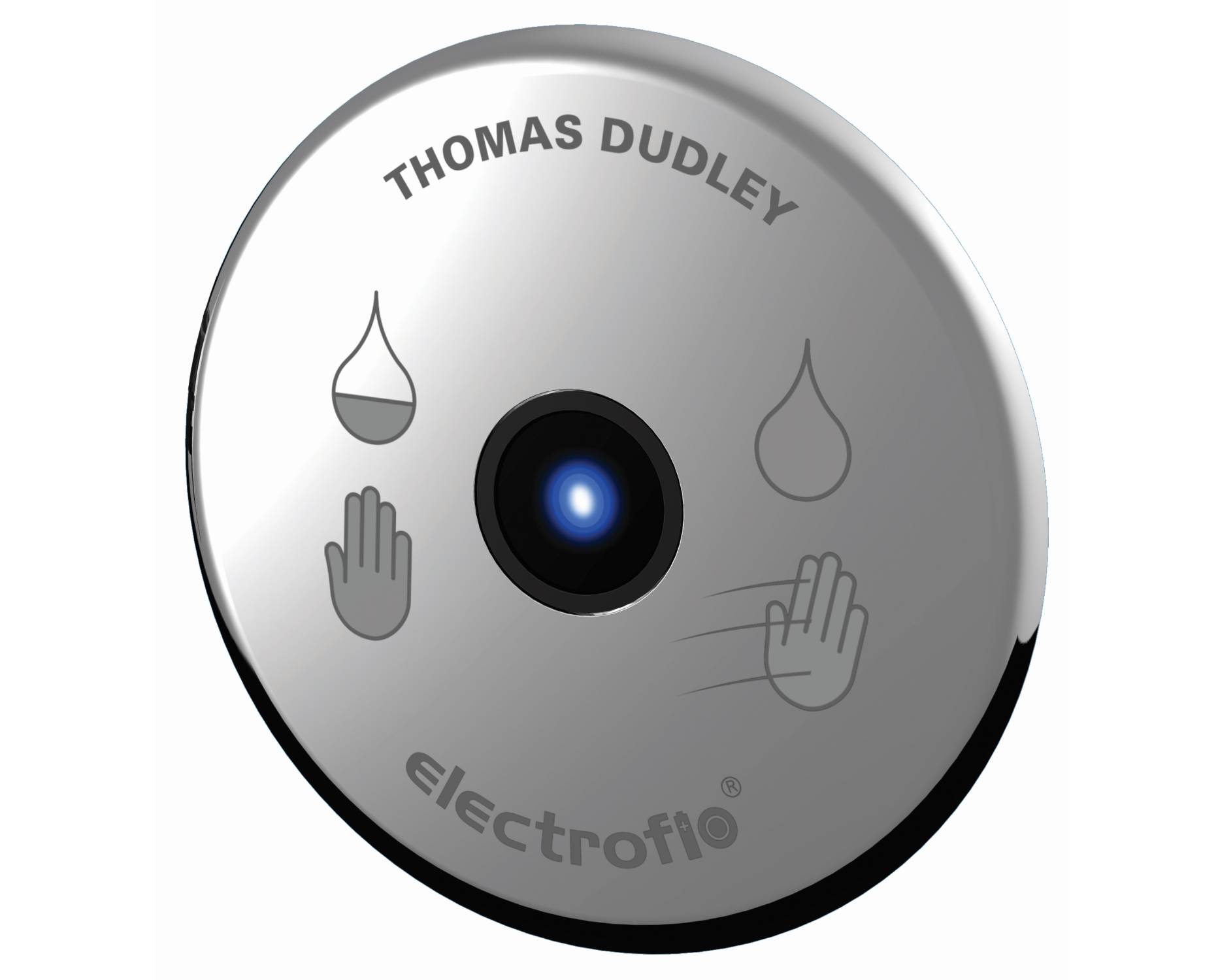

- Sensor surround is 100 mm diameter with operating instructions.
- Compact control box fits neatly onto the rear panel into which the sensor is installed.
- 400 mm long sensor cable.
- Powered by 4 x AA batteries
- Chrome effect finish.
- Manufactured under BS EN IS0 9001 and BS EN ISO 14001.
- Approved by the European Water Label Scheme.
- Optional battery to mains converter - CIST110
General information
Color | Silver |
Finish | Chrome |
Material | High density polystyrene |
Shape | Circle |
Width | 100 mm |
Warranty description | Five year |
Uniclass | |
CAWS | N13/15 Urinals and cisterns N13/75 Installing cisterns N13/300 WCs and cisterns |
Specification data - WC cisterns
Standard | To BS EN IS0 9001 and BS EN ISO 14001. |
Approvals | European Water Label Scheme and Water Regulations Approval Scheme (WRAS)-approved. |
Form | Concealed. |
Operation | Automatic, sensor-operated. |
Materials | |
Body | High density polystyrene. |
Capacity | 6/4 L dual flush. |
Water supply, overflow and outlet holes | |
Water supply | Side inlet. |
Outlet | Bottom outlet. |
Fixings | Once piece hanging bracket. |
Power | CIST110 - Transformer for mains power (240 V). |
