Summary

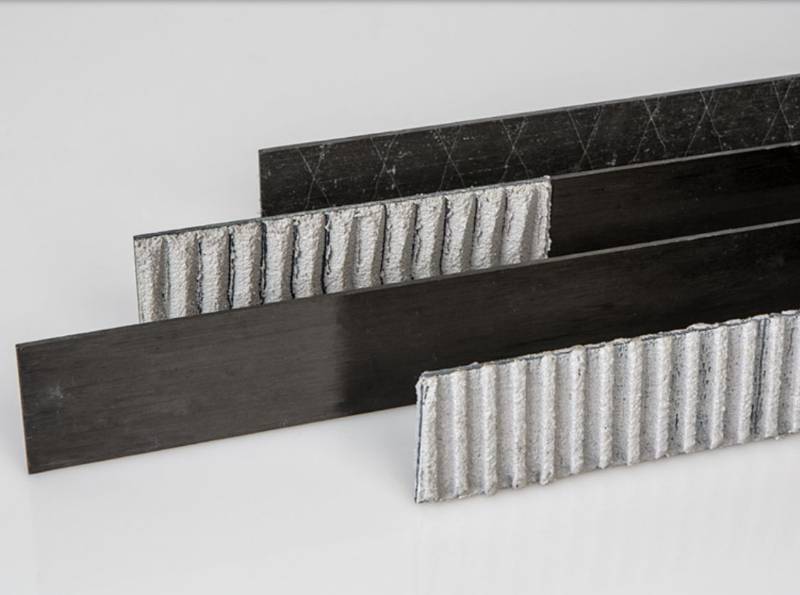

Carbon fibre plates for strengthening a range of structures.
-
-
Color
Black
-
-
Finish
Other
-
-
Material
Carbon fibre
-
-
Shape
Other
-
-
Width
10 mm, 15 mm, 20 mm, 50 mm, 60 mm, 80 mm, 90 mm, 100 mm, 120 mm, 150 mm, Bespoke
-
-
Height
1.2 mm, 1.4 mm, 2.5 mm, 2.6 mm, 3 mm, Bespoke
-
-
Specification
Fibre type
Carbon fibre.
-
-
Performance characteristics
-
-
-
Tensile strength
3500 N/mm².
-
-
Modulus of elasticity
210 000 N/mm².
-
-
Elongation at break
1.7%.
-
-
Structural adhesive
-
-
-
Glass transition temperature
>100°C.
-
-
Shelf life
Unlimited.
-
-
Product characteristics
-
-
-
Fibre volume
>68%.
-
-
Density
1.6 g/cm³.
-
-
Dimensions
-
-
-
Width
60 mm.
-
-
Resin
-
-
-
Resin type
Epoxy.
-
-
UV protection
Not required
-
-
Additional properties
Area
Cross section: 84 mm².
-
-
Fixing
Sikadur®-30 epoxy resin-based adhesive., Other.
-
-
Thickness
1.4 mm.
-
-
Sustainability data
Material
Carbon fibre
-
-
