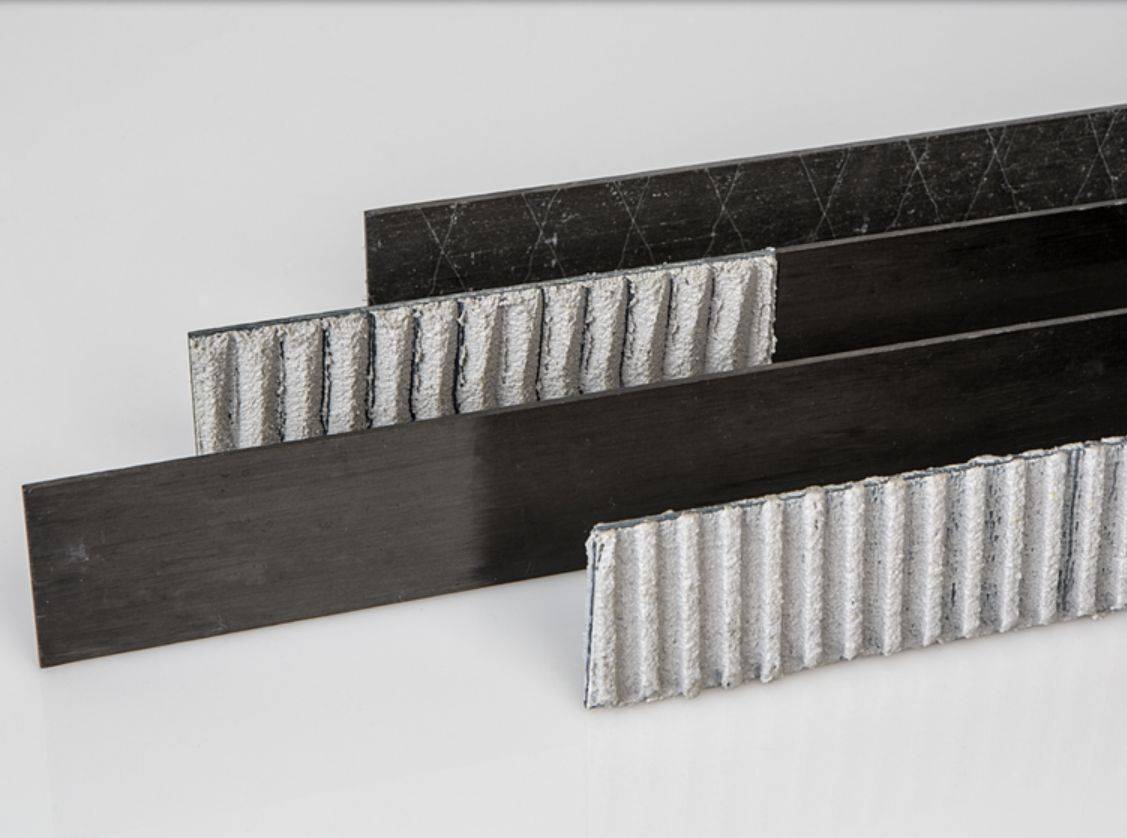

Sika® CarboDur - Carbon Fibre Plates
Verified by manufacturer 6 months ago
Sika® CarboDur® M, type 614
Sika® CarboDur® M, type 614
Carbon fibre plates for strengthening a range of structures.
Application
Sika® CarboDur® systems are used to improve, increase or repair the performance and resistance of structures for:
- Increased load carrying capacity.
- Damage to structural elements.
- Improvement of serviceability and durability.
- Change of the structural system.
Consult manufacturer's literature for further details.
Structure types:
- Strengthening concrete, timber, masonry, steel and fibre reinforced polymer structures (Sika® CarboDur® M and CarboDur® S).
- Near surface mounted structural strengthening of concrete, timber and masonry (Sika® CarboDur® S NSM).
- Strengthening metallic structures Sika® CarboDur® Plate UHM).
Description
Carbon fibre plates for strengthening a range of structures.
Features and benefits:
Sika® CarboDur® M and CarboDur® S plates:
- Pultruded carbon fibre-reinforced polymer (CFRP) laminates, designed for strengthening concrete, timber, masonry, steel and fibre reinforced polymer structures.
- To be bonded onto the structure as externally bonded reinforcement using Sikadur®-30 epoxy resin based adhesive for normal temperatures during application and/ or service.
Sika® CarboDur® S NSM:
- Pultruded carbon fibre-reinforced polymer (CFRP) flat plate, primarily designed for near surface mounted (NSM) structural strengthening of concrete, timber and masonry.
- The plate is bonded and fully encapsulated into surface slots using a Sika structural adhesive which is selected based on the design, application and environmental conditions.
Sika® CarboDur® Plate UHM:
- Ultra high modulus plates are high performance, corrosion resistant carbon fibre plates for strengthening metallic structures. The plates are manufactured to individual project dimensional specifications.
- When used in conjunction with SikaDur®-30 structural epoxy adhesive, they form the Sika CarboDur® Ultra High Modulus (UHM) Plate System.
General information
Color | Black |
Finish | Other |
Material | Carbon fibre Guidance for specification option: Carbon-fibre-reinforced with an epoxy matrix. |
Shape | Other |
Width | 10 mm 15 mm 20 mm 50 mm 60 mm |
Height | 1.2 mm 1.4 mm 2.5 mm 2.6 mm 3 mm |
Uniclass | |
CAWS | E30/240 Proprietary prefabricated reinforcement F30/265 Support systems G10/135 Hollow steel sections G12/330 Proprietary metal members G20/230 Structural softwood (strength class not specified) G20/210 Structural softwood (graded direct to strength class) G20/250 Structural hardwood (graded direct to strength class) G20/260 Structural hardwood (strength class not specified) G20/345 Proprietary structural wood composite G20/336 Structural wood composite G20/7 Structural hardwood G20/5 Structural softwood G10/17 General steel sections G20/17 Structural wood composite G12/30 Proprietary members |
Specification data - Fibre-reinforced polymer plates
Classification data | |
Fibre type | Carbon fibre. |
Performance characteristics | |
Tensile strength | 3500 N/mm². |
Modulus of elasticity | 210 000 N/mm². |
Elongation at break | 1.7%. |
Structural adhesive | |
Glass transition temperature | >100°C. |
Shelf life | Unlimited. Guidance for specification option: Provided the storage requirements are met. |
Product characteristics | |
Fibre volume | >68%. |
Density | 1.6 g/cm³. |
Dimensions | |
Width | 60 mm. |
Resin | |
Resin type | Epoxy. |
UV protection | Not required |
Area | Cross section: 84 mm². |
Fixing | Sikadur®-30 epoxy resin-based adhesive. Guidance for specification option: For normal temperatures during application and/or service. Other. |
Thickness | 1.4 mm. |
Sustainability data
Material | Carbon fibre Guidance for specification option: Carbon-fibre-reinforced with an epoxy matrix. |
Literature
Product Data Sheet - Sika® CarboDur® S NSM
Product Data Sheet - Sika® CarboDur S
Product Data Sheet - Sika® CarboDur® Plate UHM
Product Data Sheet - Sika® CarboDur® M
