Luxe Clad

Luxe Clad

Safe, sustainable and compliant A1 rated aluminium façade cladding systems.

+44 (0)1423 611 100 Website

Certification bodies

Future proof your building with Luxe Clad A1 rated non-combustible pre-finished aluminium rainscreen cladding panels.


Luxe Clad specialises in manufacturing, and distributing a range of quality A1 rated façade products throughout the UK.


Luxe Clad A1 rated cladding panels, are non-combustible, high-impact resistant solid panels, providing exceptional durability and mechanical benefits. Mechanical fixing methods and no use of adhesives, providing true A1 rated non-combustible cladding systems.


Luxe Clad A1 cladding panels are prefinished which means they do not need fabrication prior to the coating process, unlike standard powder-coated systems. This means we are able to provide greater coating consistency, reduced lead times, reduced handling and transport, reduced damage and lower costs.


Luxe Clad A1 panels are designed to provide a solution that can be fabricated and installed as; cassette panels, pressed planks, castellated panels and flat riveted sheets with no oil-canning appearance. This offers a cost-effective A1 rated non-combustible and aesthetically pleasing alternative to other A2 rated panel systems.


Rainscreen cladding systems:

TFP – Through Fix Panel (CWCT tested).

TFC – Through Fix Cassette (CWCT tested).

SFC – Secret Fix Cassette (CWCT tested).

IPP – Interlocking Pressed Plank (CWCT tested).

CP – Castellated Panel (CWCT tested).



Insulated spandrel panels:

FS – Flat Spandrel Panel (A1 rated - EN 13501-1)

SS – Stepped Spandrel Panel (A1 rated - EN 13501-1)


Features and benefits:

Non-combustible – A1 rated to EN 13501-1 Fire classification of construction products.

Lightweight – Luxe Clad A1 is incredibly rigid and lightweight and is therefore also easy to install.

Extremely Flat – Low Surface Stress.

Versatile – Luxe Clad A1 panels can be custom designed into a wide range of rainscreen systems including; flat, cassette, pressed plank and castellated panels among others. In addition they can be perforated or curved in some applications making it a versatile design choice.

Maintenance – easy to maintain compared to polyester based coatings using a water rinse to clean.

High Durability – Luxe Clad A1 panels are highly durable and impact resistant and can be used in high-traffic areas.

Sustainability – 100% recyclable.

Paint System – Luxe Clad A1 use the highly recognised PVDF KYNAR 500, HYLAR 5000 and FEVE resin-based coatings, with more than 40 years of south Florida exposure testing, it is continuing to prove the superior quality of architectural coatings.

Warranty – up to a 40-year project warranty.



Infinite colour options available including:



Solid.

Metallic.

Sparkling.

Patina.

Corten.

Stone.

Brushed.

Wood.

Iridium.

Bespoke.

Products

View all products
ECO LUXE™ Low Carbon Solid Aluminium Cladding Panel

ECO LUXE™ Low Carbon Solid Aluminium Cladding Panel

Luxe Clad A1 FS - Insulated Flat Spandrel Panels

Luxe Clad A1 FS - Insulated Flat Spandrel Panels

Luxe Clad A1 SS - Insulated Stepped Spandrel Panels

Luxe Clad A1 SS - Insulated Stepped Spandrel Panels

Luxe Clad A1 TFC - Through Fix Cassette Cladding System - Rainscreen Cladding

Luxe Clad A1 TFC - Through Fix Cassette Cladding System - Rainscreen Cladding

Literature

View all literature

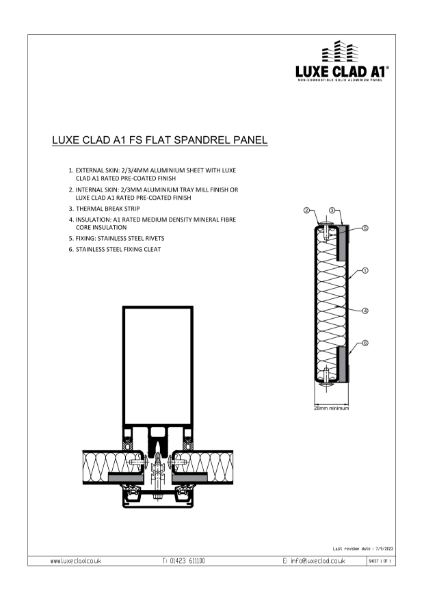

FS - Insulated Flat Spandrel Panels - Drawing

FS - Insulated Flat Spandrel Panels - Drawing

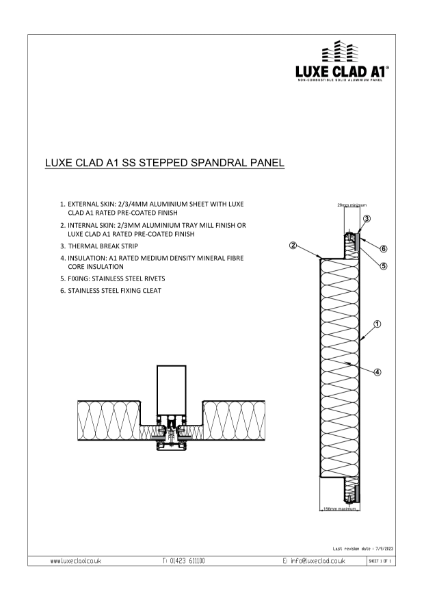

SS - Insulated Stepped Spandrel Panels - Drawing

SS - Insulated Stepped Spandrel Panels - Drawing

System Profiles & Structural Support Profiles

System Profiles & Structural Support Profiles

EVT 11 Brackets

EVT 11 Brackets
