11105/ 11109/ 10109/ Recessed GU10 Spots - Adjustable or Fixed Luminaires

Verified by manufacturer 14 hours ago

11105F/W Recessed adjustable trimless fire rated Dark light spot with GU10 lampholder

One Light UK Ltd Variant:

Recessed fixed or adjustable round GU10 downlights, with trimless, fire-rated and dark light options.

Jump to:
01992-445-101 Website

Application

Recessed ceiling luminaire, indoor use (10109F/W also suitable for outdoor use).

Description

Recessed fixed or adjustable round GU10 downlights, with trimless, fire-rated and dark light options.


Features and benefits:

  • Complies with EN 60598-1 and any other specific standards.

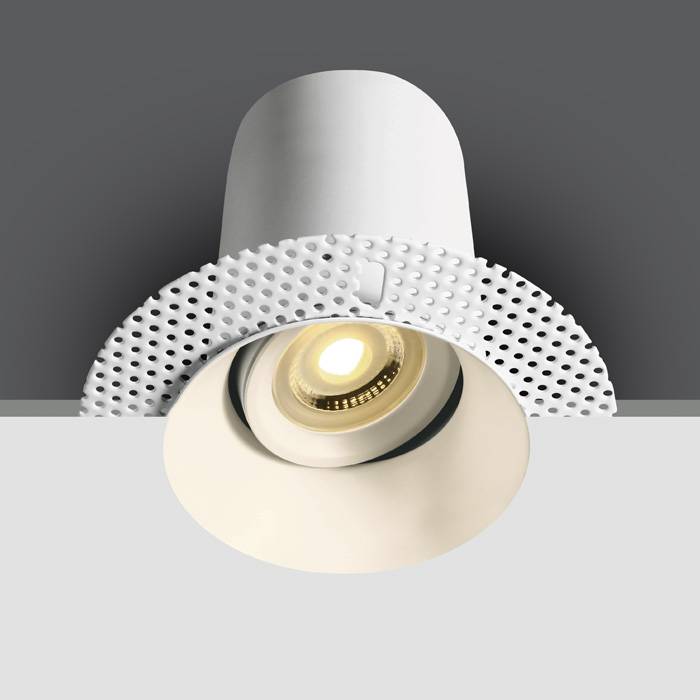

  • 11105F/W: Recessed adjustable trimless fire-rated dark light MR16 spot with GU10 lamp holder.

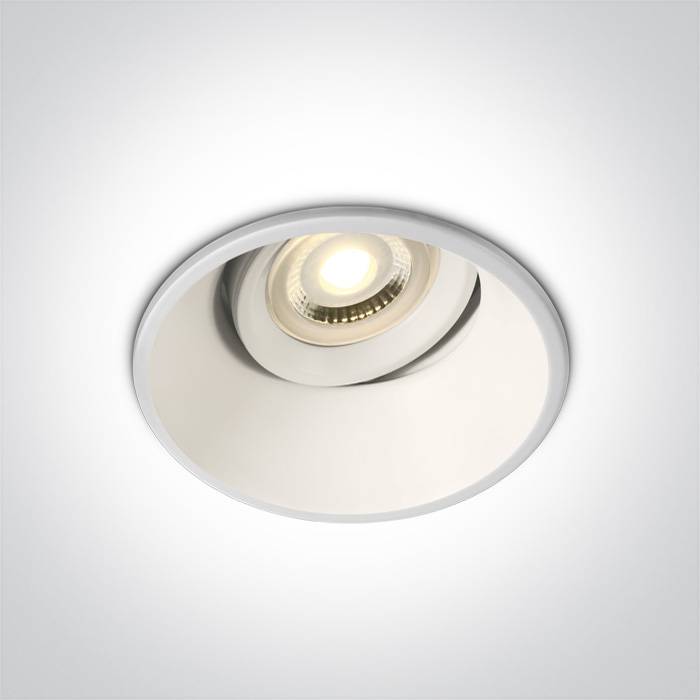

  • 11109FA/W: Recessed adjustable fire-rated dark light MR16 spot with GU10 lamp holder.
  • 11105UTR/W: Recessed trimless adjustable MR16 spot with GU10 lamp holder.
  • 10109F/W: Recessed dark light fire-rated MR16 spot with GU10 lamp holder.

General information

Color

White

Material

Metal

Shape

Circle

Length

85 mm

Guidance for specification option:

11105F/W, visible maximum diameter. Overall diameter: 125 mm.

10109F/W: Visible maximum diameter only.

92 mm

Guidance for specification option:

11109FA/W, visible maximum diameter.

90 mm

Guidance for specification option:

11105UTR/W, visible maximum diameter. Overall diameter: 150 mm.

Width

85 mm

Guidance for specification option:

11105F/W, visible maximum diameter. Overall diameter: 125 mm.

10109F/W: Visible maximum diameter only.

92 mm

Guidance for specification option:

11109FA/W, visible maximum diameter.

90 mm

Guidance for specification option:

11105UTR/W, visible maximum diameter. Overall diameter: 150 mm.

Height

126 mm

Guidance for specification option:

11105F/W.

117 mm

Guidance for specification option:

11109FA/W.

40 mm

Guidance for specification option:

11105UTR/W.

124 mm

Guidance for specification option:

10109F/W.

Warranty description

Five year

Uniclass

Pr_70_70_48_71 Recessed luminairesPrimary
Pr_70_70_48_82 Spotlights

CAWS

V90/510 General purpose luminaires

V90/510 Luminaires

Specification data - Recessed luminaires

Standards

To EN 60598-1.

Guidance for specification option:

And any other specific standards; consult manufacturer for details.

Luminaire description

Recessed adjustable trimless fire-rated dark light MR16 spot with GU10 lamp holder.

Guidance for specification option:

Requires 85 mm-diameter cut-out hole and 170 mm depth.

Classification

-

Ingress protection (minimum)

IP20.

Circumstances of use

Normal.

Nominal voltage

100–240 V a.c.

Guidance for specification option:

50/ 60 Hz.

Non-LED luminaires

-

Number of lamps

1.

Lamp properties

-

Wattage

10 W.

Beam angle

Dark light, adjustable.

Guidance for specification option:

Adjustable in one direction; consult manufacturer for details.
