30 cm Domino Induction Hobs

Verified by manufacturer 1 day ago

Siemens Home Appliances

Flex induction cooktop with powerBoost, increasing the power of an induction zone by up to 50%.

Jump to:
BOS
0344 8929021 Website

Application

For domestic applications.

Description

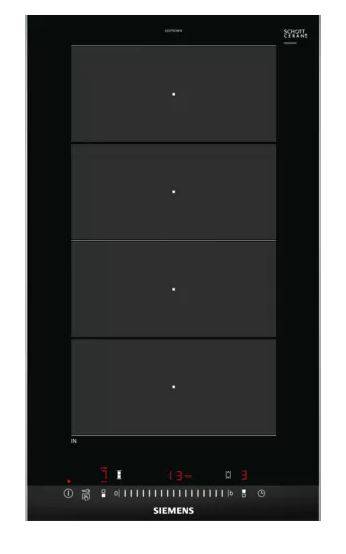

Ceramic flex induction cooktop, 30 cm in black.


Features and benefits:

  • The 30 cm wide cooktop is suitable for combining with other Domino or faceted design cooktops.
  • flexInduction – smart cooking zone that adapts to the cookware.
  • Allows the user to control the temperature by entering it directly or by moving the slider with a single finger - touchSlider control.
  • powerMove Plus enables intuitive control thanks to three heating zones with different temperatures, just by moving the pan.
  • powerBoost – increases the power of an induction zone by up to 50%.


Model:

  • EX375FXB1E: 60 cm flex induction, blue dual light slider control, two flex plus, frying sensor, cookConnect, Home Connect, studioLine black steel trim, 7.4 kW, improved flex features (auto join/split and transfer setting), top frame without front bevel.

General information

Color

Black

Material

Ceramic

Steel

Glass

Shape

Rectangle

Length

520 mm

Width

302 mm

Height

51 mm

Warranty description

Two year

Uniclass

Pr_40_70_24_07 Built-in electric hobsPrimary

CAWS

N12/330 Cooking equipment

N12/330 Cooking equipment

N11/360 Appliances

N11/40 Appliances

Specification data - Built-in electric hobs

Hob arrangement

Ceramic cooktop with flex induction zone.

Guidance for specification option:

flexInduction zone: use cookware of any shape or size anywhere within the 40 cm long zone.

  • Cooking zone middle: 210 mm, 200 mm, 2.2 kW (max. power 3.7 kW).
  • Cooking zone middle: 210 mm, 200 mm, 2.2 kW (max. power 3.7 kW).

Dimensions

-

Width (maximum)

302 mm.

Depth (maximum)

520 mm.

Rating

3.7 kW.

Electrical supply

220–240 V.

Material and finish

Ceramic black.

Features

Automatic safety cut-out.

Frequency

50-60 Hz.

Cable length

110 cm.

Manufacturer guidance

Length electrical supply cord.

Control

Touch slide controls.

Accessories

Not required.

HZ9TY010: Teppan Yaki.

HZ9SE060: Six pieces set.

HZ9SE040: Four pieces set.

HZ9SE030: Set of two pots and one pan.

Show more

Sustainability data

Material

Ceramic

Steel

Glass

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

1

IFC
-

1

Literature

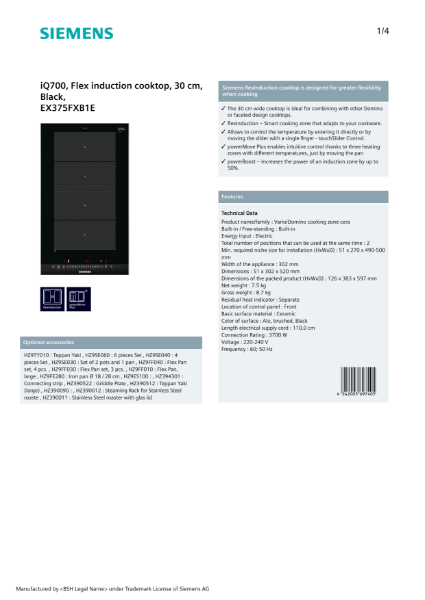

iQ700, Flex induction cooktop, 30 cm, Black, EX375FXB1E

iQ700, Flex induction cooktop, 30 cm, Black, EX375FXB1E
